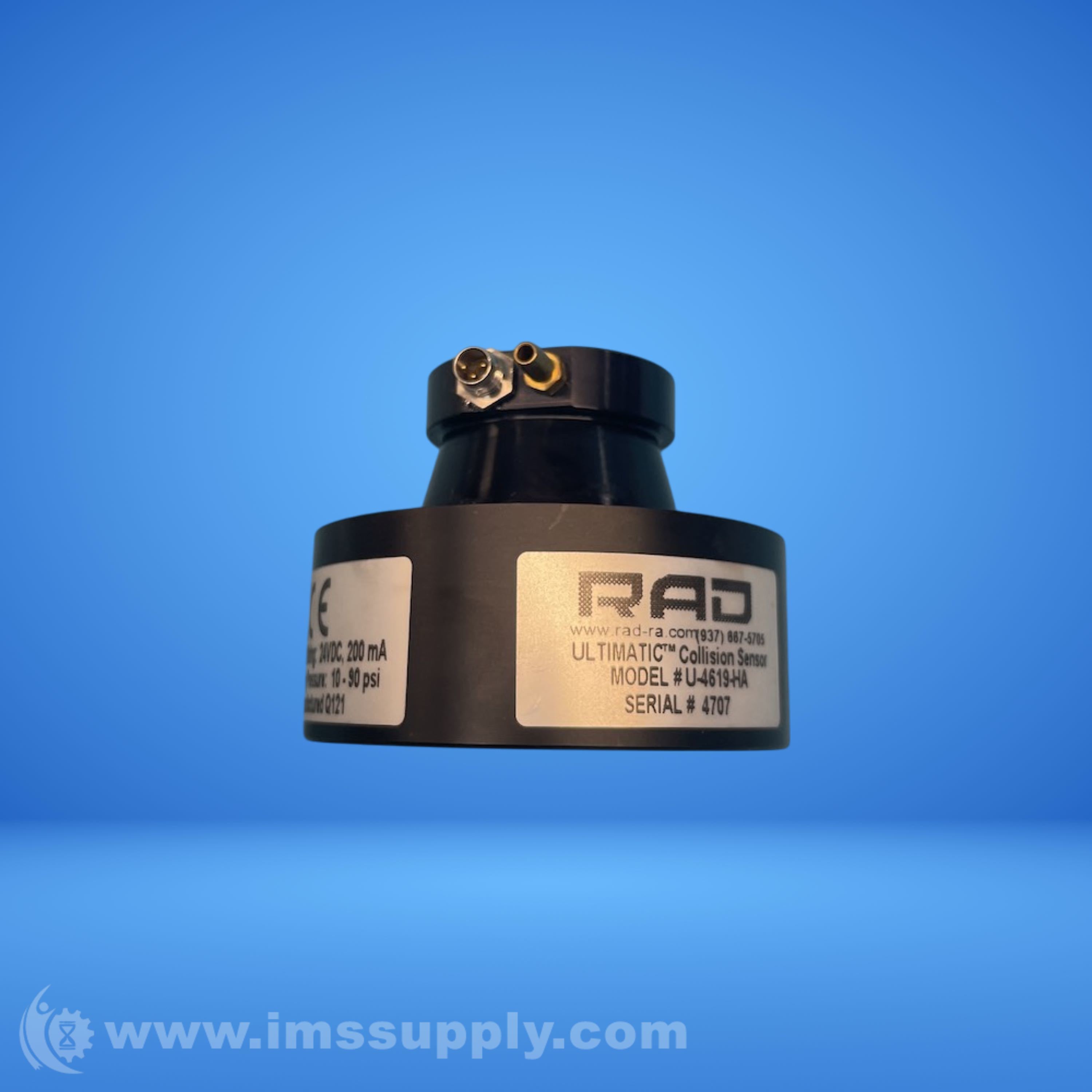

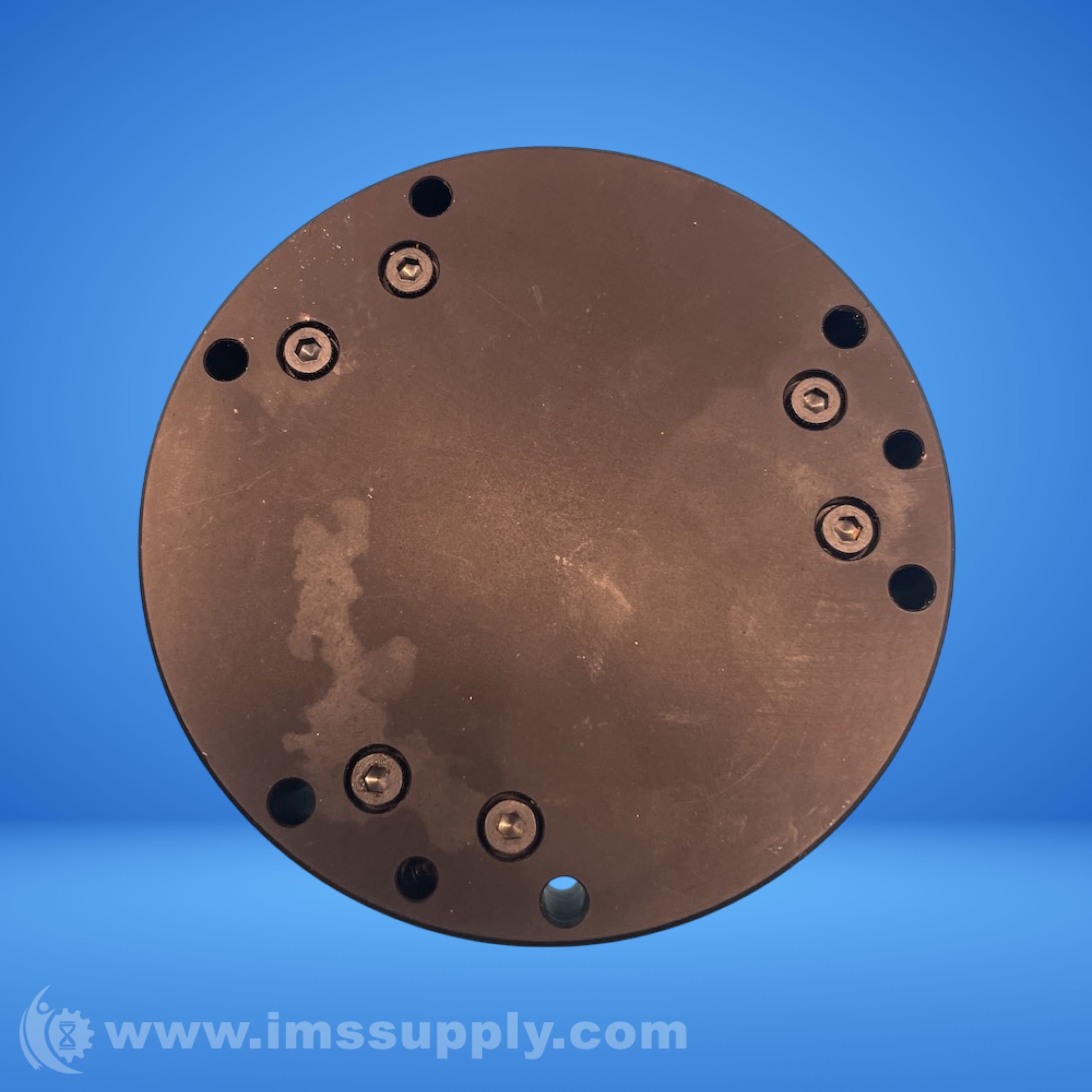

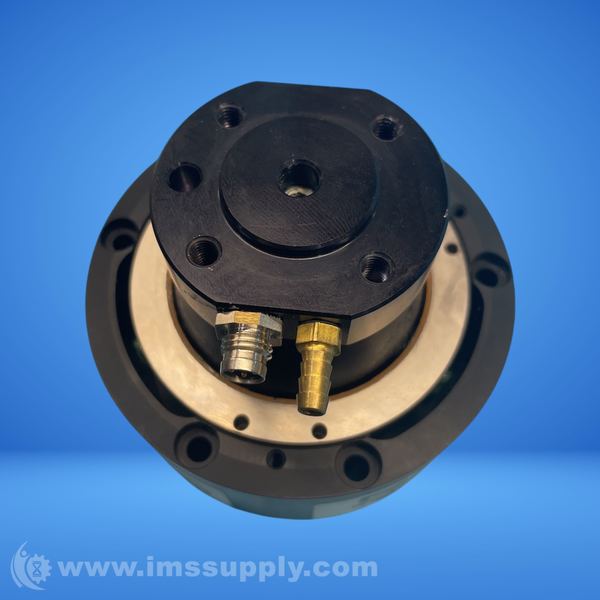

RAD-RA U-4619-HA PNEUMATIC COLLISION SENSOR
Quick Overview
Manufactured By: RAD-RA
Manufacturer Part Number: U-4619-HA
IMS Product Code: 2147263
Packaging: Sold Individually
Description:
RAD-RA U-4619-HA Pneumatic Collision Sensor
Pneumatic high-angle collision sensor with 10-30 VDC, 200 mA switch current, normally closed switch.
Specifications
- Mass: 1.25 lb
- Height (A): 2.67 in
- Diameter (B): 3.40 in
- Pre-Trip Compliance Range: 0 – 0.10 in
- Temperature Rating: 180°F
- Response Time: 2-6 ms
- Sensor Rating: 10-30 VDC, 200 mA switch current, normally closed switch
- Moment Resistance: 29-274 in-lb
- Torque Resistance: 56-362 in-lb
- Force Resistance: 25-229 lbf
- Angular Compliance: + 13 deg
- Rotary Compliance: + 24 deg
- Axial Compression: 0.31 in
- Repeatability x, y, & z: + 0.0005 in
- Repeatability about z-axis: + 0.017 deg
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
