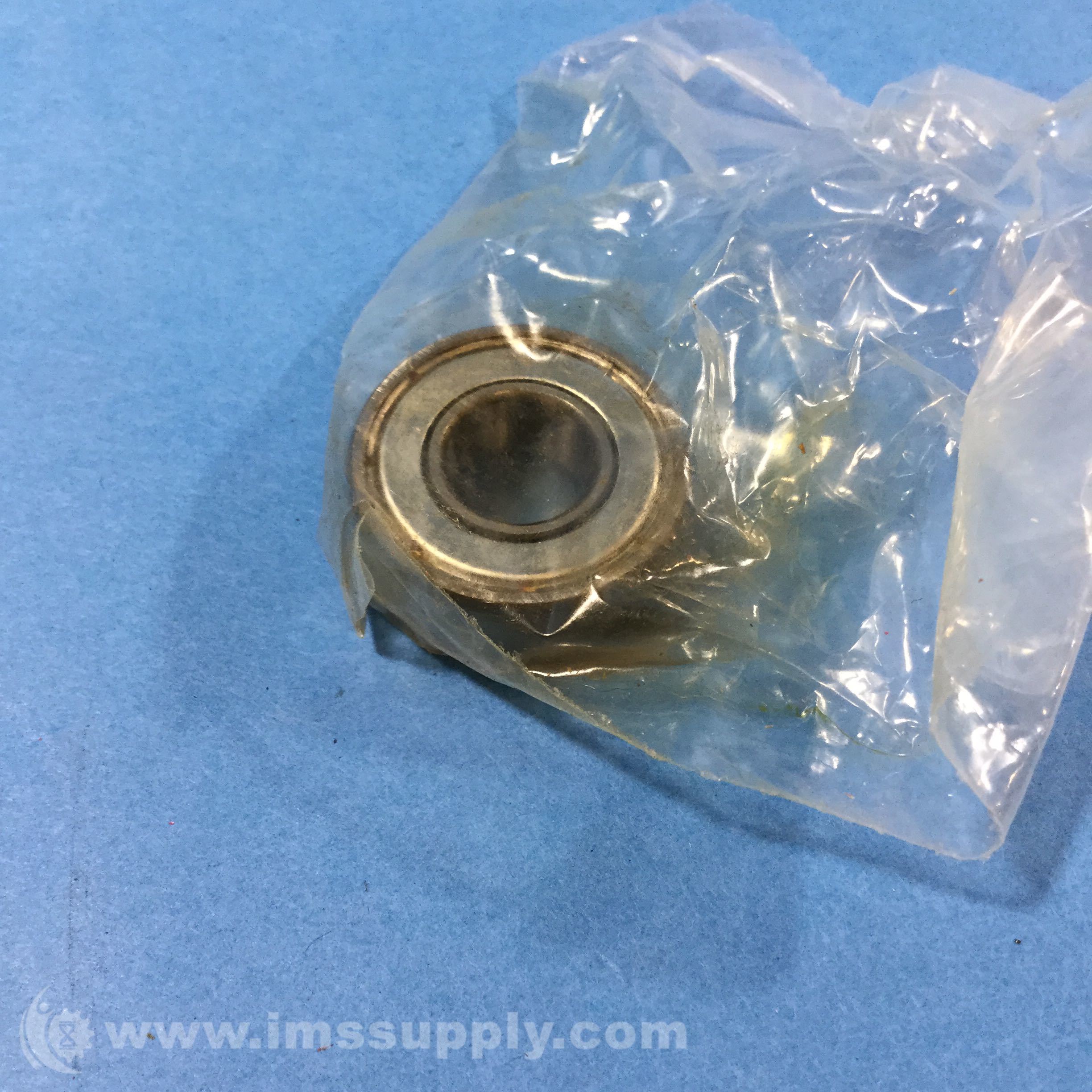

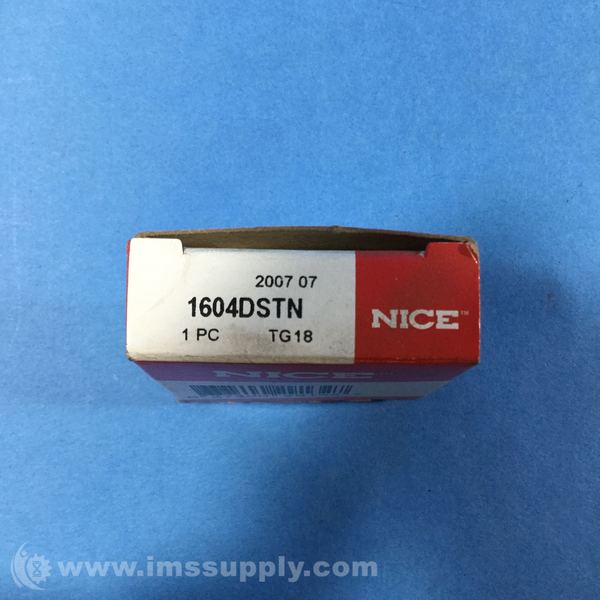

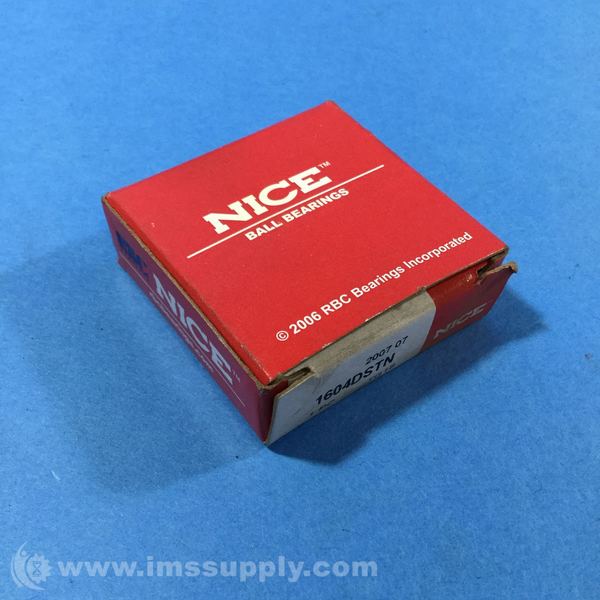

RBC BEARINGS 1604DSTN BALL BEARING
Starting At: $9.20
Quick Overview
Manufactured By: RBC BEARINGS
Manufacturer Part Number: 1604DSTN
IMS Product Code: 1792432
Packaging: Sold Individually
Description:
RBC Bearings 1604DSTN Ball Bearing
Specifications:
- Bore Diameter: 0.3750 in
- Dynamic Load Capacity: 644 lbs
- Outside Diameter: 0.8750 in
- Static Load Capacity: 255 lbs
- Overall Width: 0.2813 in
- Bore Type: Round
- Finish / Coating: Uncoated
- Closure Type: Double Shielded
- Cage Material: Nylon
- Outer Ring Width: 7.15 mm
- Fillet Radius: 0.38 mm
- Maximum Rpm: 5000 RPM
- Operating Temperature Range: -40 to +284 °F
