Manufactured By: RED-D-ARC

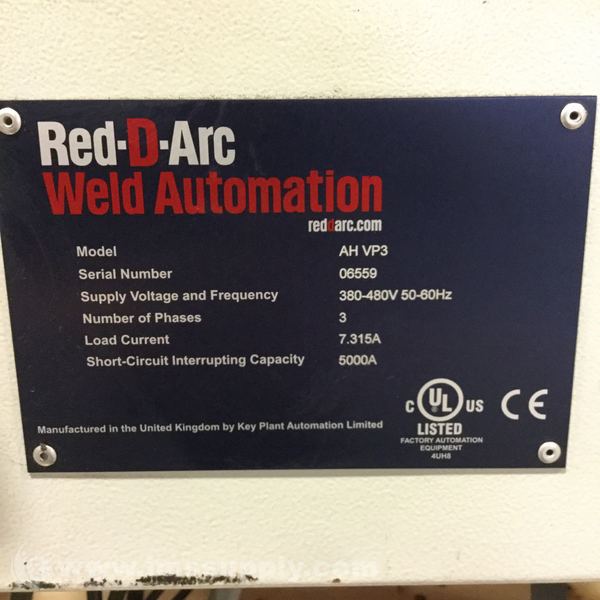

Manufacturer Part Number: AH-VP3
IMS Product Code: 1760024
Packaging: Sold Individually

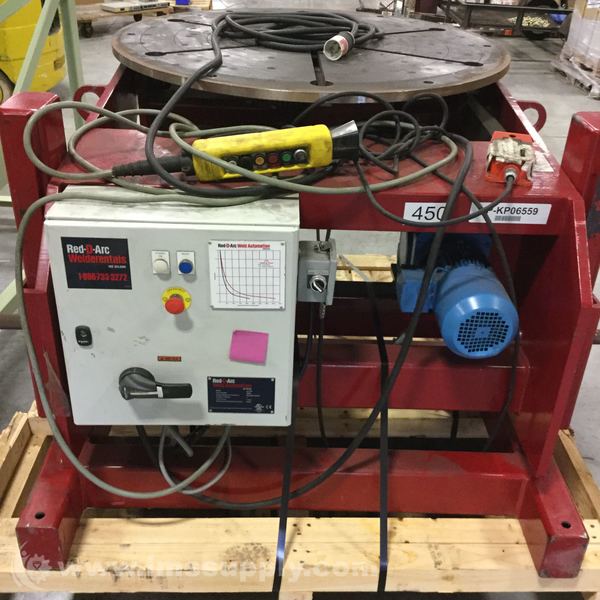

Red-D-Arc AH-VP3 Conventional Welding Positioner


  • Load capacity   : 3000kgs @ 150mm ecc & 150mm c.o.g.

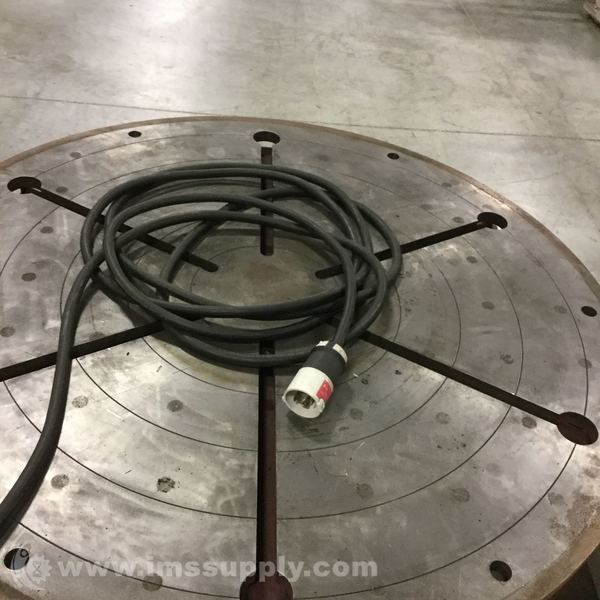

  • Table diameter  : 1220mm
  • Degree of table tilting  : 135
  • Degree of table rotation : 360
  • Table rotation speed    : 0.07 – 1 RPM
  • Table tilting speed  : 40 seconds through 135
  • Height Settings when table horizontal
  • Position 1 : 1050mm
  • Position 2 : 1250mm
  • Position 3 : 1450mm
  • Table equipped with efficient built in earthing, 300 amps, and mounted on pre-loaded crossroll bearing.
  • Table rotation fitted with AC motor and controlled by an Inverter unit suitable for 380 to 480V, 3 Phase supply.

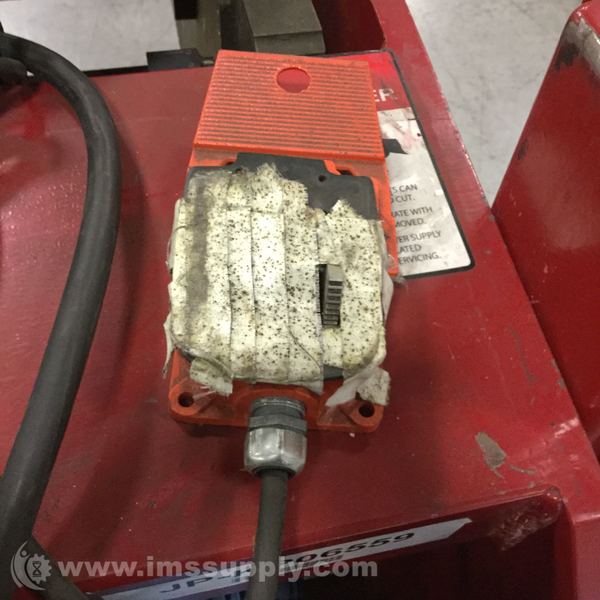

  • Tilting through AC electric motor equipped with limit switches to prevent over-run.
  • Table can be manually elevated from the base, and locked into position using one of the three pin locations.
  • The main control panel mounted on the machine containing the following, mains isolator, mains on lamp, emergency stop button and reset button.

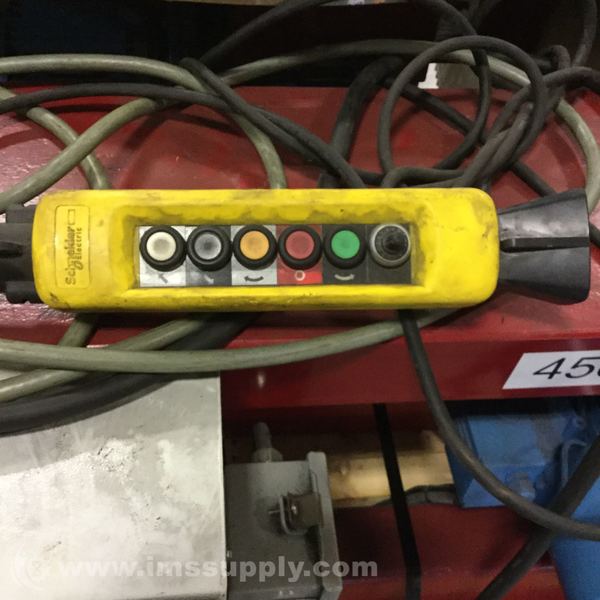

  • The positioner is also supplied with a low voltage remote pendant control containing forward/stop/reverse, tilt-up/tilt-down pushbuttons and a variable speed potentiometer connected with 6 meters of cable to the control panel. Mains electrical supply suitable for 380-480 Volts, 3 phase, 50/60 Hz.
