REES 04958-175 ROPE OPERATED SWITCH
Quick Overview
Manufactured By: REES
Manufacturer Part Number: 04958-175
IMS Product Code: 1820668
Packaging: Sold Individually
Description:

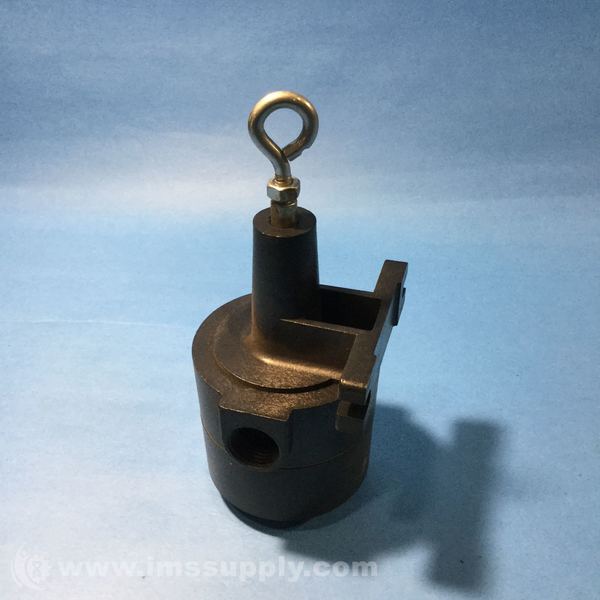

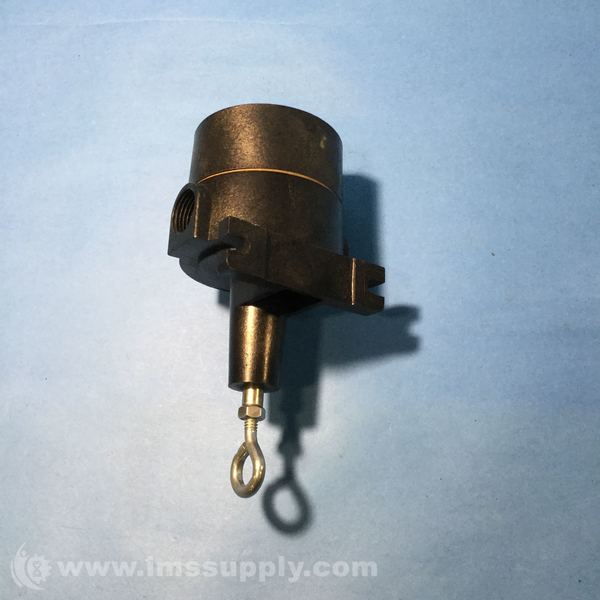

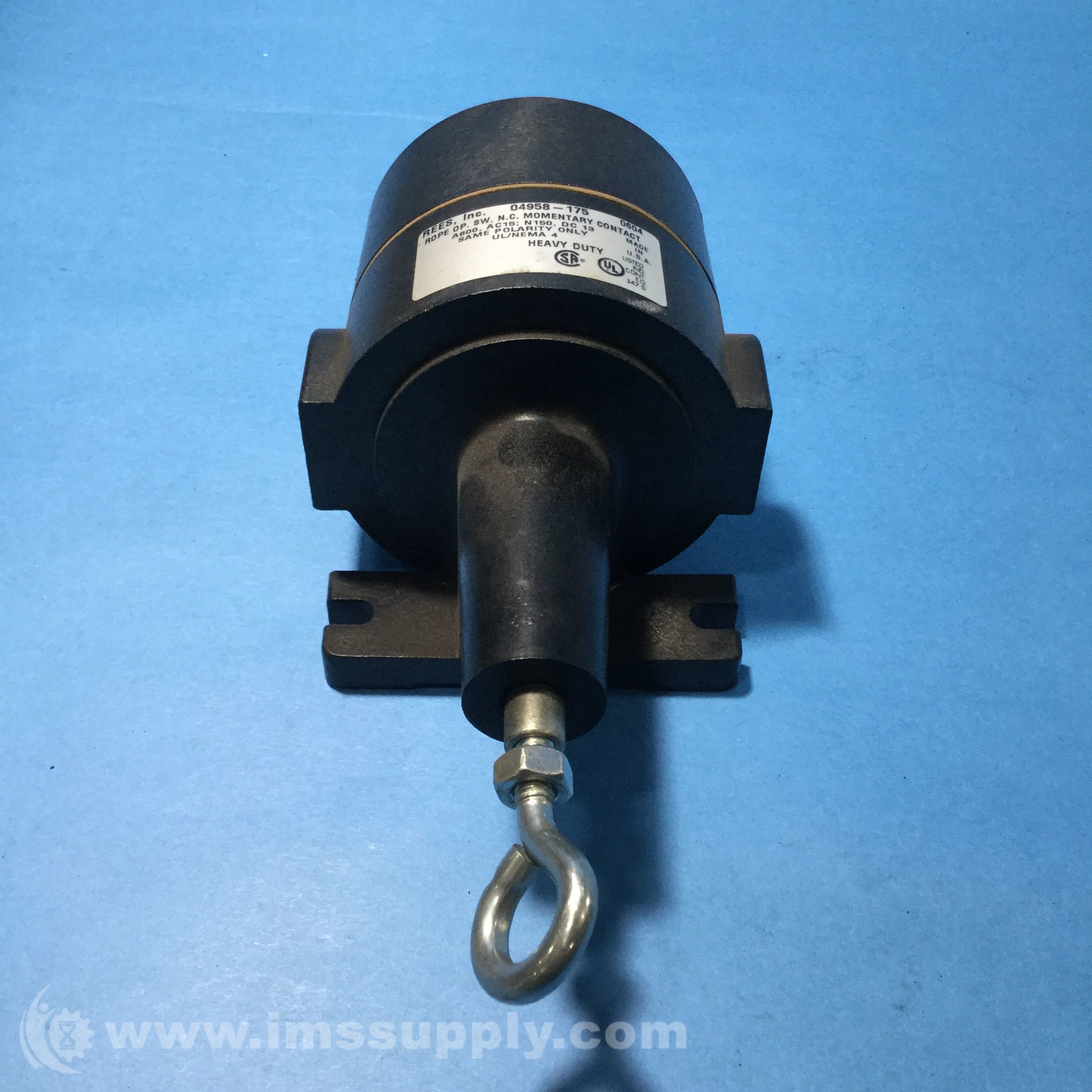

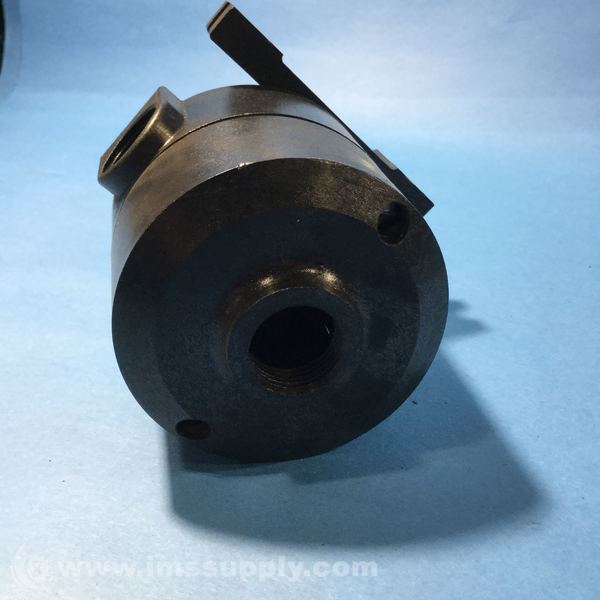

Rees 04958-175 Rope Operated Switch
Rope operated switch with Slow-Make - Slow Break contacts, used for non-emergency applications.
Specifications
- Type: Rope Operated Switch
- Contacts: Slow-Make - Slow Break
- Material: High impact glass-filled black polycarbonate
- Rating: Rain tight, Nema 4 (Raintight), IP 66
- Conduit Openings: Three 1/2" NPT
- Maximum Cable Rope Length: 33 feet
- Maximum Interval Support: 10 feet when horizontal
- Mechanical Life: 1,000,000 operations
- Electrical Ratings: HEAVY DUTY - A600 / N150
- UL Listing: UL 508 - File # E 58589
- CSA Certification: CSA C22.2 - File # LR 3648
- Operating Temperature Range: +32°F to +131°F (0°C to +55°C)
- Storage Temperature Range: -40°F to +185°F (-40°C to +85°C)
- Trip Force: 5 lb
- Operating Force Between 10 ft. Supports: 0.6 lb
- Operating Type: Momentary
- Contact Arrangement: Held NC Block #50701-000
- Circuit: SPST-NO
- Switch Function: Off-Mom
- Current Rating (Amps): 6A (AC), 2.2A (DC)
- Voltage Rating - AC: 120V
- Voltage Rating - DC: 125V
- Operating Force: 272gf
- Ingress Protection: IP66 - Dust Tight, Water Resistant; NEMA 4X
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
