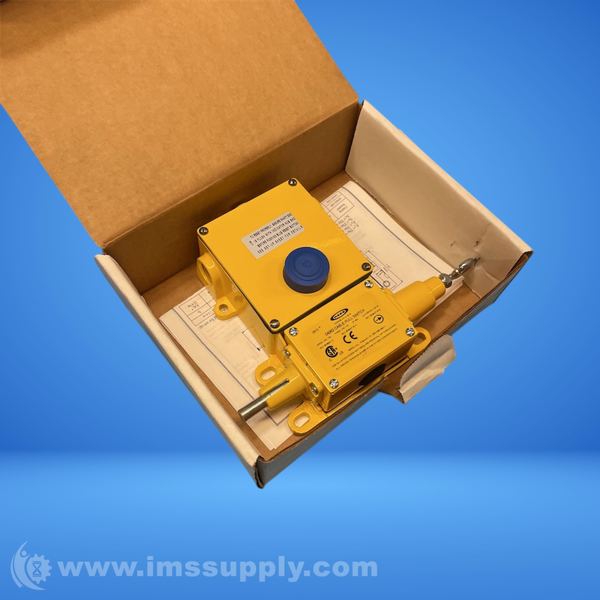

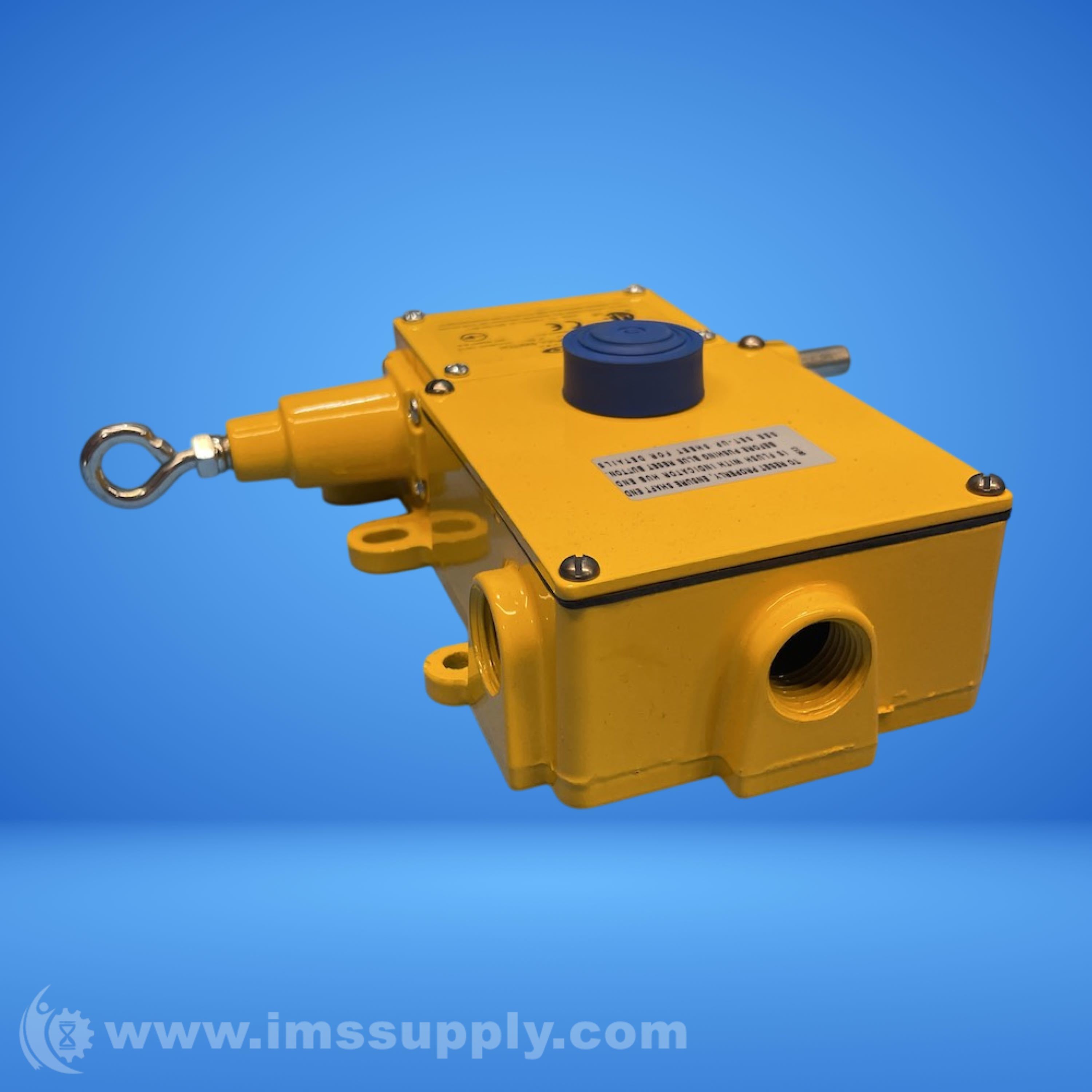

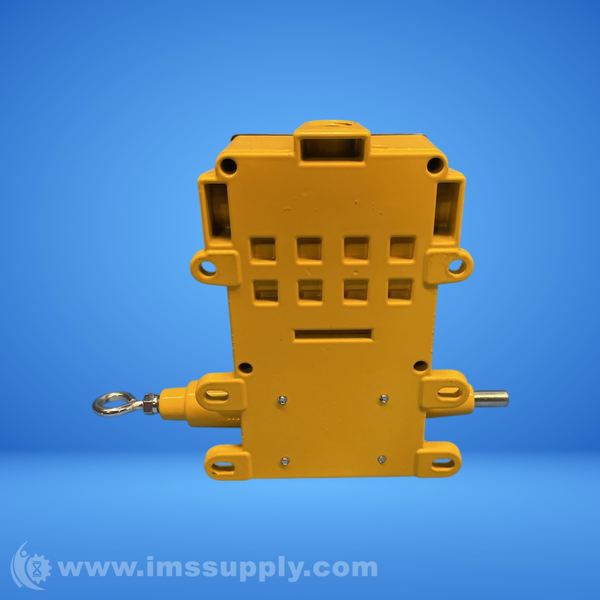

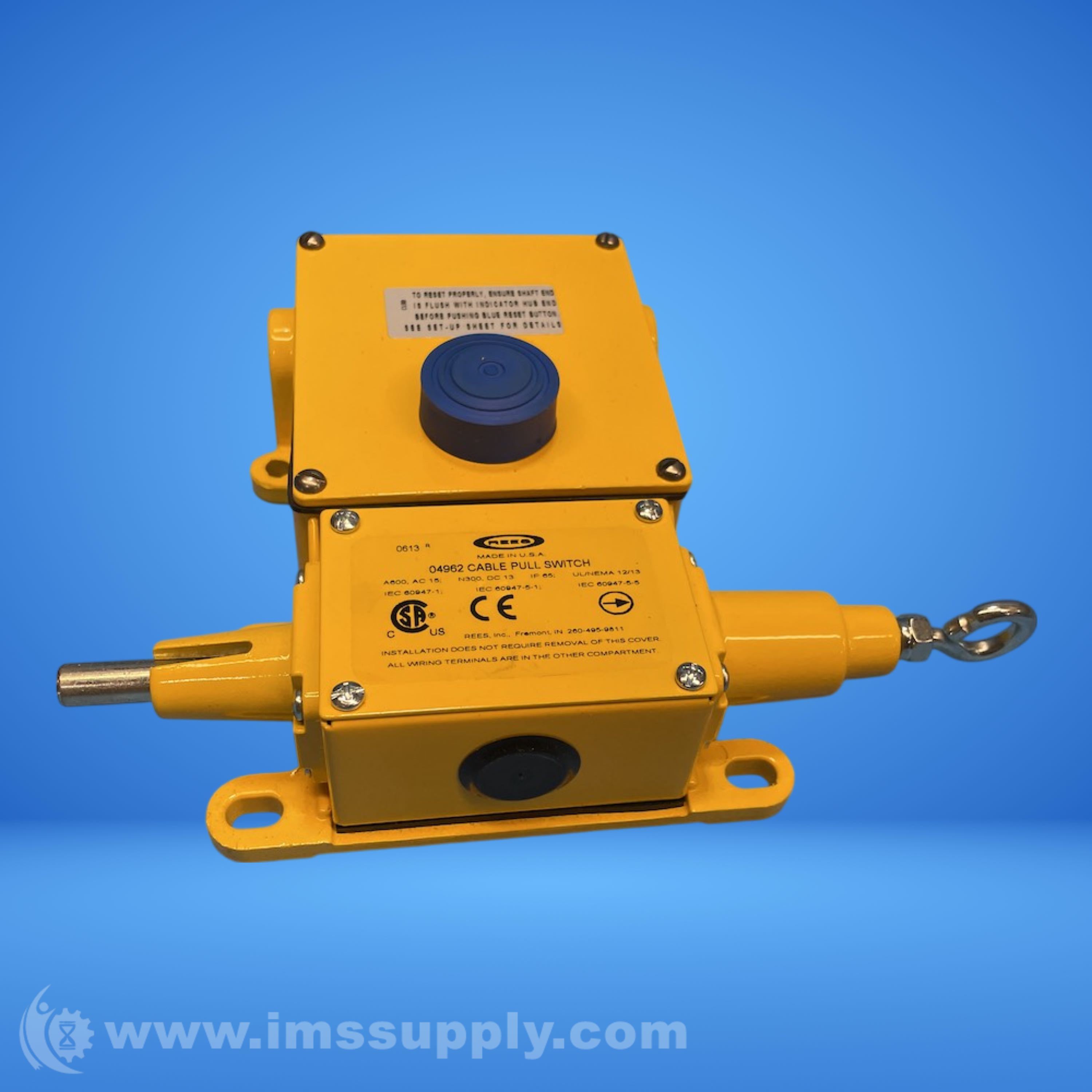

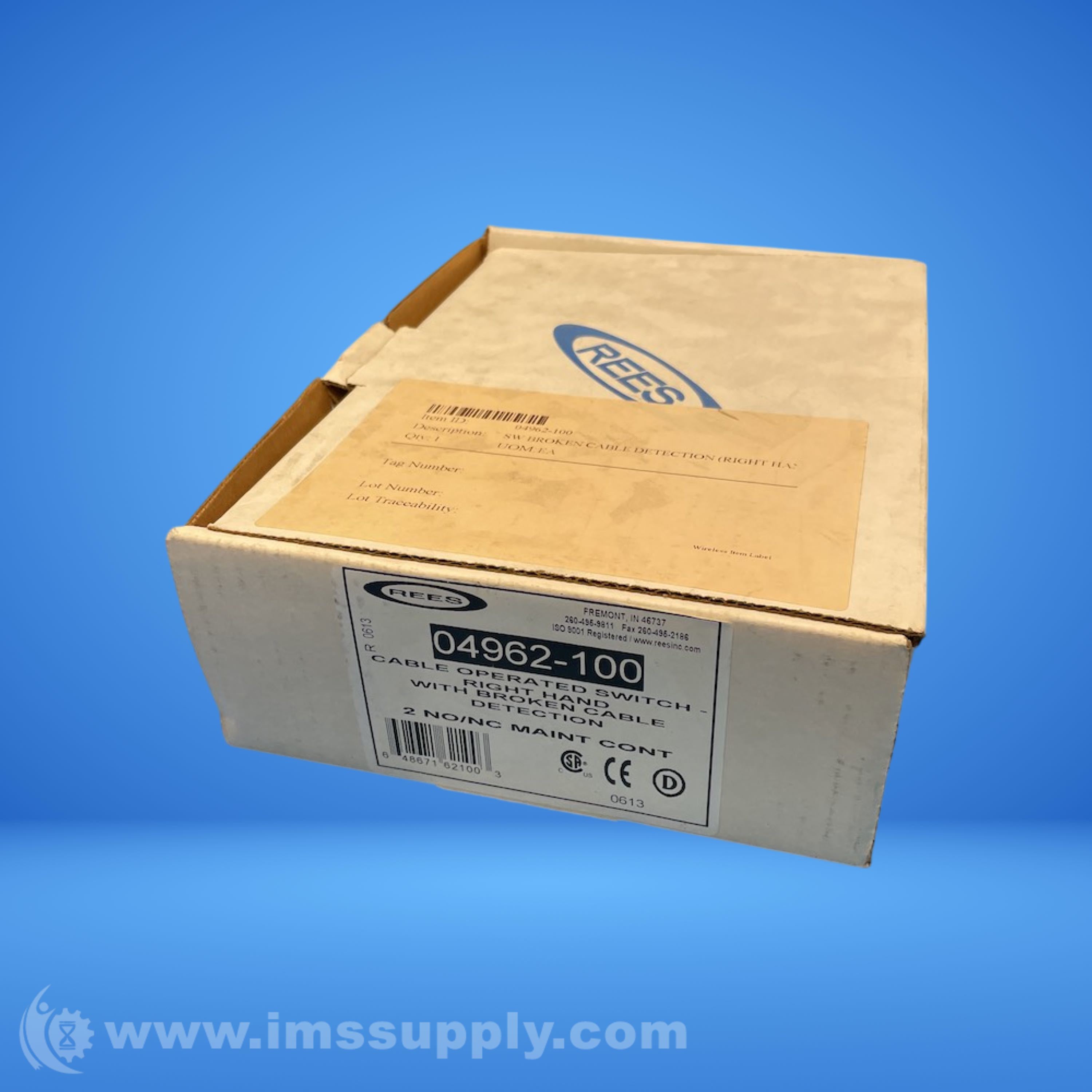

REES 04962-100 CABLE PULL SWITCH
Quick Overview
Manufactured By: REES
Manufacturer Part Number: 04962-100
IMS Product Code: 2133974
Packaging: Sold Individually
Description:
Rees 04962-100 Cable Pull Switch
Cable operated switch with 2 NO and 2 NC contacts, manual reset, and positive break feature. Suitable for emergency stop applications and ordinary circuit control.
Specifications
- Contact Arrangement: 2 NO + 2 NC, Manual Reset
- Direction of Pull: right
- Trip Force: 52 lb
- Operating Force Between 10 ft. Supports: 15.0 lb
- Electrical Ratings: HEAVY DUTY - A600 / N300
- Certifications: CSA-US (File LR 3648), UL/NISD File E357870, Sec. 2, CE Compliant IEC/EN 60947-5-5
- Mechanical Life: 250,000 operations
- Maximum Cable Length: 200 feet
- Maximum Interval Support: 10 feet
- Housing Material: die-cast aluminum
- Environmental Temperature Range Operating: +32F to +131F (0C to +55C)
- Environmental Temperature Range Storage: -40F to +185F (-40C to +85C)
- Enclosure Rating: NEMA 12/13/IP65
- Mounting Type: Conduit/Surface
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 11 minutes.
