RELIANCE ELECTRIC 155286 SERVO MOTOR
Quick Overview
Manufactured By: RELIANCE ELECTRIC
Manufacturer Part Number: 155286
IMS Product Code: 997020
Packaging: Sold Individually
Description:

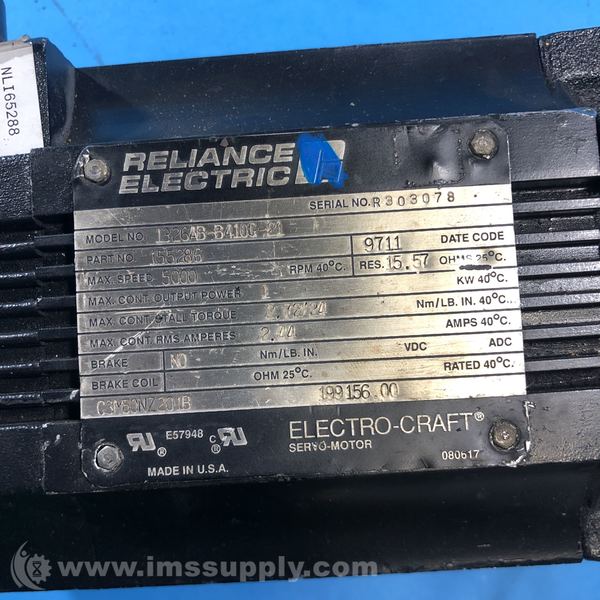

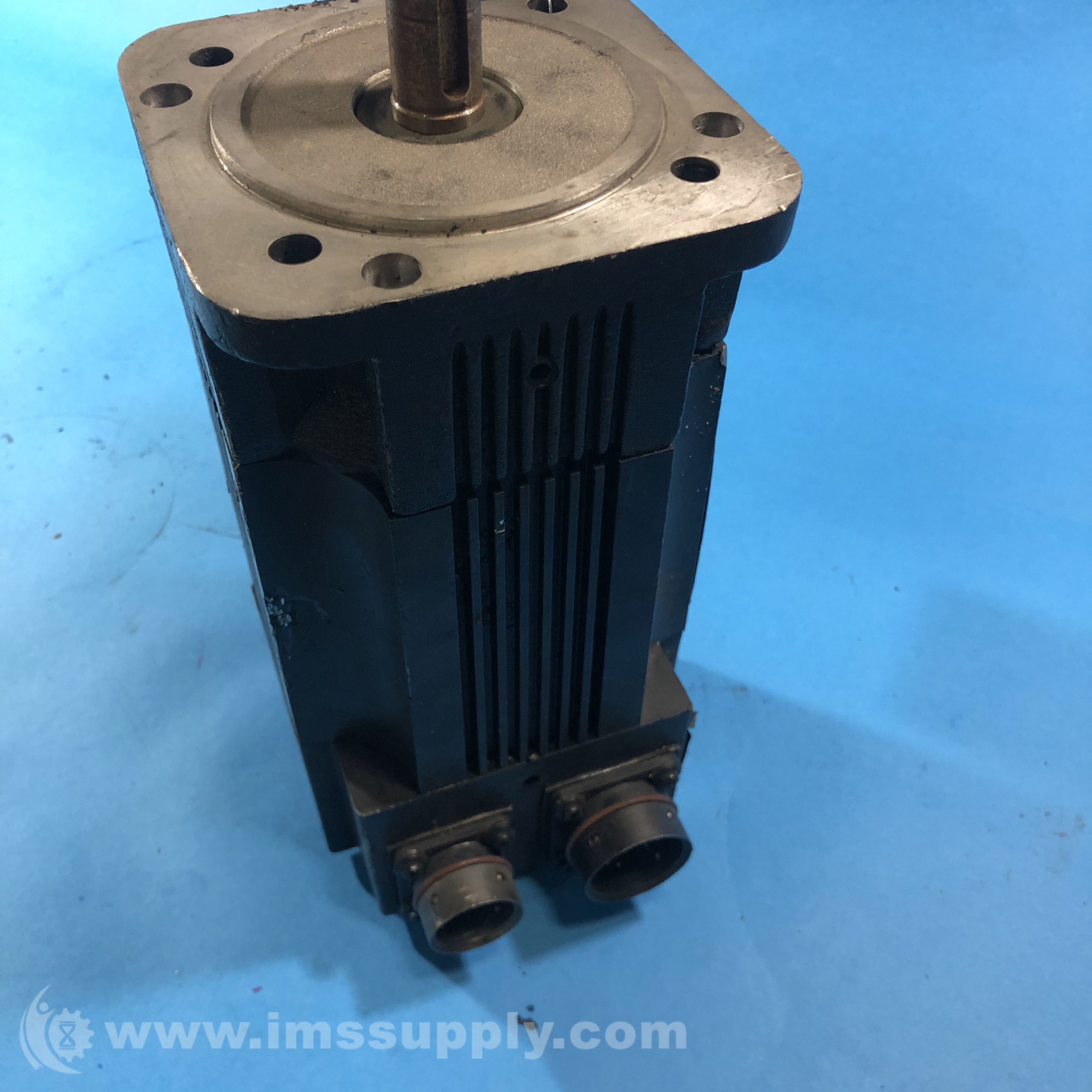

Reliance Electric 155286 Servo Motor
Electro-Craft AC permanent magnet servo motor, 5000 RPM, 1 kW.
Specifications
- Series: 1326AB Torque Plus
- Max Speed: 5000 RPM
- Voltage: 460/380 VAC
- Continuous Stall Torque: 2.7 N-m (24 lb-in.)
- Rated Output: 1 kW
- Rated Amperes: 2.44 A
- Feedback: Resolver-based feedback

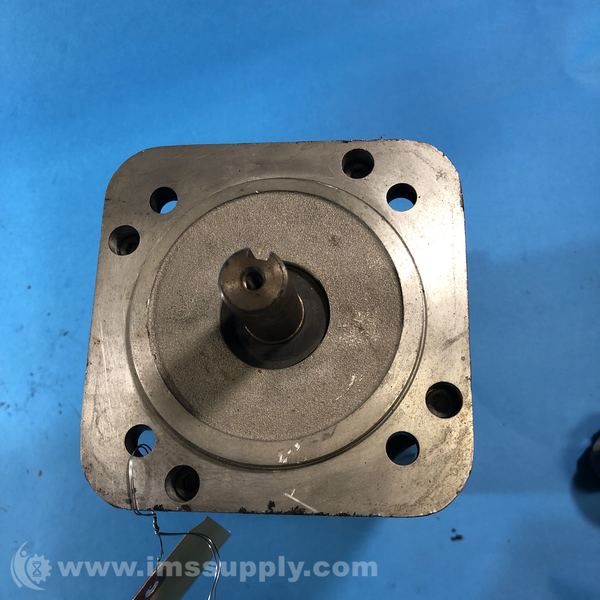

- Mounting: IEC metric flange with a keyway shaft
- Frame size: 108 mm diameter
- Weight: 17.00 lbs
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
