REMKE 3400022 M12 MICRO-LINK DISTRIBUTION BOX
Quick Overview
Manufactured By: REMKE
Manufacturer Part Number: 3400022
IMS Product Code: 1826340
Packaging: Sold Individually
Description:

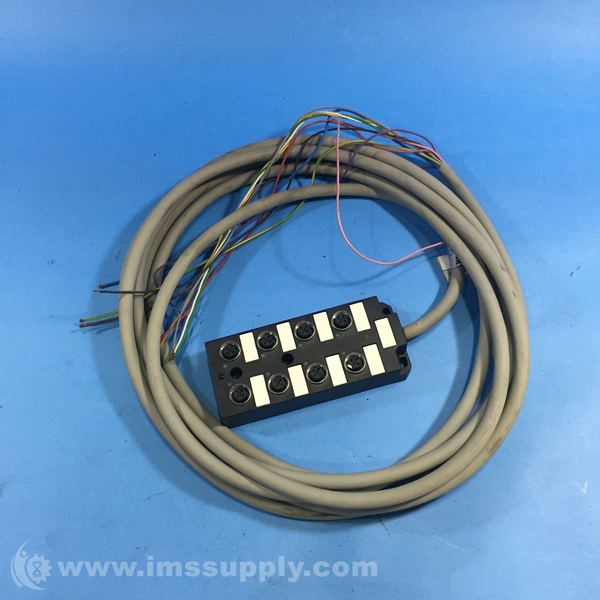

Remke 3400022 M12 Micro-Link Distribution Box

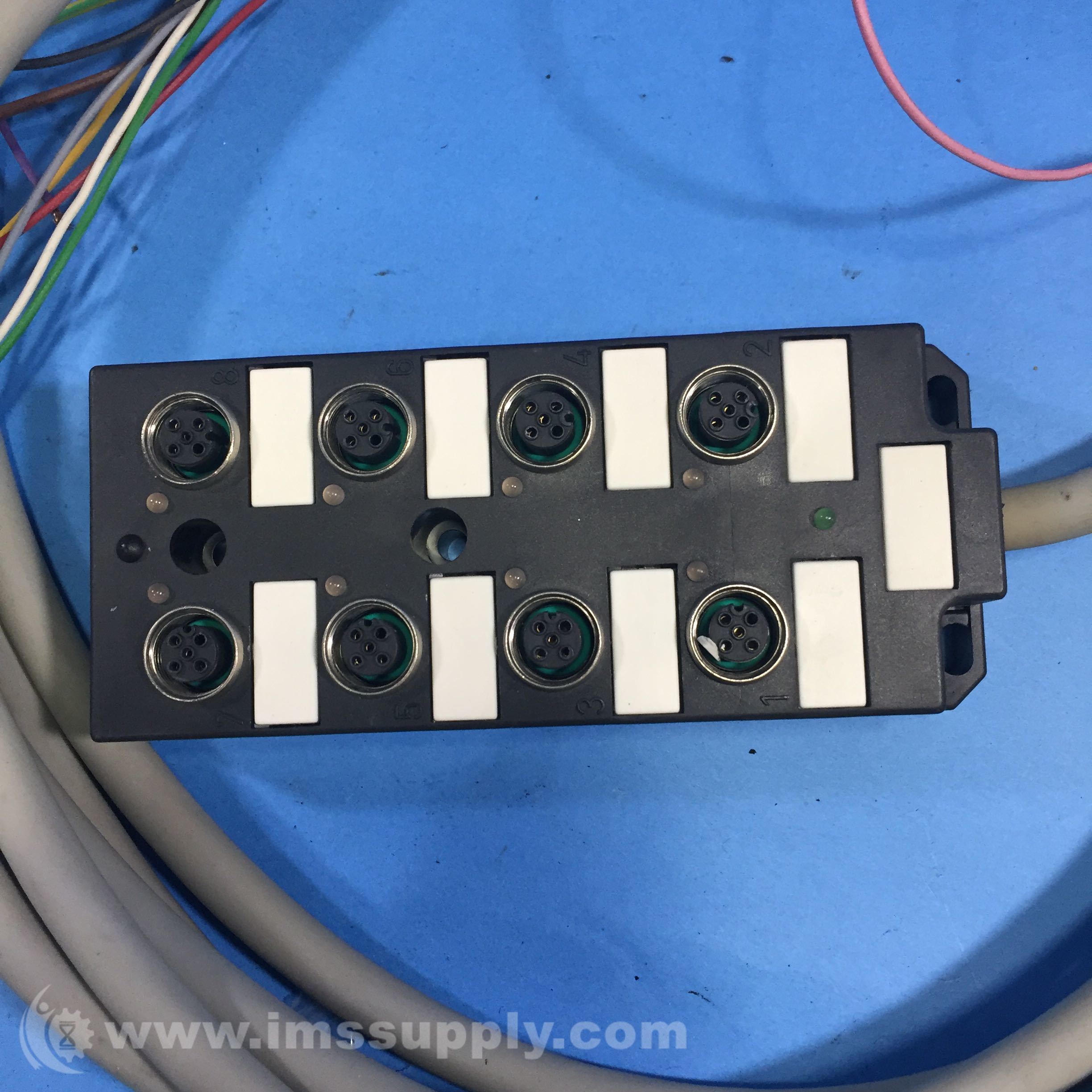

M12 Micro-Link distribution box with 8 outlets and 5M cable
Specifications
- Cable Jacket Color: Gray
- Cable Jacket Material: PVC
- Cable Length (ft): 16.4
- Connector Style: MicroLink Single Key
- Contact Carrier Material: Nylon
- Contact Material: Brass, Gold Plated Over Nickel
- Contact Resistance (Micro Ohms): 5
- Contact Sleeve: Stainless Steel
- Current Rating Per Outlet (amps): 4
- Current Rating Per Unit (amps): 12
- Distribution Box Length (in): 5
- Distribution Box Width (in): 2.13
- Feed Type (boxes): Cable (5M)
- Housing Material (boxes): Nylon
- Insert Material: Polycarbonate
- IP Rating: IP65
- Maximum Operating Temperature (C): 80
- Minimum Operating Temperature (C): -20
- NEMA Rating: 6P
- Number of Outlets: 8
- O-Ring Material: Viton
- Port Shell Material (boxes): Nickel Plated Brass
- Voltage Rating (AC): 250
- Voltage Rating (DC): 300
- Wiring Color Code: Euro CC
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
