REXROTH R164510341 BALL GUIDE RAIL
Quick Overview
Manufactured By: REXROTH
Manufacturer Part Number: R164510341
IMS Product Code: 2129086
Packaging: Sold Individually
Description:

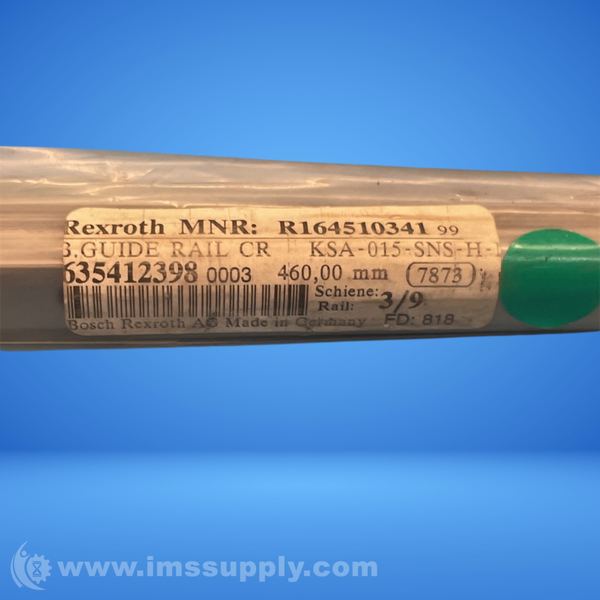

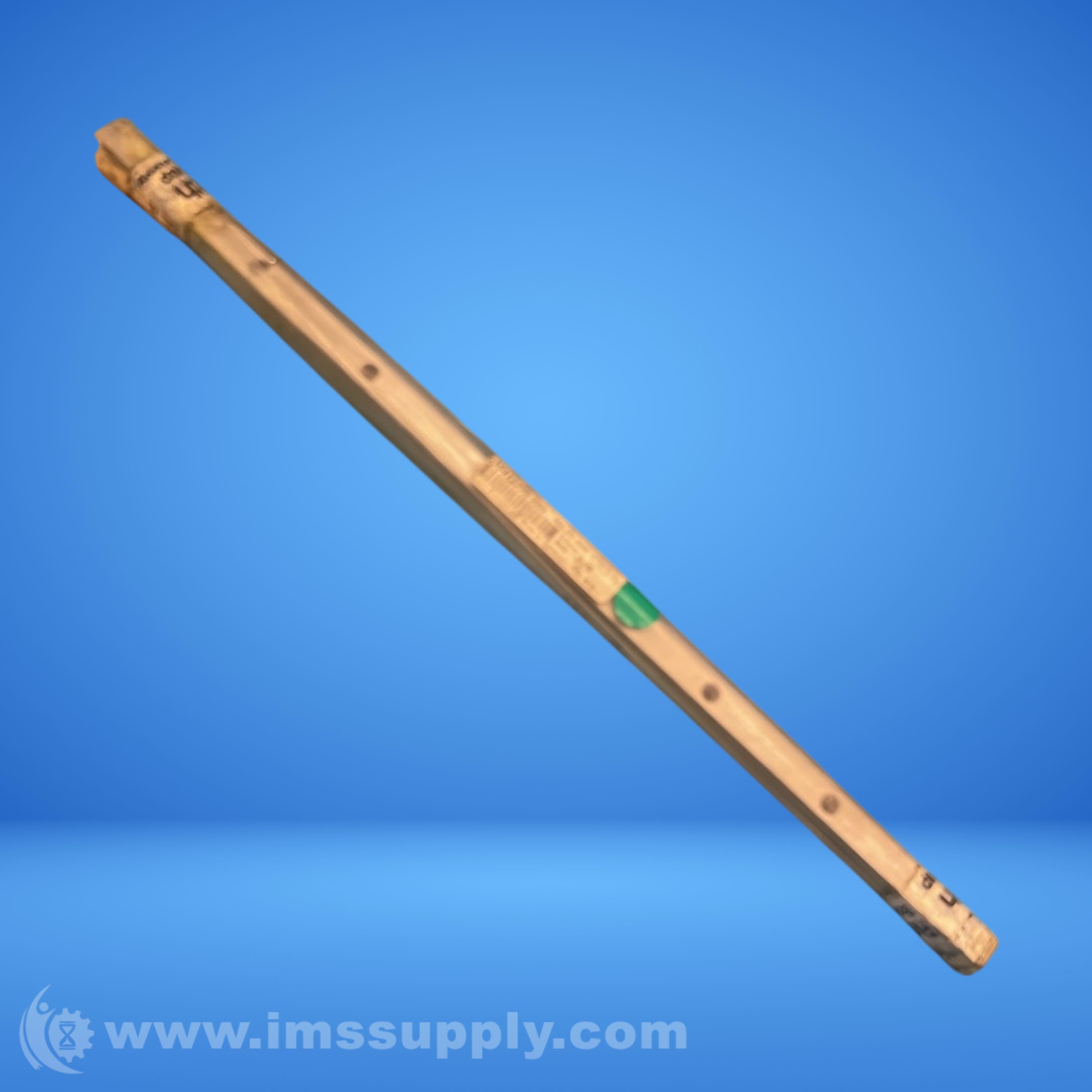

Rexroth R164510341 Ball Guide Rail
KSA-015-SNS-H-MA-AK ball guide rail
Specifications
- Series: R1645
- Size: 15
- Accuracy Class: 3
- Accuracy Class Description: H High Accuracy Level
- Sections: 41
- One-piece: true
- nB: 64
- H2: 16.20 mm
- ØS5: 4.50 mm
- T1 min: 10 mm
- T1 max: 50 mm
- D: 7.40 mm
- N6: 10.3 mm ±0.5
- T: 60 mm
- T1 s (Preferred dimension T1S Recommended with tolerances ± 0.75. ): 28 mm
- m: 1.40 kg
- Permissible Ambient Temperature (min ... max): 0 degrees C ... +80 degrees C
- Lmax: 3,836 mm
- Brand: Rexroth
- Model: R164510341
- MPN: R164510341
- Country/Region of Manufacture: Germany
- Length: 670mm
- Width: 35mm
- Height: 35mm
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
