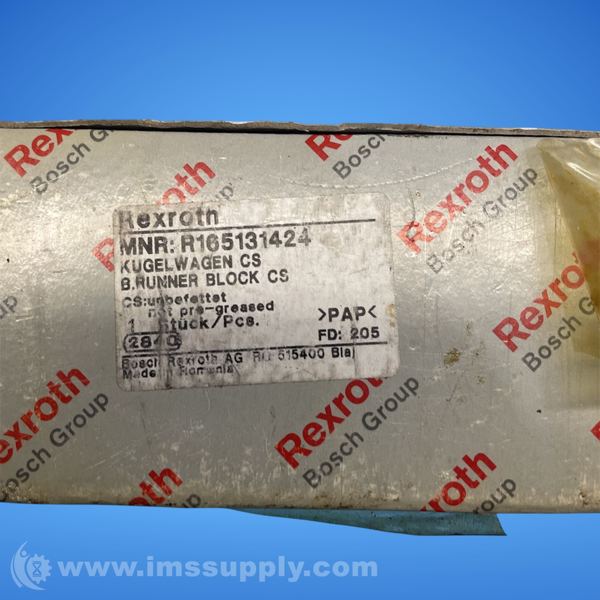

REXROTH R165131424 BALL RUNNER BLOCK
Quick Overview
Manufactured By: REXROTH
Manufacturer Part Number: R165131424
IMS Product Code: 2160964
Packaging: Sold Individually
Description:
Rexroth R165131424 Ball Runner Block
Carbon steel ball runner block with flanged, normal, standard height format. Size 35 mm, preload class C1, accuracy class N.
Specifications
- Size: 35 mm
- Format: FNS - Flanged, normal, standard height
- Material: Carbon steel
- Maximum Acceleration: 500 m/s�
- Maximum Speed: 5 m/s
- Dynamic Load Capacity: 51800 N
- Static Load Rating: 80900 N
- Dynamic Torsional Moment: 1110 Nm
- Static Torsional Moment: 1740 Nm
- Dynamic Longitudinal Moment: 720 Nm
- Static Longitudinal Moment: 1130 Nm
- Accuracy Class: N - normal
- Preload Class: C1 - Low preload
- Width: 100 mm
- Length: 110.5 mm
- Height of System: 48 mm
- Height of Block: 40.4 mm
- E1: 82 mm
- E2: 62 mm
- Operating Temperature: -10 degrees C ... +80 degrees C
- Weight: 1.7 kg
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 8 In Stock
Ships today if ordered in the next 9 hours and 46 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 8 In Stock
Ships today if ordered in the next 9 hours and 46 minutes.
