REXROTH R165341370 BALL RUNNER BLOCK
Quick Overview
Manufactured By: REXROTH
Manufacturer Part Number: R165341370
IMS Product Code: 1902923
Packaging: Sold Individually
Description:

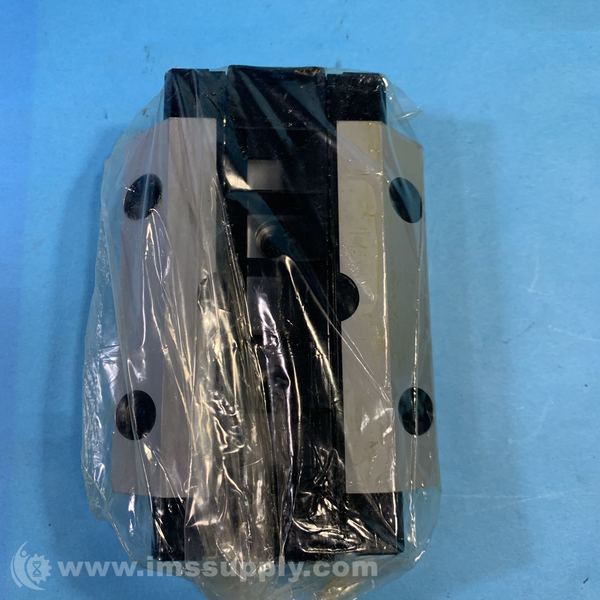

Rexroth R165341370 Ball Runner Block
Ball runner block Resist CR with corrosion-resistant coating, matt silver finish, hard chrome plated
Specifications
- Series: R1653
- Flange: long, standard height R1653
- Size: 45
- Preload class: C1 Moderate preload
- Accuracy class: H High Accuracy Level
- Seals: SS Standard seal without ball chain
- A: 120 mm
- A2: 45 mm
- B: 174.1 mm +0.5
- E1: 100 mm
- E3: 60 mm
- E9: 20.90 mm
- H1: 50.30 mm
- Dimension H2 without cover strip: 39.85 mm
- K2: 37.50 mm
- K4: 8.20 mm
- N2: 12.40 mm
- S1: 10.40 mm
- ØS5: 14 mm
- T: 105 mm
- A1: 60 mm
- A3: 37.50 mm
- B1: 133.50 mm
- E2: 80 mm
- E8: 69.80 mm
- H: 60 mm
- Dimension H2 with cover strip: 40.15 mm
- K1: 35.50 mm
- K3: 8.20 mm
- N1: 15 mm
- N6: 23.5 mm ±0.5
- S2: M12
- S9: M4x7
- V1: 10 mm
- amax: 500 m/s²
- m: 4.30 kg
- Permissible ambient temperature (min ... max): -10 degrees C ... +80 degrees C
- vmax: 5 m/s
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 4 hours and 17 minutes.
