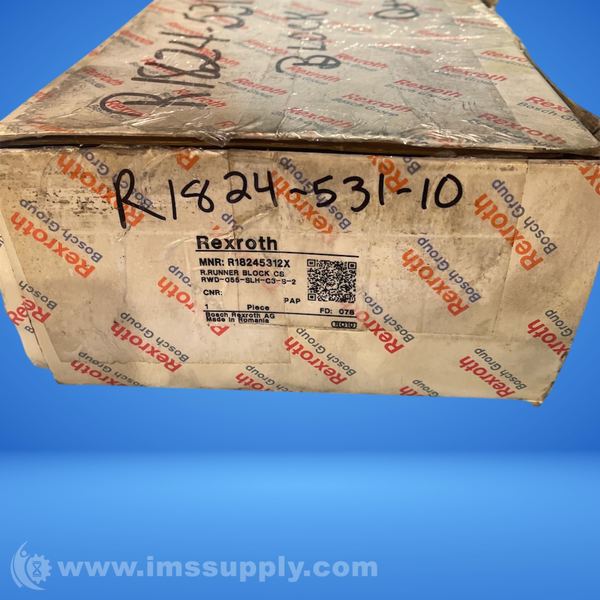

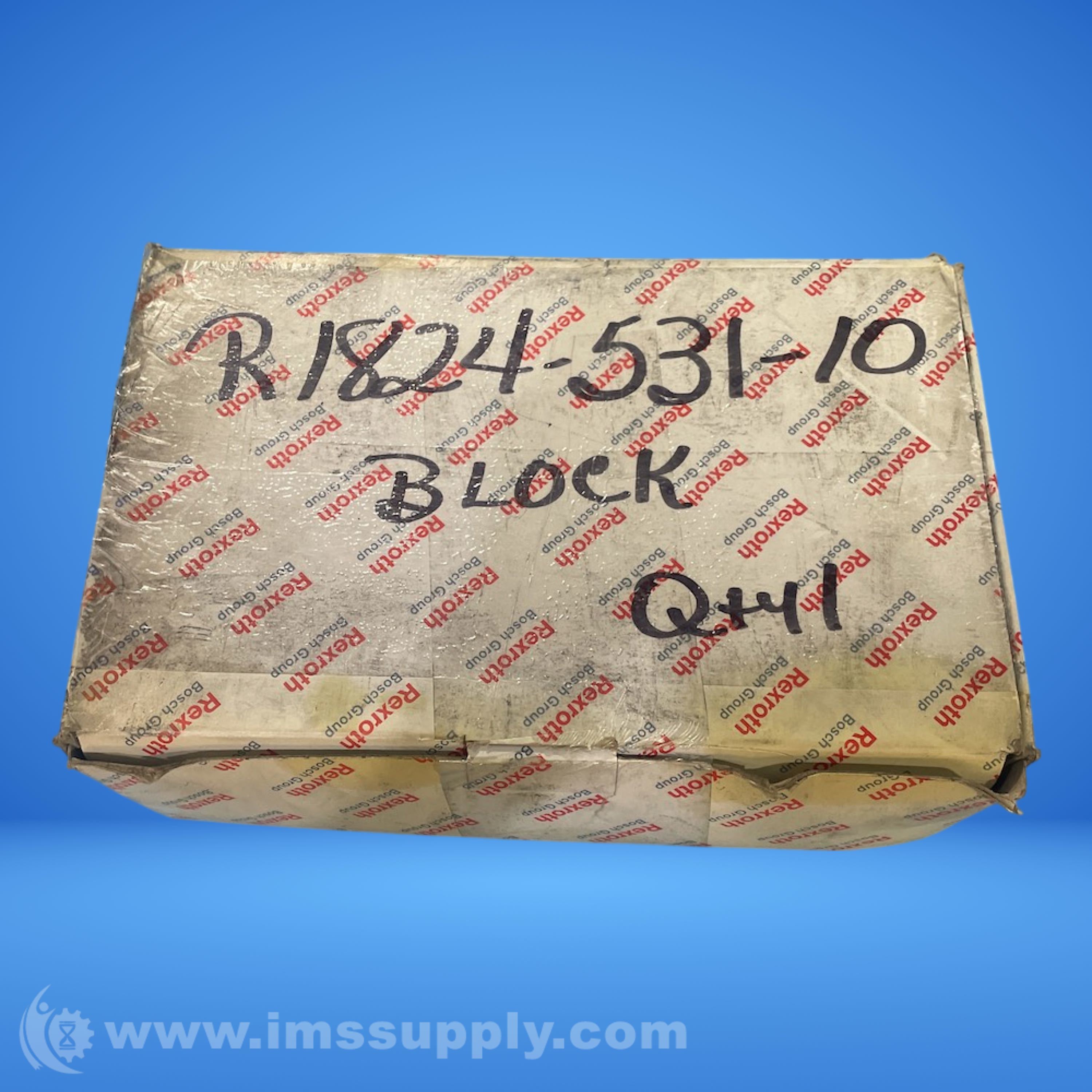

REXROTH R18245312X ROLLER RUNNER BLOCK
Quick Overview
Manufactured By: REXROTH
Manufacturer Part Number: R18245312X
IMS Product Code: 2133866
Packaging: Sold Individually
Description:
Rexroth R18245312X Roller Runner Block
Carbon steel roller runner block with high preload and super precision accuracy. Four-row design with double-lipped seals.
Specifications
- Series: R1824
- Size: 55
- Preload class: C3 High preload
- Accuracy class: SP Super Precision Accuracy Level
- Seals: DS double lipped seal
- A: 100 mm
- A2: 53 mm
- B: 209.65 mm
- E1: 75 mm
- E8: 74.20 mm
- E9: 28.85 mm
- H: 80 mm
- H2 with cover strip: 47.85 mm
- K1: 41.25 mm
- N3: 19 mm
- N6: 28.7 mm ±0.5
- ØS5: 16 mm
- T: 60 mm
- A1: 50 mm
- A3: 23.50 mm
- B1: 162.10 mm
- E2: 95 mm
- E8.2: 81.60 mm
- E9.2: 50.75 mm
- H1: 68 mm
- H2 without cover strip: 47.55 mm
- K2: 44.40 mm
- N5: 19 mm
- S2: M12
- S9: M5 ? 8mm deep
- V1: 12 mm
- amax: 150 m/s²
- m: 6.55 kg
- vmax: 4 m/s
- FR: 45 N
- Permissible ambient temperature (min ... max): -10 degrees C ... +80 degrees C
- Weight: 6.784 kg
- Material: Carbon steel
- Preload: High preload
- Design: Block carriage
- Type of rolling elements: Rollers
- Ball-/Roller rows: Four-row
- Temperature range: -10 to +100 degrees C

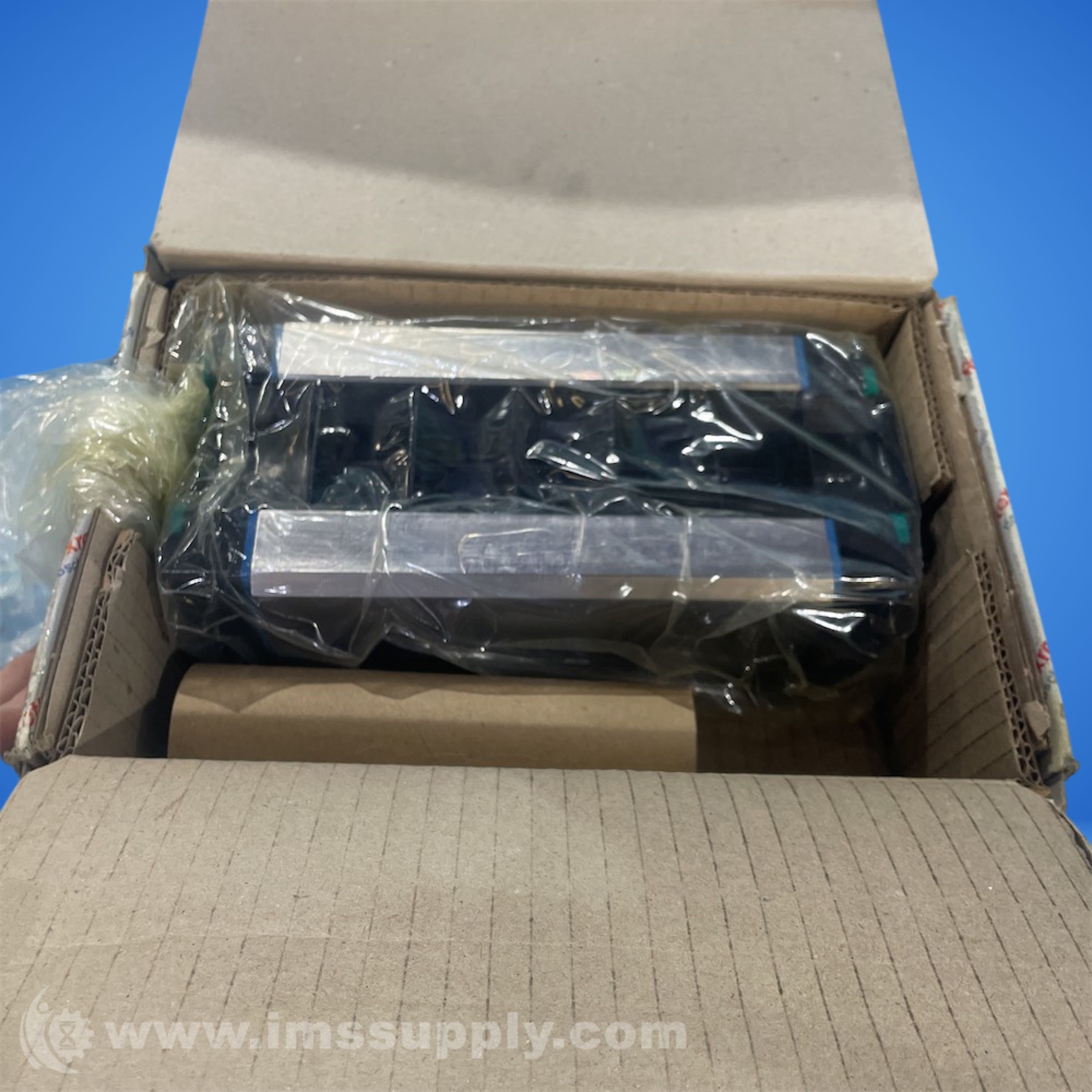

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
