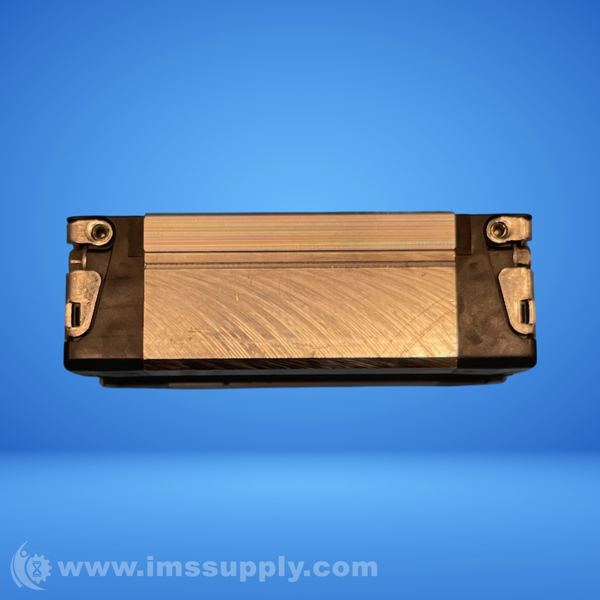

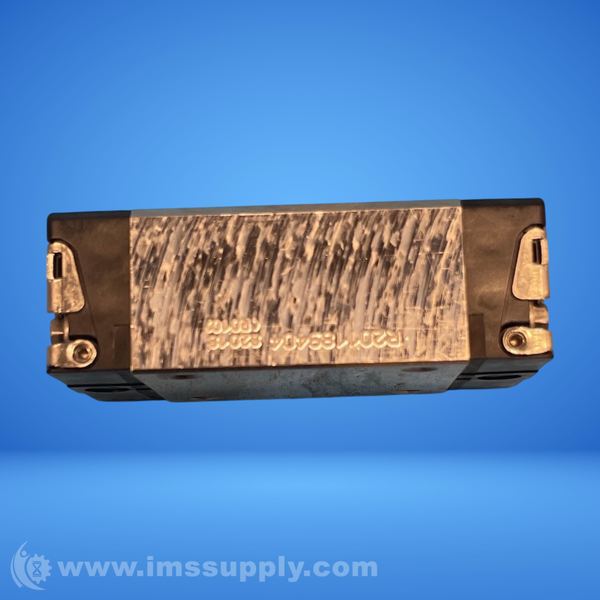

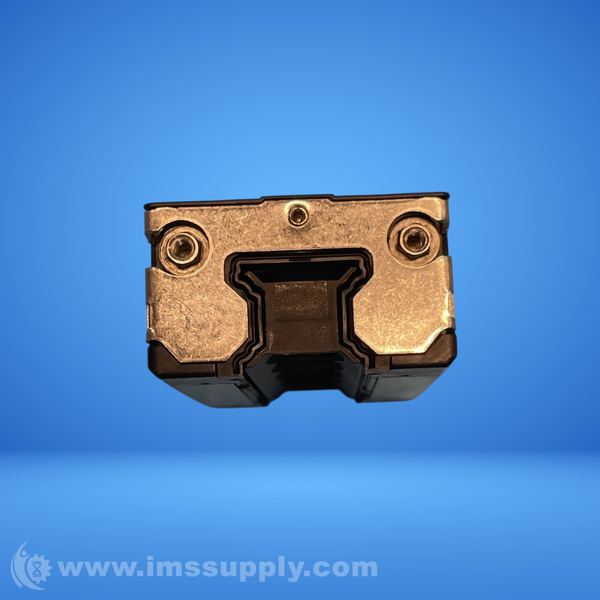

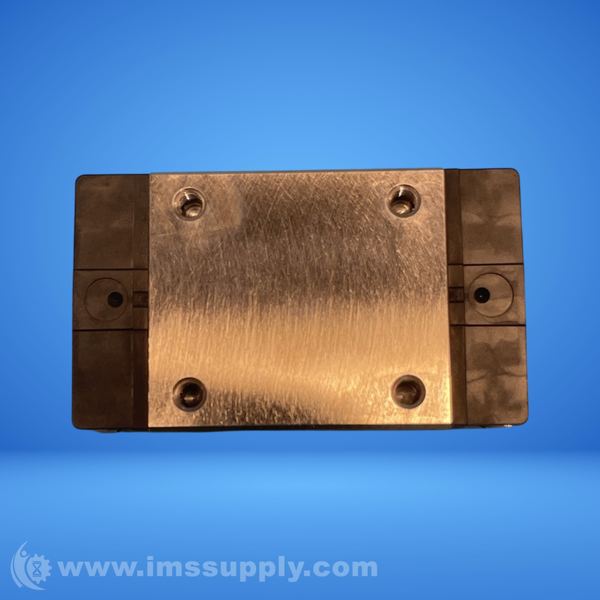

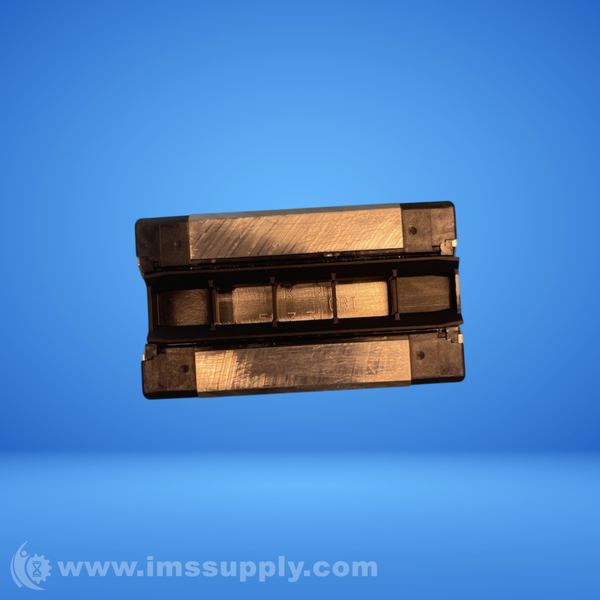

REXROTH R201189404 BALL RUNNER BLOCK
Quick Overview
Manufactured By: REXROTH
Manufacturer Part Number: R201189404
IMS Product Code: 2128944
Packaging: Sold Individually
Description:
Rexroth R201189404 Ball Runner Block
SNS, standard, Resist NR II, with ball chain
Specifications
- Area of application: For restricted space in transverse direction
- Long-term lubrication: possible over several years
- Material: corrosion-resistant steel
- Preload class: C0 Without preload (clearance)
- Accuracy class: N Normal Accuracy Level
- Seals: SS Standard seal without ball chain
- Size: 20
- A: 44 mm
- A2: 20 mm
- B: 75 mm +0.5
- E1: 32 mm
- E8: 32.50 mm
- H: 30 mm
- H2 with cover strip: 20.75 mm
- K1: 13.80 mm
- K3: 3.35 mm
- N3: 7.50 mm
- S2: M5
- S9: M3x5
- V1: 6 mm
- A1: 22 mm
- A3: 12 mm
- B1: 49.60 mm
- E2: 36 mm
- E9: 7.30 mm
- H1: 25.35 mm
- H2 without cover strip: 20.55 mm
- K2: 13.80 mm
- K4: 3.35 mm
- N6: 13.2 mm ±0.5
- ØS5: 6 mm
- T: 60 mm
- amax: 500 m/s²
- m: 0.35 kg
- Permissible ambient temperature: -10 degrees C ... +80 degrees C
- vmax: 5 m/s
- Design: Block carriage
- Weight: 0.35 kg
- Length: 0.09
- Width: 0.09
- Depth: 0.039
- Version: Small design
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 125 In Stock
