REXROTH R900978303 DIRECTIONAL SPOOL VALVE
Quick Overview
Manufactured By: REXROTH
Manufacturer Part Number: R900978303
IMS Product Code: 1912591
Packaging: Sold Individually
Description:

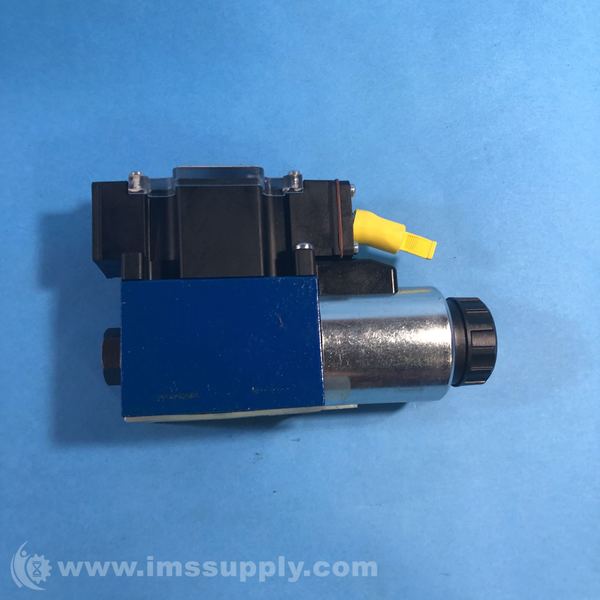

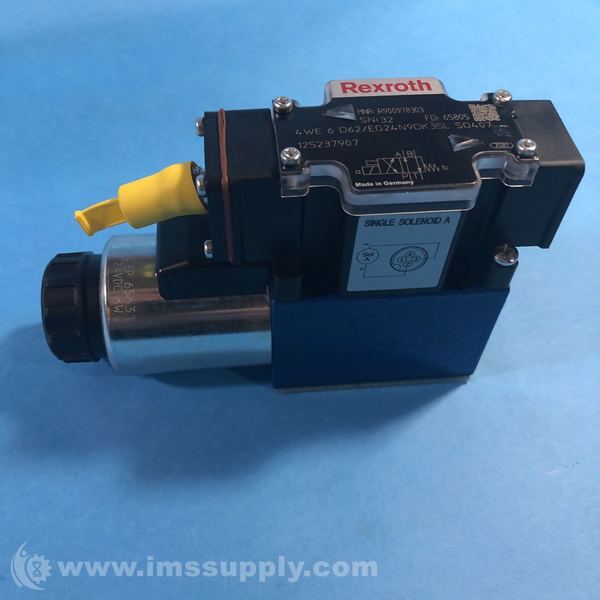

Rexroth R900978303 Directional Spool Valve
4WE6D6X/EG24N9DK35LSO407 directional spool valve with high-power wet-pin solenoid and concealed manual override.
Specifications
- Size: 6
- Component Series: 6X
- Maximum Operating Pressure: 350 bar
- Maximum Flow (DC): 80 l/min
- Maximum Flow (AC): 60 l/min
- Main Ports: 4
- Series: WE
- Symbols: D
- Spring Return: With spring return
- Solenoid: High-power wet-pin solenoid with detachable coil
- Electrical Voltages: 24V
- Manual Override: With concealed manual override (standard)
- Corrosion Resistance: None (valve housing primed)
- Electrical Connection: With indicator light and interference protection circuit
- Spool Position Monitoring: Without position switch
- Switching Time Increase: Without switching time increase
- Throttle Insert: Without throttle insert (standard)
- Clamping Length: 42 mm [1.65 inch] (standard)
- Control Spool Play: Standard (recommended)
- Seal Material: NBR seals
- Approval: Standard
- Locating Hone: Without locating hole
- Power Consumption: With reduced electric power consumption (only versions 'G24' as well as 'K4', 'DL' and 'DKL')
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships today if ordered in the next 11 hours and 58 minutes.
