REXROTH R901029969 PROPORTIONAL PRESSURE RELIEF VALVE
Quick Overview
Manufactured By: REXROTH
Manufacturer Part Number: R901029969
IMS Product Code: 1940132
Packaging: Sold Individually
Description:

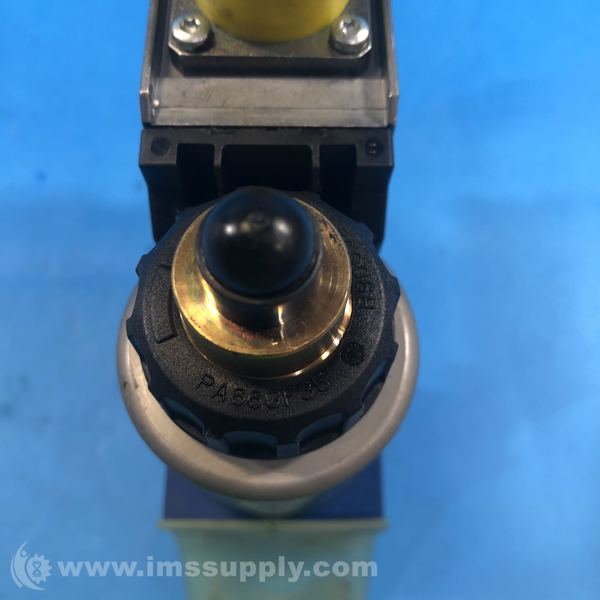

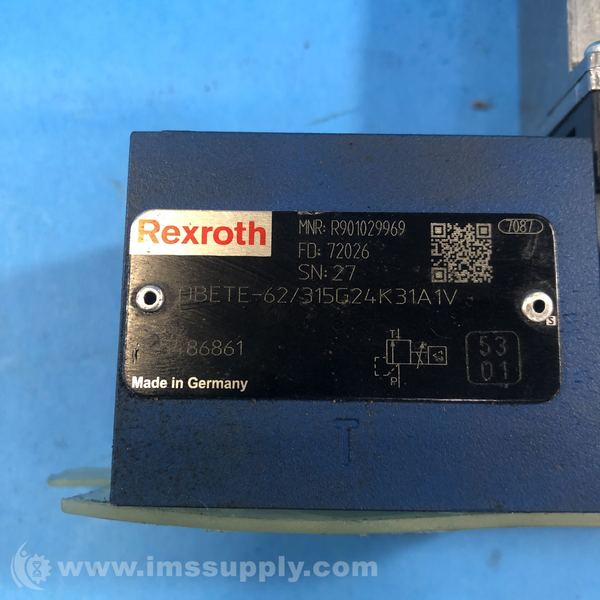

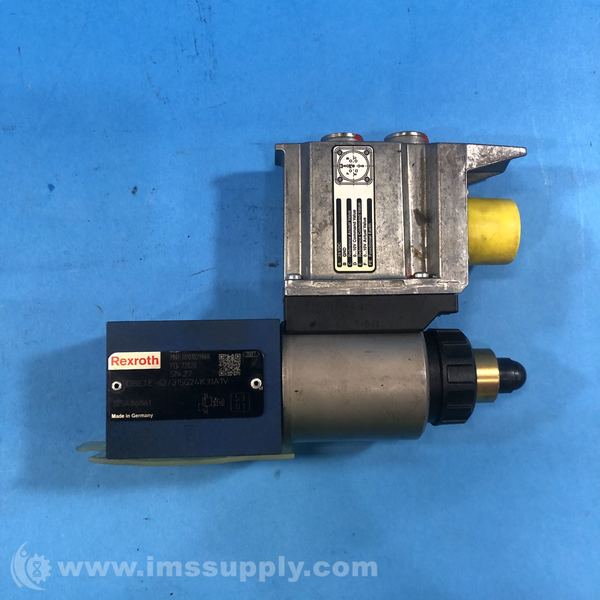

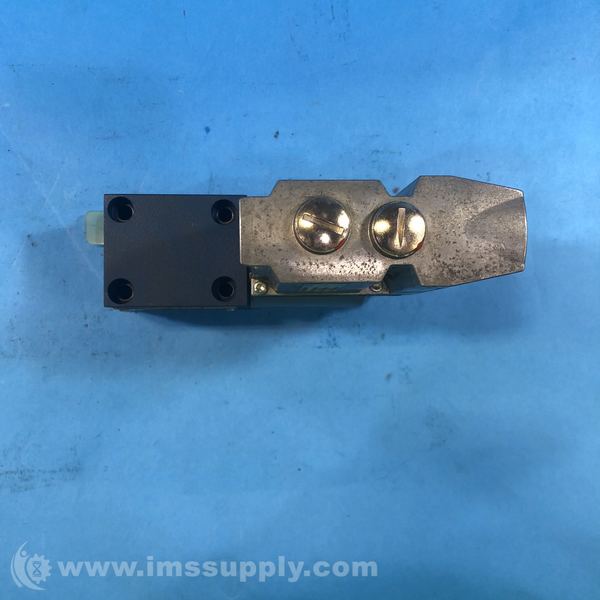

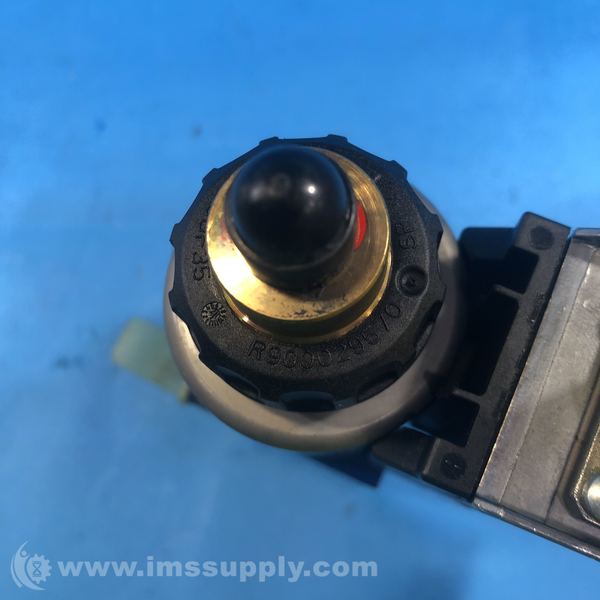

Rexroth R901029969 Proportional Pressure Relief Valve
Proportional pressure relief valve, direct operated, with integrated electronics (OBE)
Specifications
- Size: 6
- Component series: 6X
- Maximum operating pressure: 420 bar
- Maximum flow: 2 l/min
- Pilot oil return: Internal pilot oil return
- Supply Voltage: 24 V DC
- Coil Type: 1600 mA coil
- Electrical connection: Without mating connector; connector DIN EN 175201-804
- Electronics interface: Command value 0 to 10 V
- Seal Material: FKM seals
- Conformity: CE
- Type of actuation: Electrical with integrated electronics
- Type of connection: Subplate mounting
- Hydraulic fluid: HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
- Weight: 2.15 kg
- Installation position: any
- Ambient temperature range: -20 to 50 degrees C
- Maximum set pressure: 315 bar
- Hydraulic fluid temperature range: 20 to 80 degrees C
- Viscosity range: 20 to 380 mm˛/s
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 58 minutes.
