ROSS CONTROLS Y1523C3002 LOCKOUT VALVE
Quick Overview
Manufactured By: ROSS CONTROLS
Manufacturer Part Number: Y1523C3002
IMS Product Code: 1800641
Packaging: Sold Individually
Description:

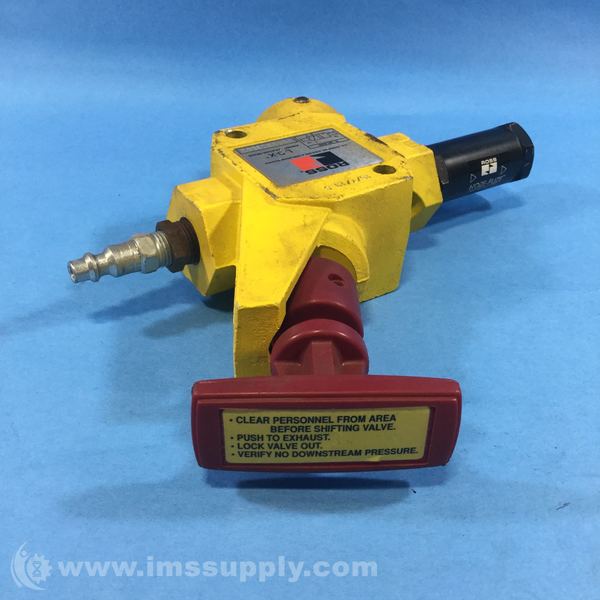

Ross Controls Y1523C3002 Lockout Valve
Manual 3/2 way lockout valve with 3/8 inch NPT inlet and outlet ports and 3/4 inch NPT exhaust port, constructed from cast aluminum with stainless steel spool and fluorocarbon seals.
Specifications
- Series: 15 Series Classic
- Actuation: Manual
- Function: 3/2
- Construction: Spool
- Valve Body Material: Cast Aluminum
- Thread Type: NPT
- Inlet Size: 3/8
- Outlet Size: 3/8
- Exhaust Size: 3/4 inch
- Body Size: 1/2
- Mounting: In-line
- Length: 4.24 in (108 mm)
- Width: 2.0 in (51 mm)
- Height: 8.96 in (228 mm)
- Weight: 2.0
- Ports 1-2 Flow: 4.7 Cv (4600 Nl/min)
- Ports 2-3 Flow: 3.6 Cv (3500 Nl/min)
- Ambient Temperature: 40 to 175 F (4 to 80 C)
- Media Temperature: 40 to 175 F (4 to 80 C)
- Fluid Media: Filtered Air
- Operating Pressure: 0 to 200 psig (0 to 14 bar)
- Poppet/Spool Material: Stainless Steel
- Seal Material: Fluorocarbon
- Safety Category: Category 1
- PL Rating: PL c
- EAC Declaration: Yes
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 30 minutes.
