ROSS 2786A3002 DIRECTIONAL CONTROL VALVE
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: 2786A3002
IMS Product Code: 1941325
Packaging: Sold Individually
Description:

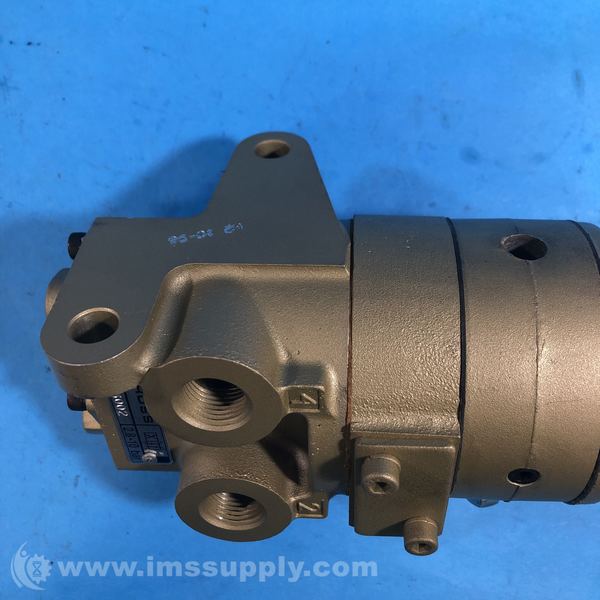

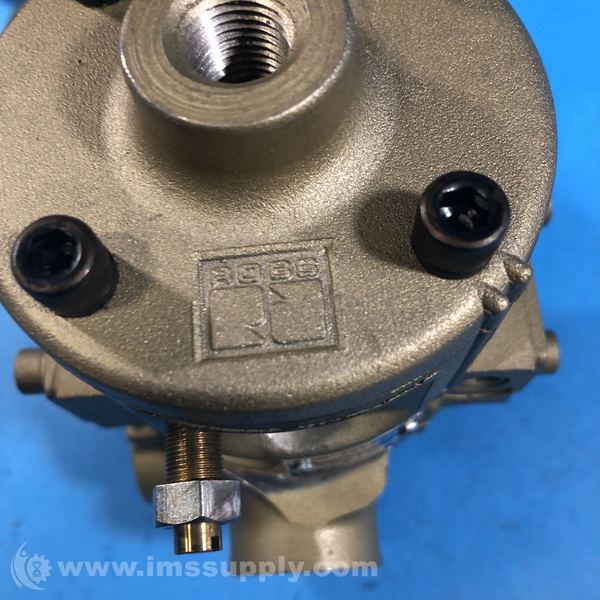

Ross 2786A3002 Directional Control Valve
A pneumatic directional control valve with 4/2 single air pilot function and normally closed default position. It features poppet construction for high dirt tolerance and is suitable for timed sequence actuation.
Specifications
- Series: 27
- Valve Type: Directional Control
- Function: 4/2 Single Air Pilot
- Default Position: Normally Closed
- Return: Spring
- Thread Type: NPT
- Inlet Pipe Size: 3/8"
- Outlet Pipe Size: 3/8"
- Exhaust Pipe Size: 1/2"
- Construction: Poppet
- Mounting: Inline
- Pilot Type: Internal/External
- Manual Override: Not Included
- Size: 3/8"
- Ambient Temperature: -40 to 120 F (-40 to 50 C)
- Media Temperature: -40 to 175 F (-40 to 80 C)
- Fluid Media: Filtered air
- Operating Pressure: 15 to 150 psig (1 to 10 bar)
- Pilot Supply Minimum: Must be equal to or greater than inlet pressure
- Weight: 2.5 lb (1.2 kg)
- Valve Body Material: Aluminum
- Poppet/Spool Material: Aluminum and Stainless Steel
- Seal Material: Buna-N
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 20 minutes.
