ROSS 5322B3071 FILTER/REGULATOR
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: 5322B3071
IMS Product Code: 2161998
Packaging: Sold Individually
Description:

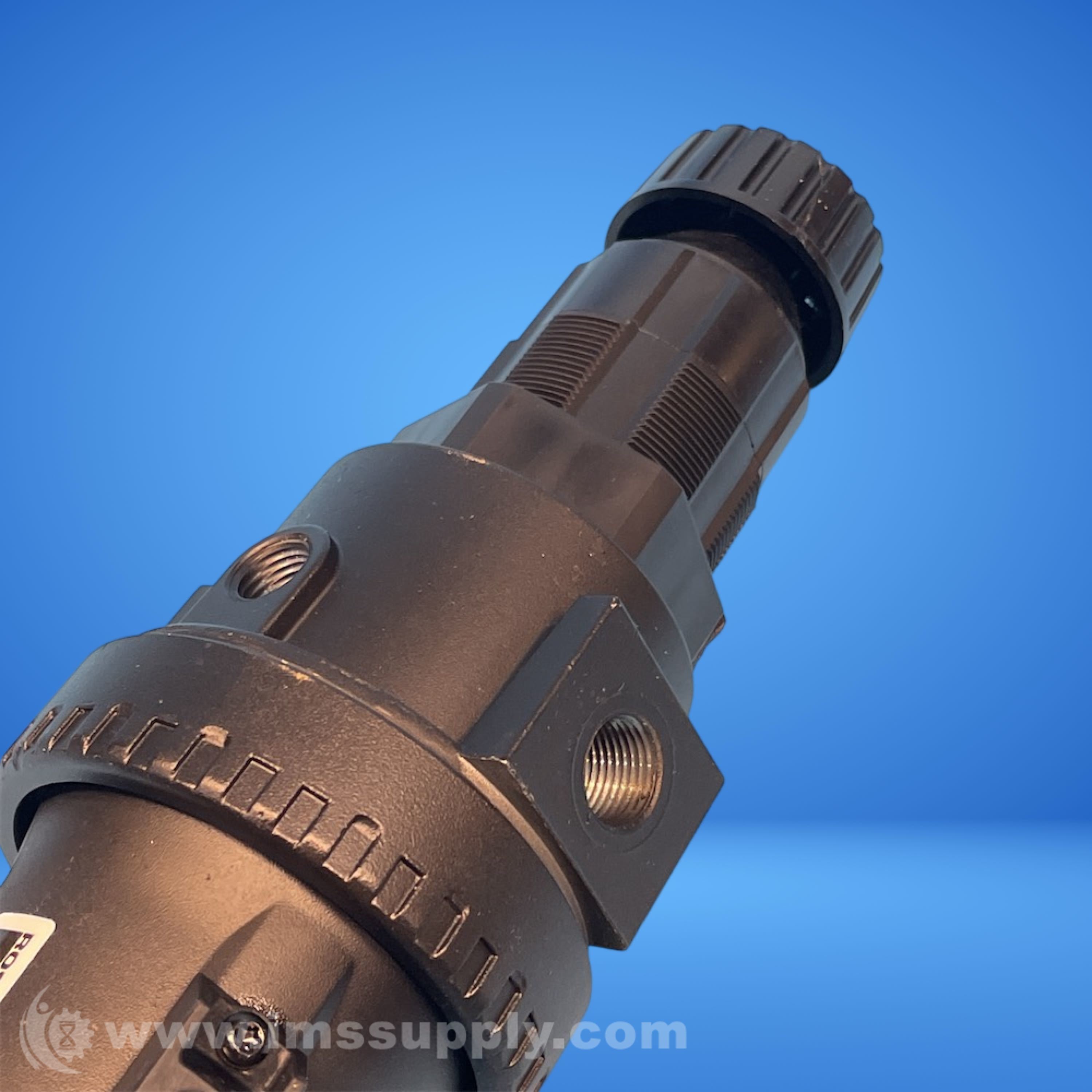

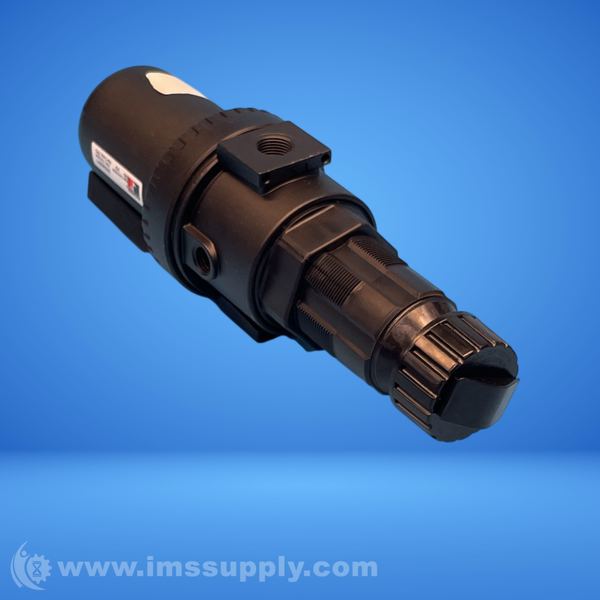

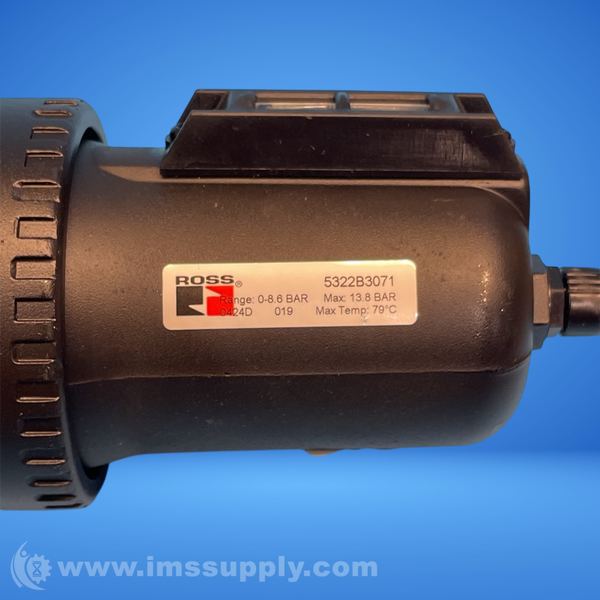

Ross 5322B3071 Filter/Regulator
Integrated filter and regulator assembly with 3/8 NPTF threaded ports, 5 µm filter, automatic drain, and metal bowl.
Specifications
- Port Size: 3/8
- Port Thread: NPTF
- Port Type: Threaded Ports
- Filter Type: 5 µm
- Drain Type: Automatic
- Bowl Type: Metal
- Filter Material: Polyethyene
- Flow Option: Standard
- Adjustment: Knob
- Relieving: Self-Relieving
- Construction: Piston
- Gauge psig (bar): 0 - 200 (0 - 14)
- Mounting: Modular
- Maximum Flow: 95 scfm
- Flow Media: Compressed Air
- Operating Pressure Range: 0 to 200 psig (0 to 14 bar)
- Regulated Pressure Range psig (bar): 0 - 125 (0 - 8.6)
- Media Temperature Range: 40 to 175 F (4 to 79 C)
- Ambient Temperature Range: 40 to 175 F (4 to 79 C)
- Weight: 1.81 kgs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
