ROSS Y1523C4002 PNEUMATIC SAFETY LOCKOUT VALVE
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: Y1523C4002
IMS Product Code: 1804986
Packaging: Sold Individually
Description:

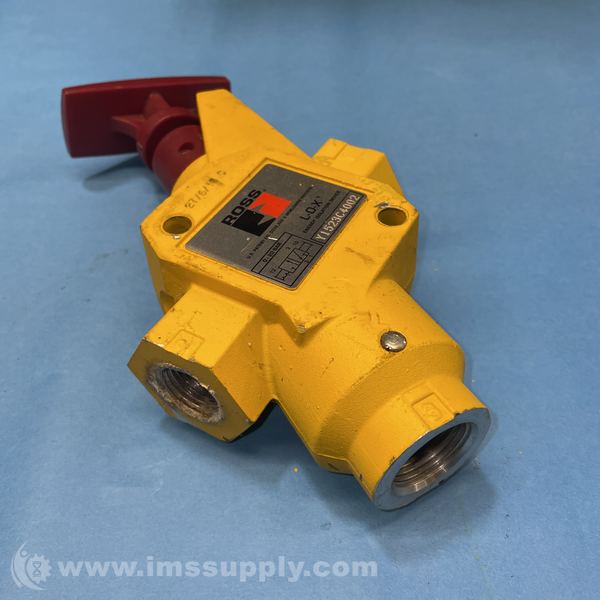

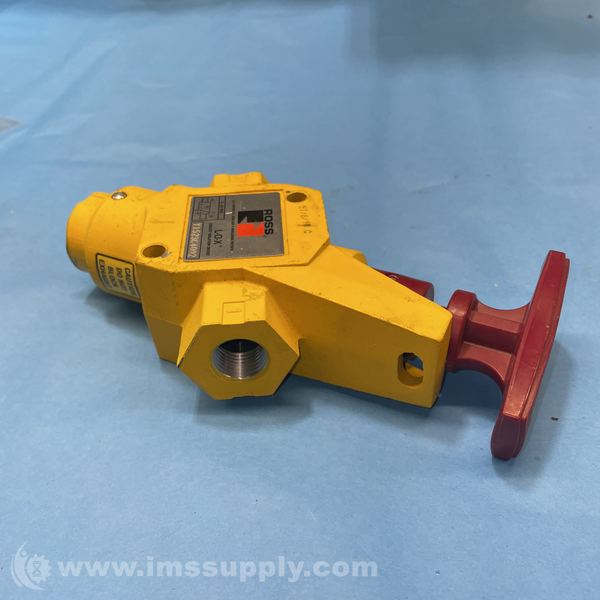

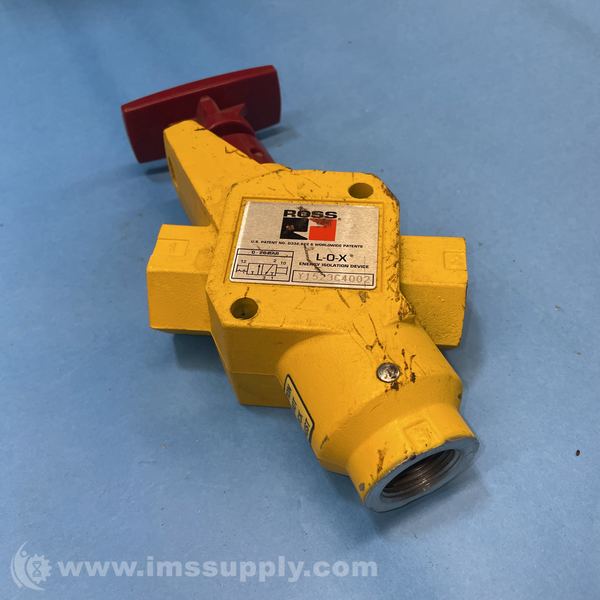

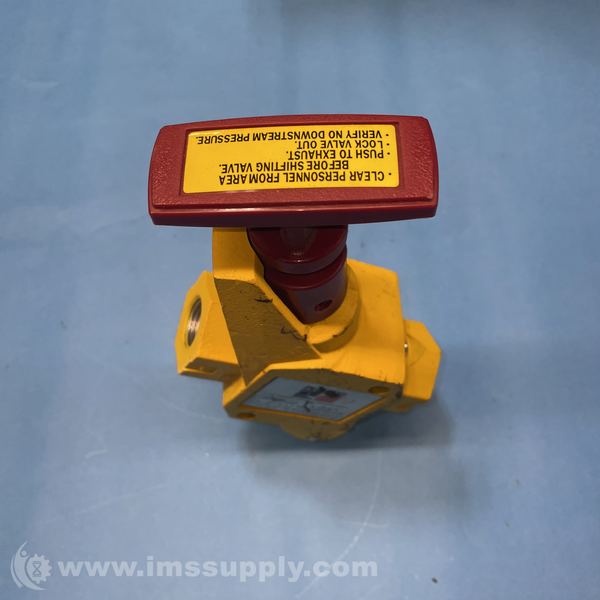

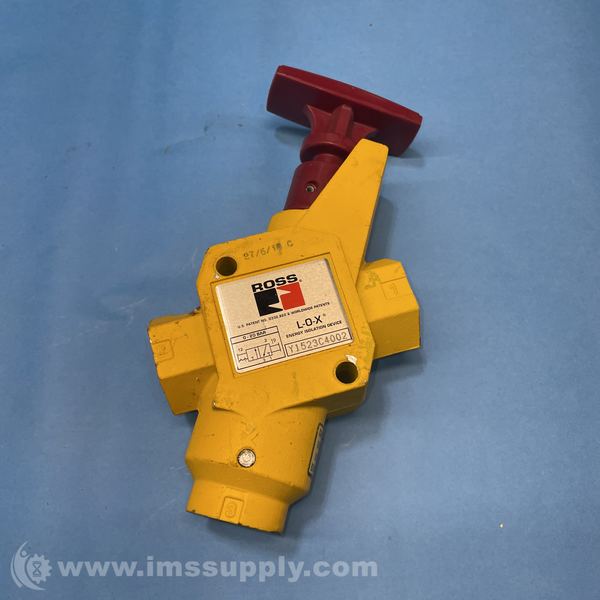

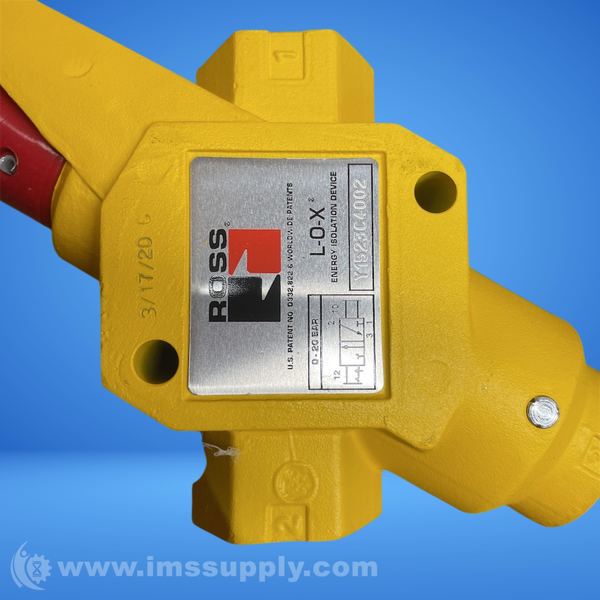

Ross Y1523C4002 Pneumatic Safety Lockout Valve
Manual 3/2 way pneumatic lockout valve with 1/2" NPT inlet and outlet ports and 3/4" NPT exhaust port. Constructed from cast aluminum with stainless steel spool and fluorocarbon seals. Operates between 0-200 psig (0-14 bar) with filtered air media. Category 1 safety rating with PL c performance level.
Specifications
- Series: 15 Series Classic
- Actuation: Manual
- Function: 3/2
- Construction: Spool
- Valve Body Material: Cast Aluminum
- Thread Type: NPT
- Inlet Size: 1/2
- Outlet Size: 1/2
- Exhaust Size: 3/4"
- Body Size: 1/2
- Mounting: In-line
- Length: 4.24 in (108 mm)
- Width: 2.0 in (51 mm)
- Height: 8.96 in (228 mm)
- Weight: 2.0
- Ports 1-2 Flow: 7.1 Cv (7000 Nl/min)
- Ports 2-3 Flow: 4.0 Cv (3900 Nl/min)
- Ambient Temperature: 40 to 175 F (4 to 80 C)
- Media Temperature: 40 to 175 F (4 to 80 C)
- Fluid Media: Filtered Air
- Operating Pressure: 0 to 200 psig (0 to 14 bar)
- Poppet/Spool Material: Stainless Steel
- Seal Material: Fluorocarbon
- Safety Category: Category 1
- PL Rating: PL c
- EAC Declaration: Yes

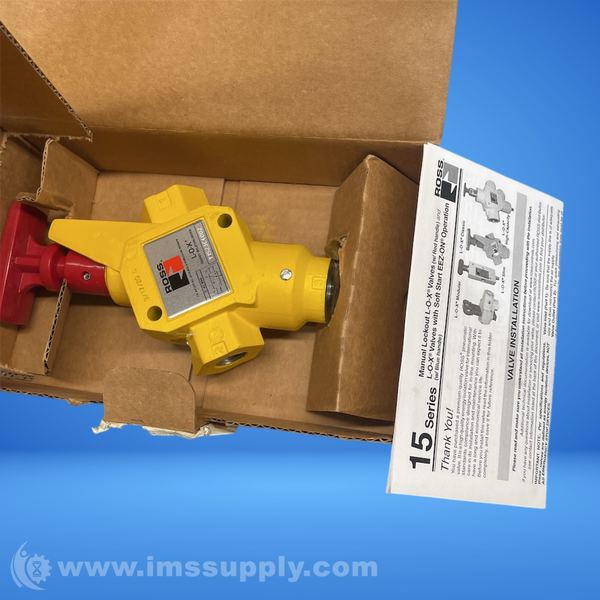

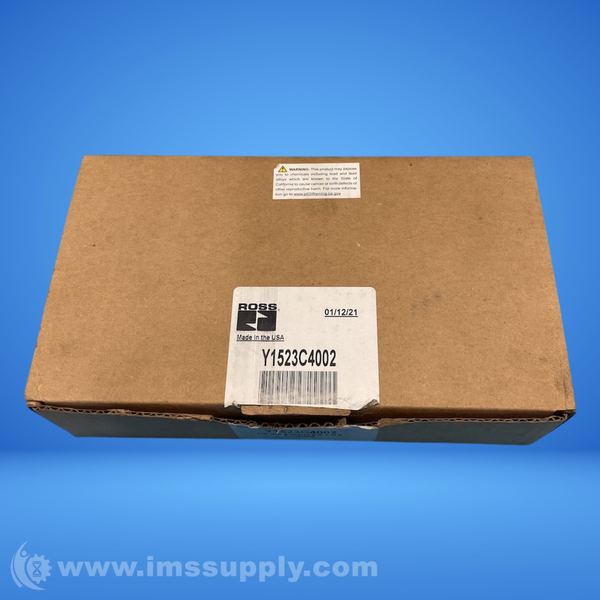

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 10 hours and 41 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 41 minutes.
Used (Special):
Part has attachment.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 41 minutes.
