ROSS Y2783A7006 3/2 WAY PNEUMATIC VALVE
Quick Overview
Manufactured By: ROSS
Manufacturer Part Number: Y2783A7006
IMS Product Code: 2135776
Packaging: Sold Individually
Description:

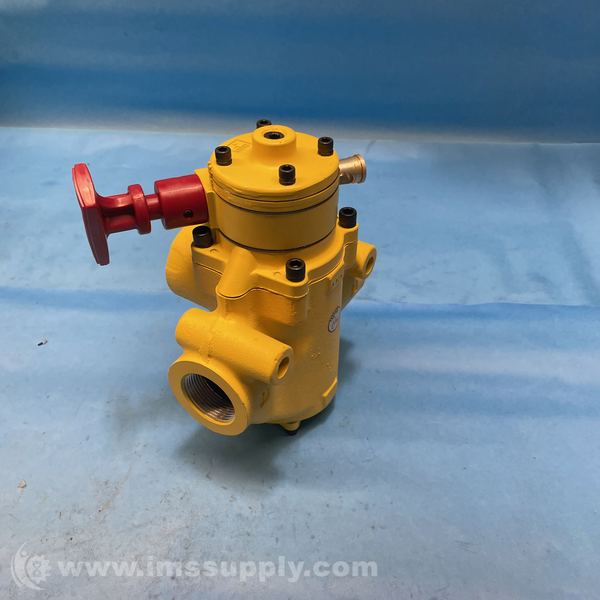

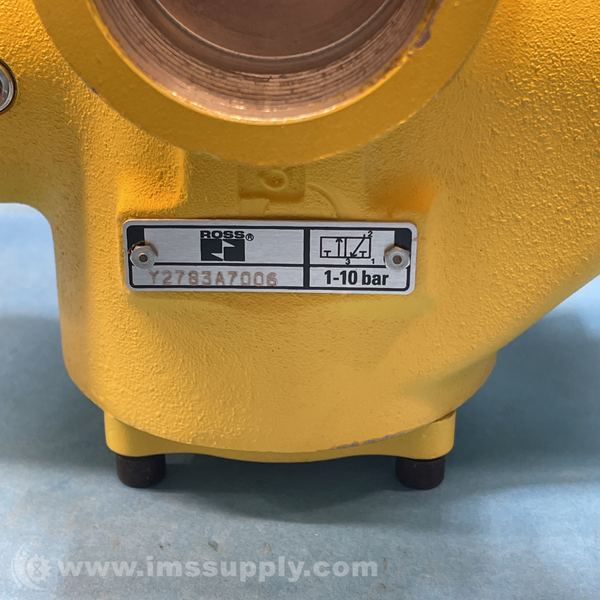

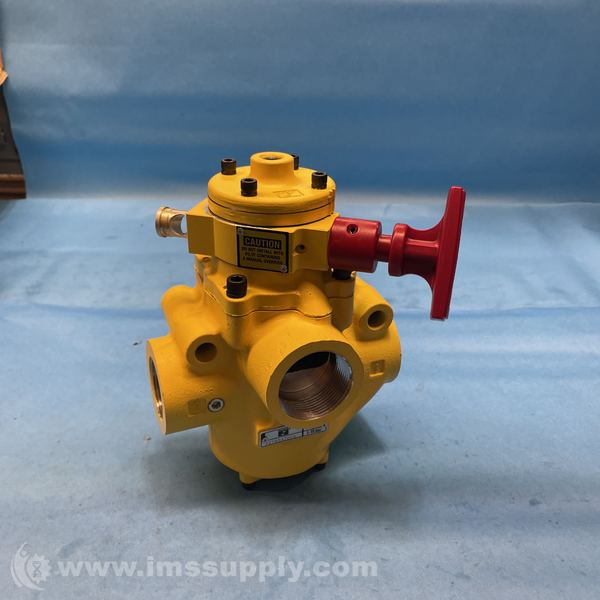

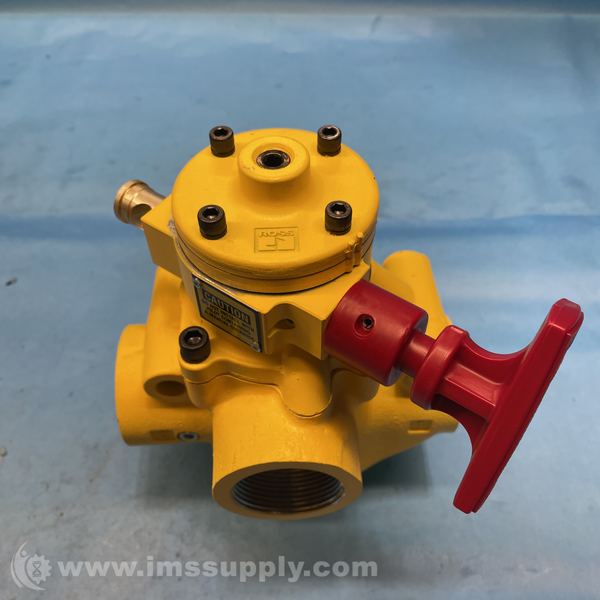

Ross Y2783A7006 3/2 Way Pneumatic Valve
3/2 way pneumatic valve with manual L-O-X control, 1-1/4" NPT ports, cast aluminum body, and pneumatic actuation.
Specifications
- Series: 27 Series
- Actuation: Pneumatic
- Function: 3/2 Single Pilot
- Construction: Poppet
- Thread Type: NPT
- Inlet Size: 1-1/4"
- Outlet Size: 1-1/4"
- Exhaust Size: 1-1/2"
- Body Size: 1-1/4"
- Mounting: Inline
- Length: 7.94 in (202 mm)
- Width: 6.80 in (173 mm)
- Height: 8.52 in (216 mm)
- Weight: 7.0 lb (3.2 kg)
- Cv (1-2): 30
- Cv (2-3): 32
- Ambient Temperature: 40 to 120 F (4 to 50 C)
- Media Temperature: 40 to 175 F (4 to 80 C)
- Fluid Media: Filtered Air
- Operating Pressure: 15 to 150 psig (1 to 10 bar)
- Valve Body Material: Cast Aluminum
- Poppet/Spool Material: Acetal and Stainless Steel
- Seal Material: Buna-N
- Safety Category: Category 1
- PL Rating: PL c
- Safety Integrity Level: SIL 2

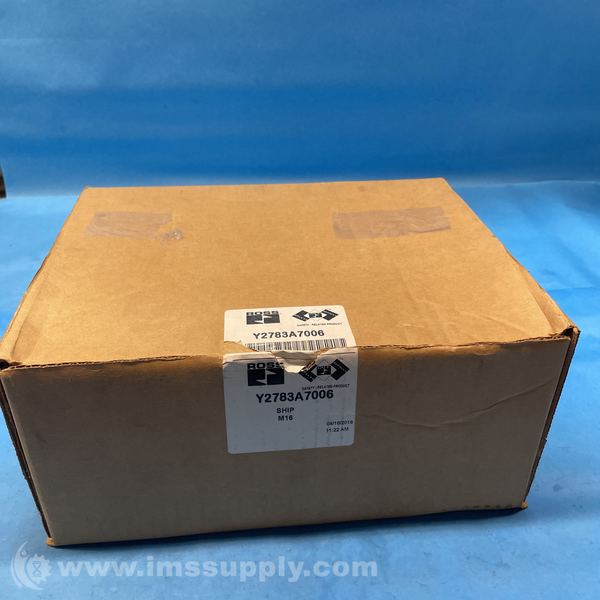

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
