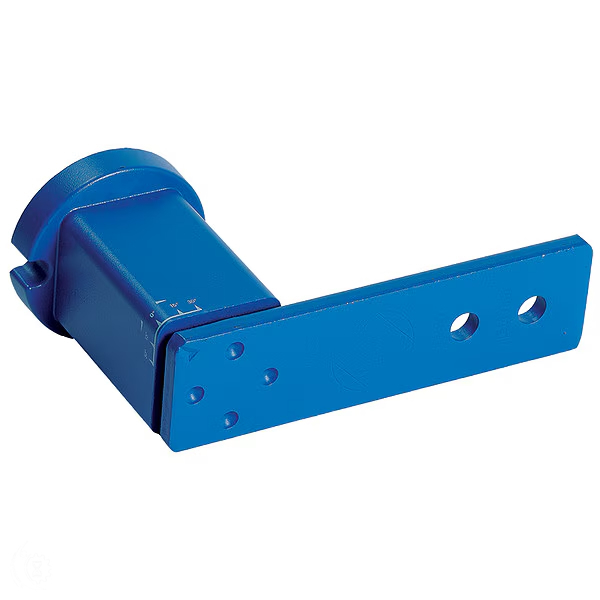

ROSTA 06011001 ELASTOMERIC TENSIONER, 20 MM ARM WIDTH
Starting At: $30.00
Quick Overview
Manufactured By: ROSTA
Manufacturer Part Number: 06011001
IMS Product Code: 2149859
Packaging: Sold Individually
Description:
Rosta 06011001 Elastomeric Tensioner, 20 mm Arm Width
Specifications:
- Arm Length to End: 90 mm
- Arm Length to Hard Position Hole: 60 mm
- Mounting Bolt Thread Size: M6
- Arm Length to Normal Position Hole: 80 mm
- Idler Bolt Thread Size: M6
- For Belt Width: 1 3/16 in
- Arm Width: 20 mm
- Size: SE 11
- Item: Elastomeric Tensioner
- Arm Material: Steel
- Application: Chain and Belt Drives
- Features: Automatic Re-Tensioning, Best Possible Transfer of Power, Compensation for Belt Elongation, Pressing, Guiding and Vibration Damping, Quiet and Smooth Running
- Arm Rotation: 30 Degrees
- Housing Material: Steel
- Maximum Travel at 30 Degrees: 40 mm
- Idler Hole System of Measurement: Metric
- Maximum Operating Temperature: 74 Degrees C
- Maximum Travel at 20 Degrees: 28 mm
- Insert Material: Rubber
- Minimum Operating Temperature: -40 Degrees C
- Finish: Painted
- Travel at Normal Position: 40 N
- Tension Force at Normal Position: 96 N
- Tension Force at Hard Position: 128 N
- Travel at Hard Position: 30 N
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 3 to 5 Days
