RULAND BCK 32-16MM CLAMP BELLOWS COUPLING
Quick Overview
Manufactured By: RULAND
Manufacturer Part Number: BCK 32-16MM
IMS Product Code: 1906182
Packaging: Sold Individually
Description:

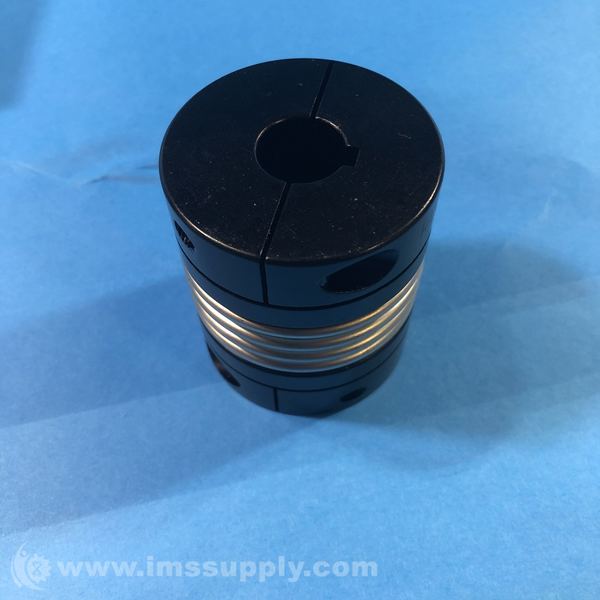

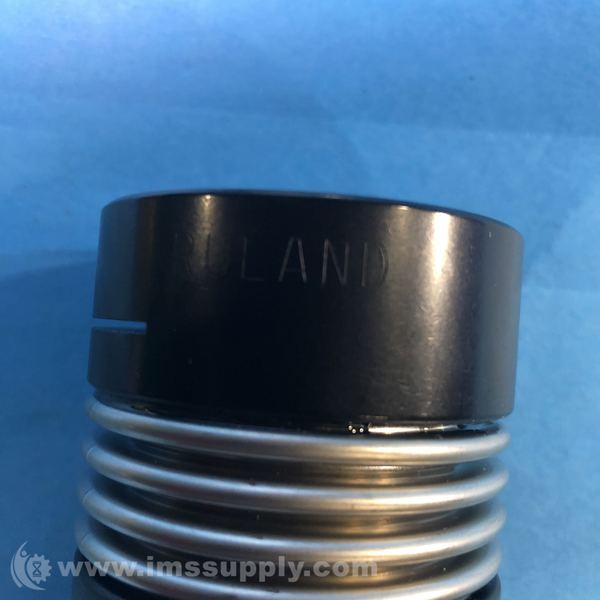

Ruland BCK 32-16MM Clamp Bellows Coupling
Clamp bellows coupling with bores 16mm x 0.625in, high torsional stiffness, zero-backlash, and anodized aluminum construction.
Specifications
- Material Specification: Hubs: 2024-T351 Aluminum Bar, Bellows: Type 321 Stainless Steel
- Bore Dia.: 16 mm x 0.625 in
- Outside Dia.: 2.000 in (50.8 mm)
- Overall Length: 2.413 in (61.3 mm)
- Torsional Stiffness: 950 lb-in/Deg (108 Nm/Deg)
- Max. RPM: 10000 RPM
- Max. Parallel Misalignment: 0.010 in (0.25 mm)
- Max. Angular Misalignment: 2.0 deg
- Static Torque: 400 lb-in (45.2 Nm)
- Dynamic Torque Reversing: 100 lb-in (11.30 Nm)
- Dynamic Torque Non-Reversing: 200 lb-in (22.60 Nm)
- Axial Motion: 0.020 in (0.51 mm)
- Temperature: -40F to 200F (-40C to 93C)
- Style: Clamp
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 2 In Stock
Ships on Monday, March 16, 2026
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
