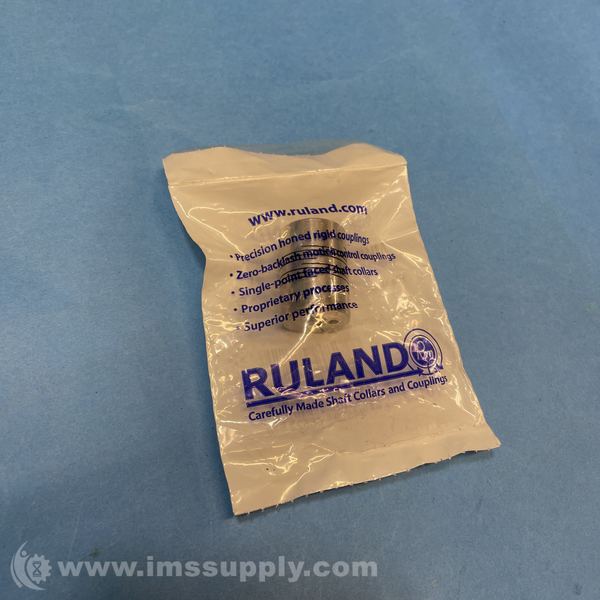

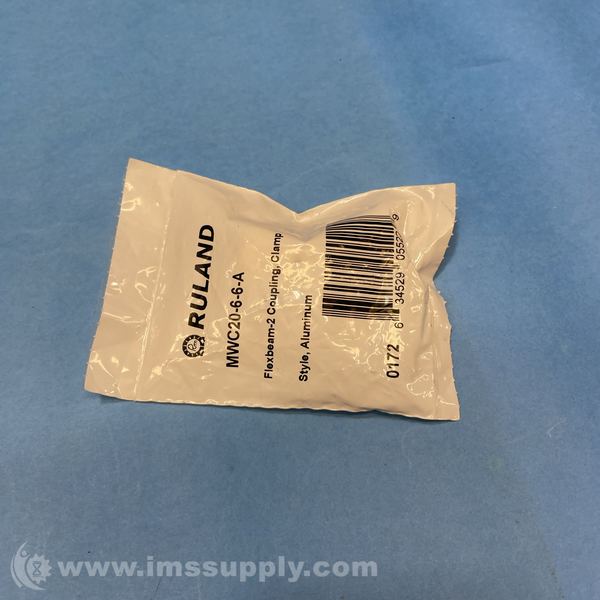

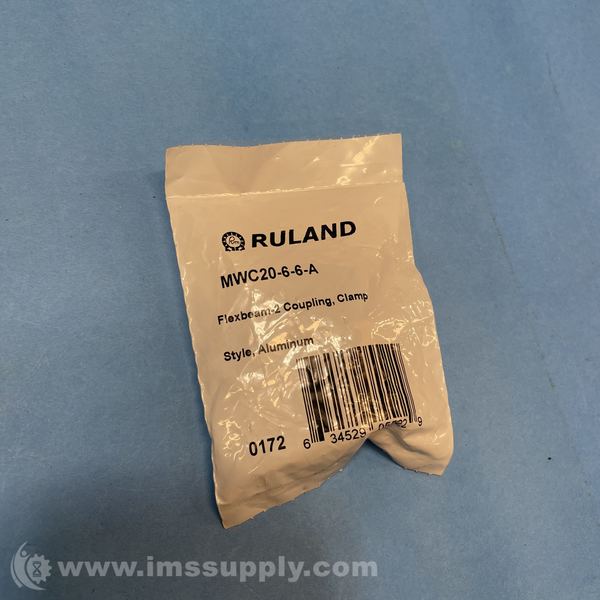

RULAND MWC20-6-6-A 4 BEAM CLAMP COUPLING
Quick Overview
Manufactured By: RULAND
Manufacturer Part Number: MWC20-6-6-A
IMS Product Code: 2136797
Packaging: Sold Individually
Description:
Ruland MWC20-6-6-A 4 Beam Clamp Coupling
6mm x 6mm Four Beam Coupling, Aluminum, Clamp Style, 20.0mm OD, 28.0mm Length
Specifications
- Outer Diameter (OD): 20.0 mm
- Length (L): 28.0 mm
- Bore (B1): 6 mm
- Bore (B2): 6 mm
- Bore Tolerance: +0.025 mm / -0.000 mm
- Material: 7075-T651 Extruded and Drawn Aluminum Bar
- Cap Screw: M3
- Screw Material: Alloy Steel
- Seating Torque: 2.1 Nm
- Number of Screws: 2 ea
- Dynamic Torque Reversing: 0.29 Nm
- Angular Misalignment: 3.0 degrees
- Dynamic Torque Non-Reversing: 0.58 Nm
- Parallel Misalignment: 0.20 mm
- Static Torque: 1.15 Nm
- Axial Motion: 0.12 mm
- Torsional Stiffness: 2.48 Deg/Nm
- Maximum Speed: 6,000 RPM
- Temperature: -40 to 107 degrees C
- Finish Specification: Bright, No Plating
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
