SAGINAW SCE-808ELJ CARBON STEEL JUNCTION ENCLOSURE
Quick Overview
Manufactured By: SAGINAW CONTROL AND ENGINEERING
Manufacturer Part Number: SCE-808ELJ
IMS Product Code: 1911663
Packaging: Sold Individually
Description:

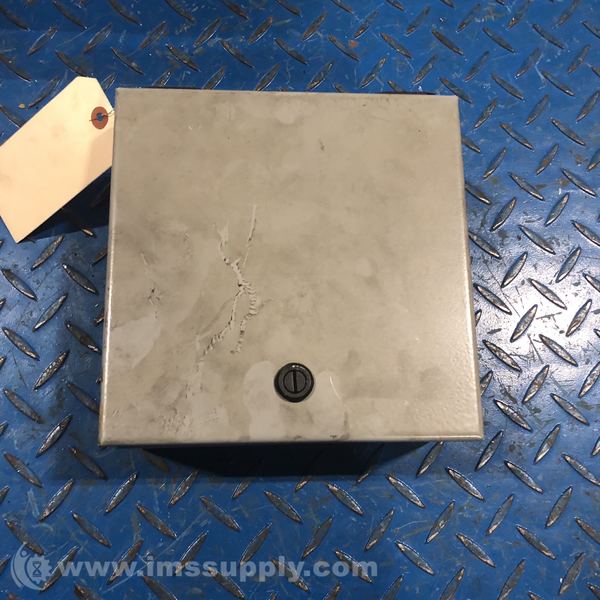

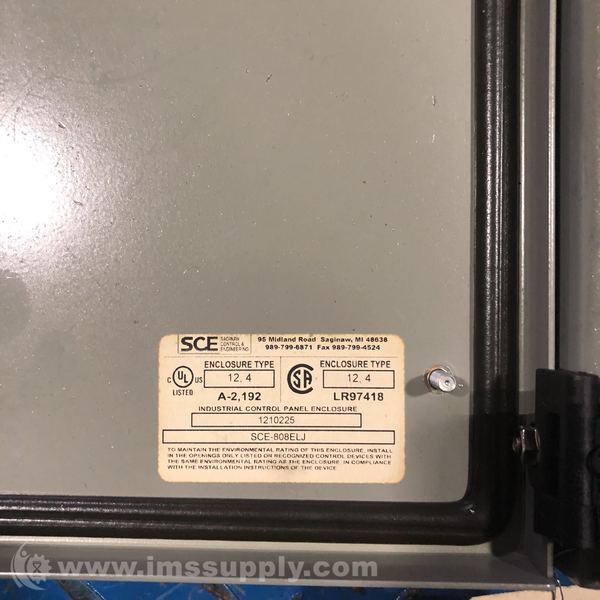

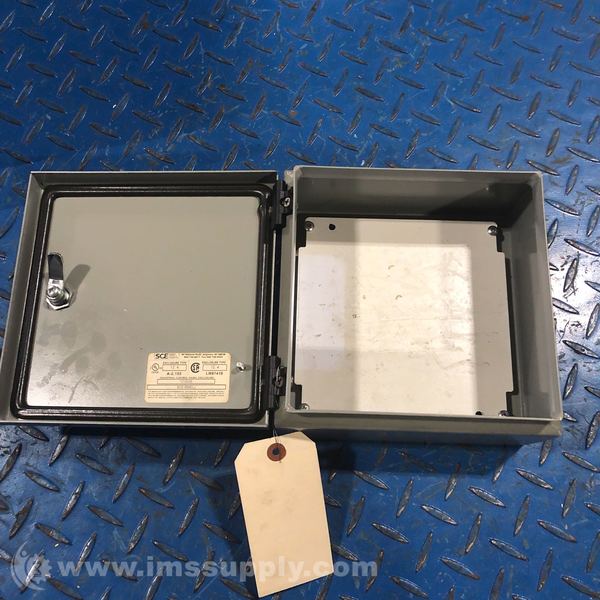

Saginaw SCE-808ELJ Carbon Steel Junction Enclosure
Carbon steel junction enclosure with ANSI-61 gray powder coating, 8x8x4 inches, NEMA 3R/4/12/13 rating, single door, quarter-turn latch.
Specifications
- Material: 0.063" carbon steel
- Dimensions: 8" H x 8" W x 4" D
- NEMA Rating: 3R, 4, 12, 13
- Finish: ANSI-61 gray powder coating
- Door: Single door with 180-degree opening
- Latch: Black mini quarter-turn latch
- Grounding: Ground stud on door and body
- Mounting: Wall mountable with mounting feet
- Seams: Continuously welded and ground smooth
- Gasket: Oil and water-resistant pour-in-place gasket
- Industry Standards: NEMA Type 3R, 4, 12, 13; UL Listed Type 3R, 4, 12; CSA Type 3R, 4, 12; IEC 60529 IP66
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 48 minutes.
