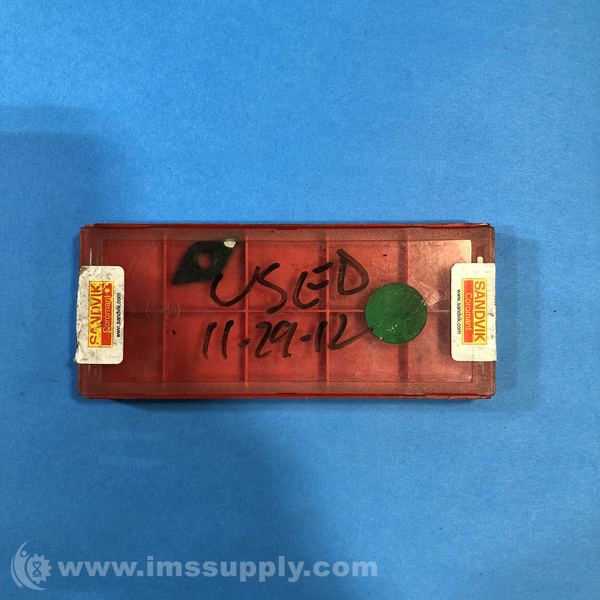

SANDVIK 3205 TURNING INSERT
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: 3205
IMS Product Code: 1937332
Packaging: Sold Individually
Sold Individually
Set of 2
Description:
Sandvik 3205 Turning Insert
Carbide turning insert with CVD-TiCN+Al2O3+TiN coating, SNMG 432 geometry, negative rake, KM chipbreaker.
Specifications
- Series: T-Max P
- Insert Style: SNMG
- Insert Size: 432
- Shape: Squared
- Maximum Depth of Cut: 6 mm
- Inscribed Circle: 1/2 in
- Thickness: 0.187 in
- Width: 1/2 in
- Length: 1/2 in
- Seat Size: 12
- Rake: Negative
- Chipbreaker: KM
- Corner Radius: 0.0312 in
- Hole Diameter: 0.2029 in
- Manufacturer's Grade: 3205
- ANSI Code: SNMG 432-KM 3205
- ISO Code: SNMG 12 04 08-KM 3205
- Included Angle: 90 deg
- Relief Angle: 0 deg
- Cutting Direction: Neutral
- Material: Carbide
- Finish: CVD-TiCN+Al2O3+TiN Coated
- Material Grade: K
- For Use On: Cast Iron
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 11 hours and 49 minutes.
