SANDVIK 570-DDUNL-32-11 TURNING TOOL HOLDER
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: 570-DDUNL-32-11
IMS Product Code: 1932026

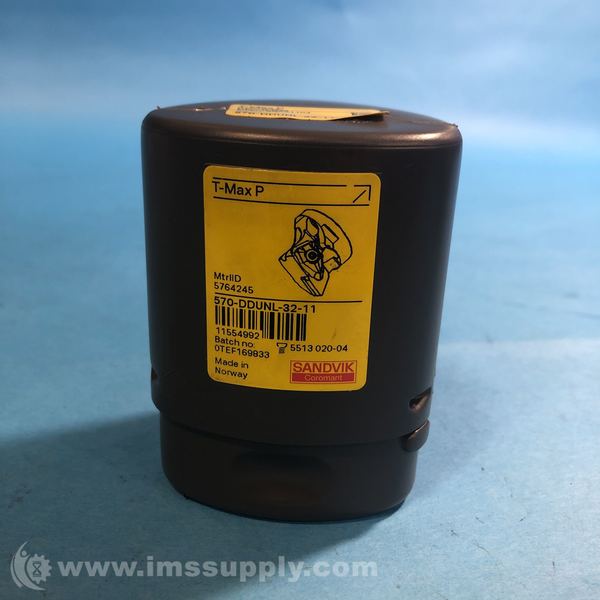

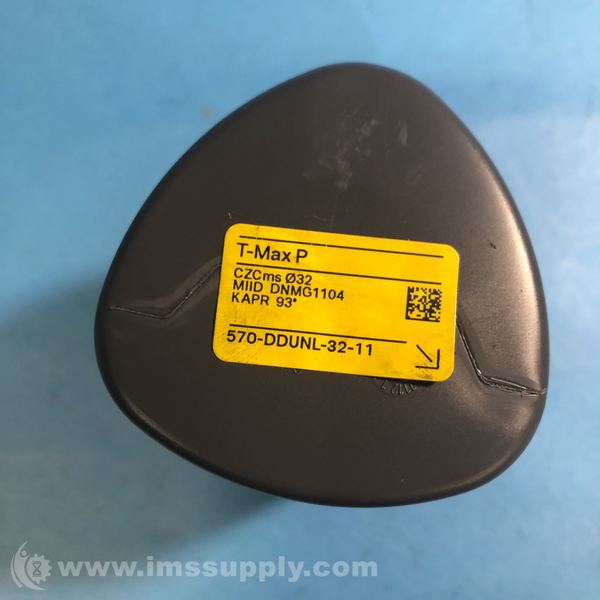

Packaging: Sold Individually
Description:

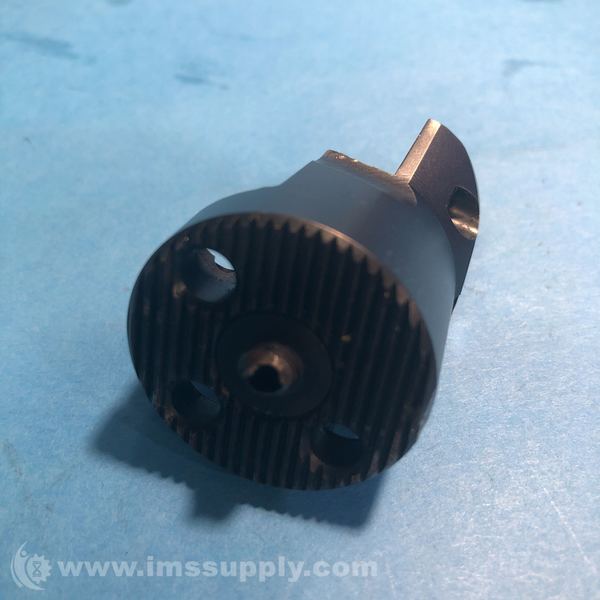

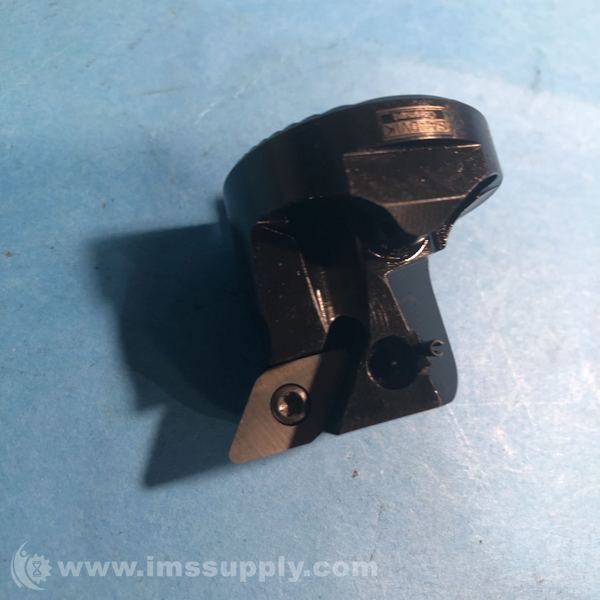

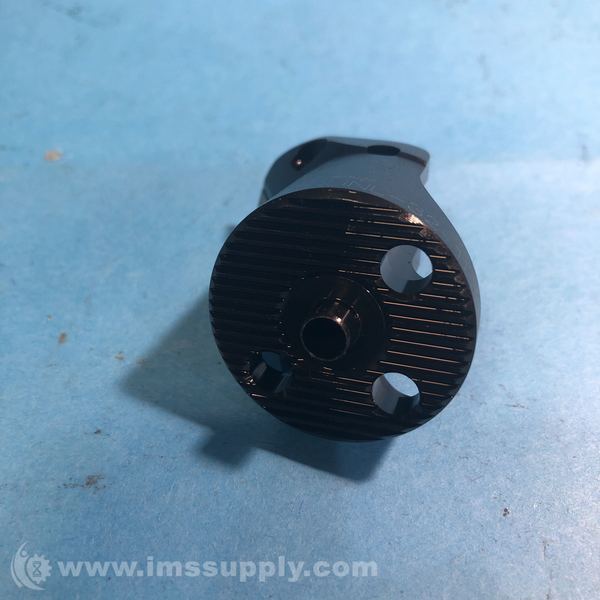

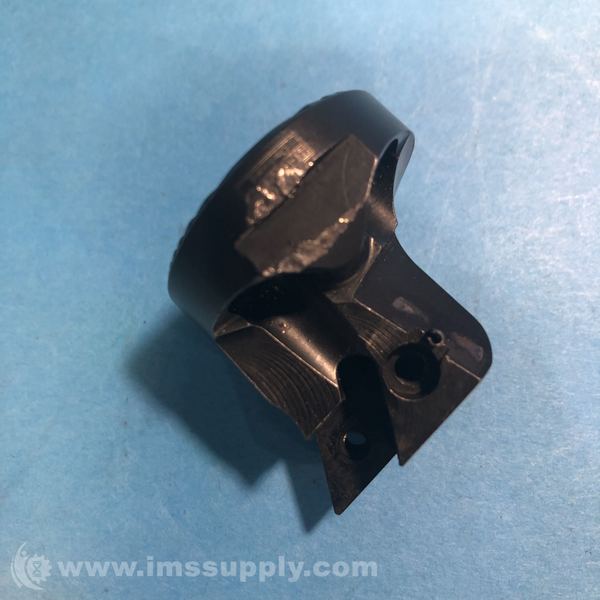

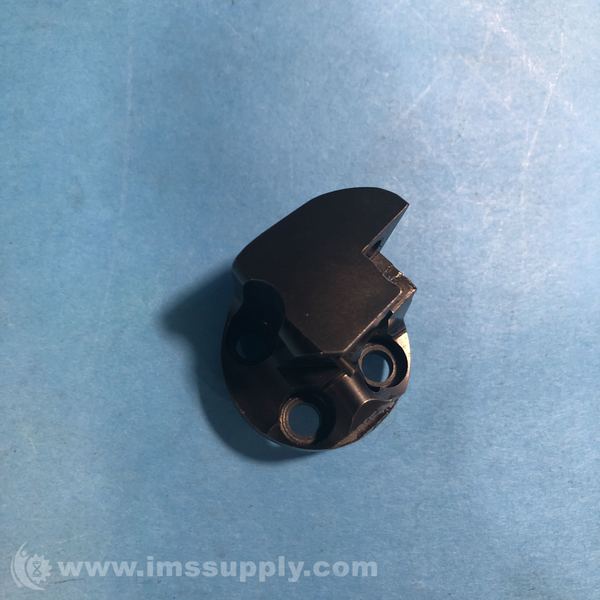

Sandvik 570-DDUNL-32-11 Turning Tool Holder
Turning tool holder with coolant thru capability, 32 mm shank diameter, left hand cutting direction, flanged w/ screw shank type.
Specifications
- Connection Diameter Machine Side (DCONMS): 32 mm
- Cutting Direction (HAND): Left Hand
- Functional Length (LF): 35.8 mm
- Coolant Supply Property (CSP): Coolant Thru
- Overall Length (OAL): 35.8 mm
- Shank Type: Flanged w/ Screw
- Master Insert Identification (MIID): DNMG 332
- Style: DDUNL
- Minimum Bore Diameter (DMIN): 1.575?
- Machine Interface: BT40, CAT40, HSK-A63
- Clamping Type: ER Collet Chuck, Hydraulic Chuck, Shrink Fit Holder, Side-Lock
- Maximum Speed: up to 40,000 rpm
- Balance Grade: G2.5 @ 20,000 rpm
- Tool Runout: =0.003mm (3µm)
- CP - Coolant Pressure: 4000000Pa
- DCON - Connection Diameter: 32mm
- KAP - Kappa (z-axis Rot): 0deg
- TQ - Torque: 1.7Nm
- WT - Weight Of Item: 0.115kg
- OHX - Maximum Overhang: 32mm
- KAPR - Tool Cutting Edge Angle: 93deg
- RMPX - Maximum Ramping Angle: 27deg
- DMIN - Minimum Bore Diameter: 40mm
- BAWS - Workpiece Side Body Angle: 0deg
- BAMS - Machine Side Body Angle: 0deg
- WF - Functional Width: 22mm
- HF - Functional Height: 0mm
- GAMO - Orthogonal Rake Angle: -6deg
- LAMS - Inclination Angle: -10deg
- AN - Clearance Angle Major: 0deg
- IC - Inscribed Circle Diameter: 9.525mm
- RE - Corner Radius: 0.79375mm
- Insert Thickness: 4.7625mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
