SANDVIK COROMANT 5724826, CNMG432 QM GRADE 1115 CARBIDE TURNING
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: 5724826
IMS Product Code: 1791126
Packaging: Sold Individually
Description:

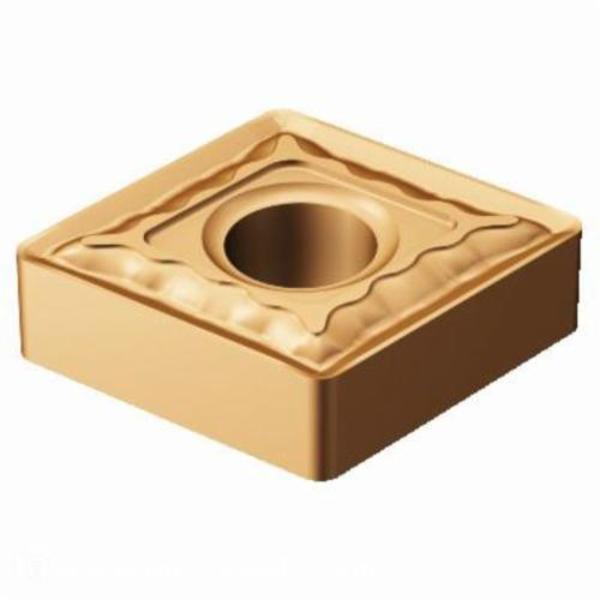

Sandvik Coromant 5724826, CNMG432 QM Grade 1115 Carbide Turning Insert
TiAlN/AlCr2O3 Finish, 80° Diamond, 1/2" Inscr Circle, 3/16" Thick, 1/32" Corner Radius
Specifications:
| Insert Style | CNMG |
| Insert Size | 432 |
| Material | Carbide |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Thickness (mm) | 4.76 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (mm) | 0.7938 |
| Corner Radius (Decimal Inch) | 0.0313 |
| Manufacturer's Grade | 1115 |
| Coating | TiAlN/AlCr2O3 |
| Chip breaker | QM |
| Length (mm) | 12.10 |
| Length (Decimal Inch) | 0.4762 |
| Insert Length (Decimal Inch) | 0.4762 |
| OverallLength (mm) | 12.90 |
| Overall Length (Decimal Inch) | 0.5077 |
| Hole Diameter (mm) | 5.16 |
| Hole Diameter (Decimal Inch) | 0.2030 |
| ISO Number | CNMG 12 04 08-QM 1115 |
| Relief Angle | 0 |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
