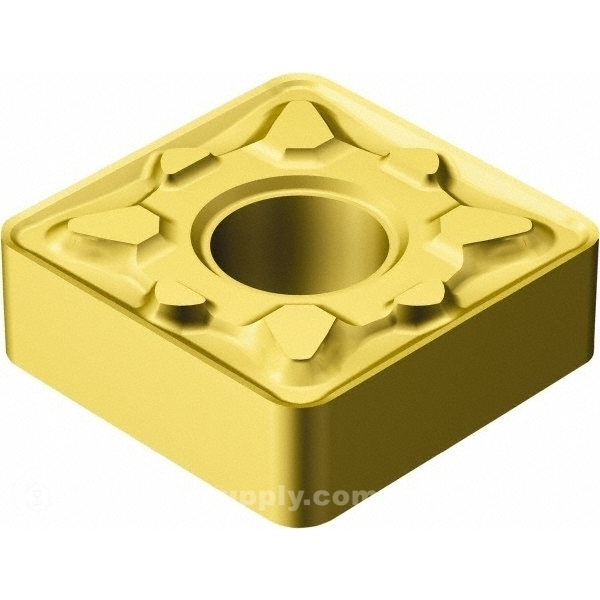

SANDVIK COROMANT 5750133 INSERT TURNING SIZE 432 CARBIDE GRADE
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: 5750133
IMS Product Code: 1791172
Packaging: Sold Individually
Description:
Sandvik Coromant 5750133 Insert Turning Size 432 Carbide Grade 2035 Snmg Style Square 1/2 In Inscribed Circle Chipbreaker Mm
Specifications:
- Insert Style SNMG
- Insert Size 432
- Material Carbide
- Inscribed Circle 12.70
- Inscribed Circle 0.5000
- Inscribed Circle 1/2
- Thickness 3/16
- Thickness 0.1875
- Thickness 4.76
- Corner Radius 1/32
- Corner Radius 0.7938
- Corner Radius 0.0313
- Manufacturer's Grade 2035
- Coating TiAlN/TiN
- Chip breaker MM
- Length (mm) 11.90
- Length (Decimal Inch) 0.4685
- Insert Length (Decimal Inch) 0.4685
- OverallLength (mm) 12.70
- Overall Length (Decimal Inch) 0.5000
- Hole Diameter (mm) 5.16
- Hole Diameter (Decimal Inch) 0.2030
- ISO Number SNMG 12 04 08-MM 2035
- Relief Angle 0
- Included Angle 90
- Insert Holding Method Pin & Clamp
- Shape Square
