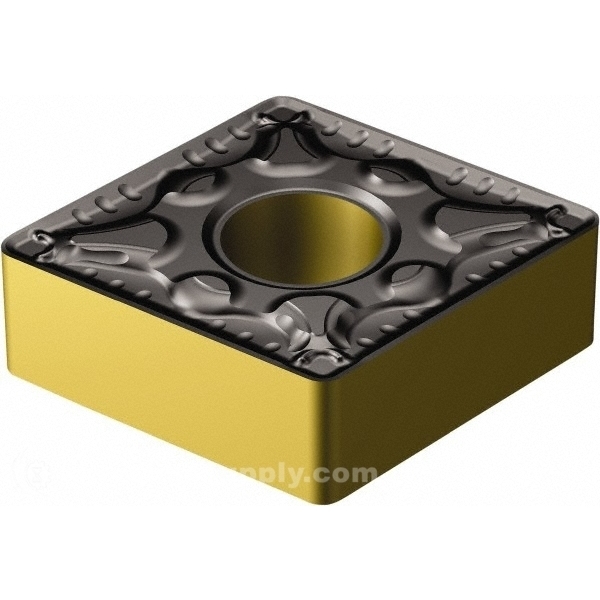

SANDVIK COROMANT 6265887 INSERT CARBIDE CNMG543-PM 4325
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: 6265887
IMS Product Code: 1790607
Packaging: Sold Individually
Description:
Sandvik Coromant 6265887 Insert Carbide Cnmg543-Pm 4325
Specifications:
- Insert Style CNMG
- Insert Size 543
- Material Carbide
- Inscribed Circle 15.88
- Inscribed Circle 0.6250
- Inscribed Circle 5/8
- Thickness 1/4
- Thickness 0.2500
- Thickness 6.35
- Corner Radius 3/64
- Corner Radius 1.1906
- Corner Radius 0.0469
- Manufacturer's Grade 4325
- Coating TiCN/AI2O3/TiN
- Chip breaker PM
- Length (mm) 14.92
- Length (Decimal Inch) 0.5874
- Insert Length (Decimal Inch) 0.5874
- OverallLength (mm) 16.12
- Overall Length (Decimal Inch) 0.6346
- Hole Diameter (mm) 6.35
- Hole Diameter (Decimal Inch) 0.2500
- ISO Number CNMG 16 06 12-PM 4325
- Relief Angle 0
- Included Angle 80
- Insert Holding Method Pin & Clamp
- Shape Diamond
