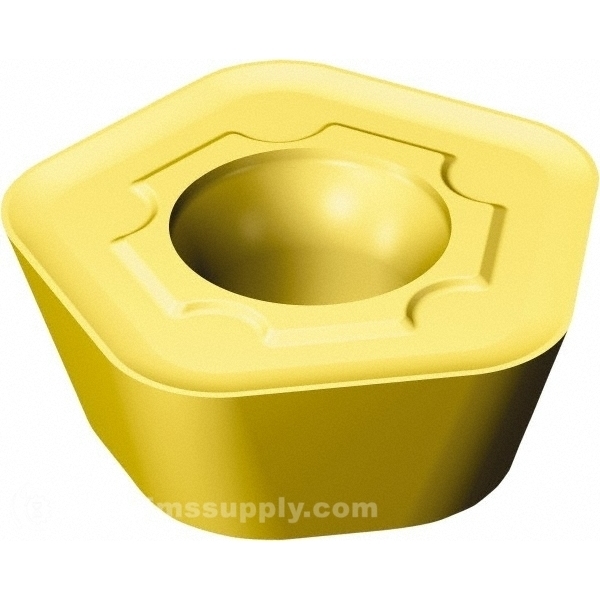

SANDVIK COROMANT 6289923 INSERT CARBIDE INDEXABLE
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: 6289923
IMS Product Code: 1790492
Packaging: Sold Individually
Description:
Sandvik Coromant 6289923 Insert Carbide Indexable 419N-140530E-Sm 2040
Specifications:
- Insert Style 419
- Insert Size 14
- Material Carbide
- Manufacturer's Grade 2040
- Coating Al2O3/TiN/TiCN
- Length 9.00
- Inscribed Circle 13.50
- Inscribed Circle 0.5315
- Thickness 5.47
- Thickness 0.2154
- Corner Radius (Decimal Inch) 0.1181
- Corner Radius (mm) 3.00
- Hole Diameter (mm) 5.50
- Hole Diameter (Decimal Inch) 0.2165
- Rake Angle 5
- Rake Positive
- Coating Process MTCVD
- Included Angle 108
- Shape Pentagon
- Insert Hand Neutral
- Chipbreaker SM
- Maximum Depth of Cut (mm) 2.00
- Maximum Depth of Cut (Decimal Inch) 0.0787
- Cutting Edge Style Honed
