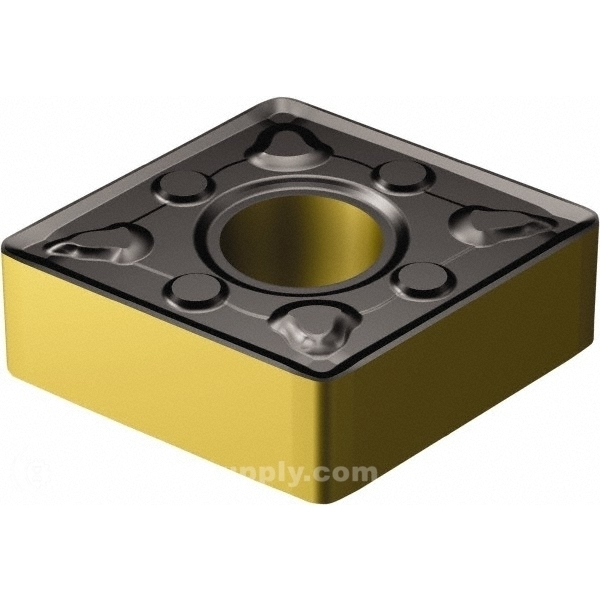

SANDVIK COROMANT 6533095 INSERT CARBIDE CNMG432WMX 4315
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: 6533095
IMS Product Code: 1790907
Packaging: Sold Individually
Description:
Sandvik Coromant 6533095 Insert Carbide Cnmg432Wmx 4315
Specifications:
- Insert Style CNMG
- Insert Size 432
- Material Carbide
- Inscribed Circle 12.70
- Inscribed Circle 0.5000
- Inscribed Circle 1/2
- Thickness 3/16
- Thickness 0.1875
- Thickness 4.76
- Corner Radius 1/32
- Corner Radius 0.7938
- Corner Radius 0.0313
- Manufacturer's Grade 4315
- Coating TiCN/Al2O3/TiN
- Chip breaker WMX
- Length (mm) 12.10
- Length (Decimal Inch) 0.4762
- Insert Length (Decimal Inch) 0.4762
- OverallLength (mm) 12.90
- Overall Length (Decimal Inch) 0.5077
- Hole Diameter (mm) 5.16
- Hole Diameter (Decimal Inch) 0.1875
- ISO Number CNMG 12 04 08-WMX 4315
- Relief Angle 0
- Coating Process MTCVD
- Manufacturers Catalog Number CNMG 12 04 08-WMX 4315
- Primary Workpiece Material P
- Included Angle 80
- Cutting Direction Neutral
- Insert Hand Neutral
- Series T-Max P
- Maximum Depth of Cut (mm) 12.10
- Maximum Depth of Cut (Decimal Inch) 0.4762
- Insert Holding Method Pin & Clamp
- Cutting Width (mm) 12.10
- FullRadius Yes
- Multi Use Application Turning
- MultiUseTool Yes
- Shape Parallelogram
