SANDVIK 880-D1850L25-03 INDEXABLE INSERT DRILL
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: 880-D1850L25-03
IMS Product Code: 1933440
Packaging: Sold Individually
Description:

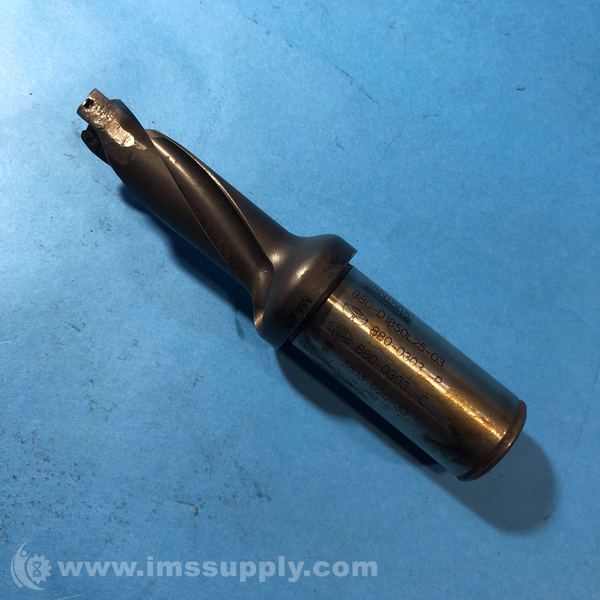

Sandvik 880-D1850L25-03 Indexable Insert Drill
CoroDrill 880 indexable insert drill with CVD TiCN+TiN coating, 18.5mm cutting diameter, 25mm shank diameter, and 131mm overall length.
Specifications
- DCON - Connection Diameter: 25mm
- DC - Cutting Diameter: 18.5mm
- OAL - Overall Length: 131mm
- LF - Functional Length: 74.6217mm
- LB - Body Length: 59mm
- LSC - Clamping Length: 56mm
- TQ - Torque: 0.9Nm
- RPMX - Rotational Speed Maximum: 300001/min
- WT - Weight Of Item: 313g
- KAPR - Tool Cutting Edge Angle: 88deg
- GAMO - Orthogonal Rake Angle: 5deg
- LAMS - Inclination Angle: 0deg
- FHA - Flute Helix Angle: 22deg
- SIG - Point Angle: 176deg
- CP - Coolant Pressure: 1000000Pa
- BHTA - Body Half Taper Angle: 0deg
- OHX - Maximum Overhang: 74.6217mm
- LU - Usable Length: 55.8783mm
- ADJLN - Minimum Adjustment Limit: 0mm
- ADJLX - Maximum Adjustment Limit: 0.4mm
- LCF - Chip Flute Length: 69.7mm
- PL - Point Length: 0.3783mm
- TCHAL - Achievable Hole Tolerance Lower: 0mm
- TCHAU - Achievable Hole Tolerance Upper: 0.25mm
- ULDR - Usable Length Diameter Ratio: 3.020448648649
- Hand: Neutral
- Coating: CVD TiCN+TiN
- Substrate: HC
- Grade: 235
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
