SANDVIK A20T-SDUCR 3-X COROTURN 107 BORING BAR
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: A20T-SDUCR 3-X
IMS Product Code: 1932019

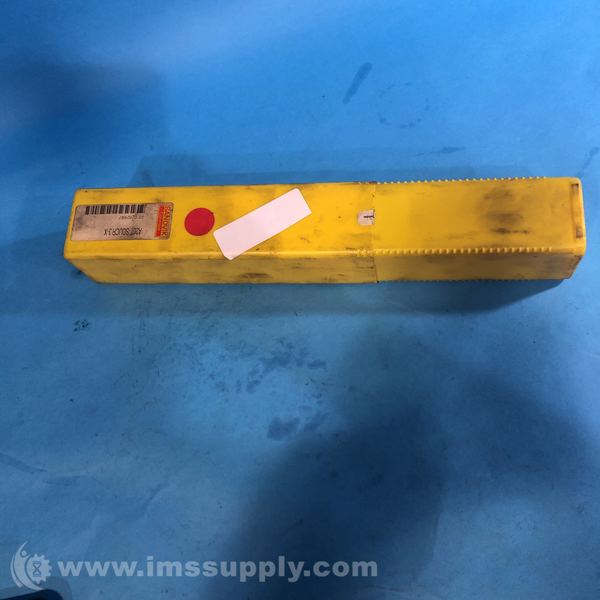

Packaging: Sold Individually
Description:

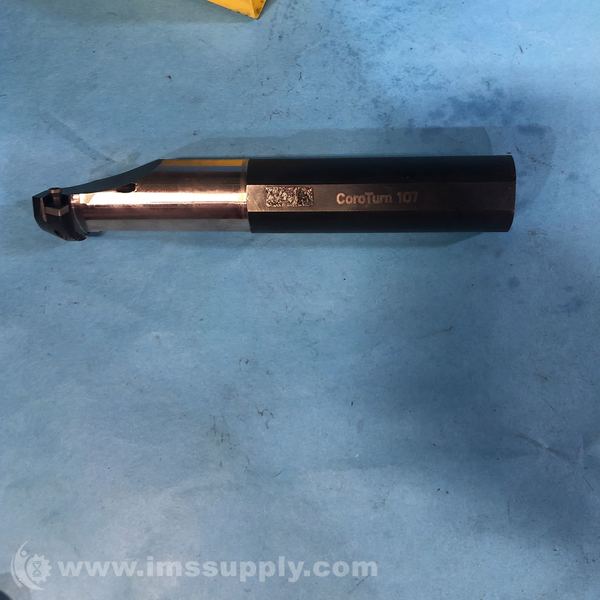

Sandvik A20T-SDUCR 3-X CoroTurn 107 Boring Bar
Internal boring bar for back boring applications, part of the CoroTurn 107 product line.
Specifications
- Workpiece material: P, M
- Chip breaker: HR
- Operation type: Roughing
- Insert mounting style: Cylindrical fixing hole
- Fixing hole diameter: 7.925 mm
- Insert size and shape: CN1906
- Cutting edge count: 2
- Inscribed circle diameter: 19.05 mm
- Insert shape code: Rhombic 80
- Cutting edge effective length: 17.7439 mm
- Corner radius: 1.5875 mm
- Hand: Neutral
- Grade: 235
- Substrate: HC
- Coating: CVD TiCN+TiN
- Insert thickness: 6.35 mm
- Clearance angle major: 0 degrees
- Weight: 0.0262 kg
- Insert seat: 19
- Insert seat size code imperial: 3/4
- Cutting direction: Right Hand
- Min. Bore: 1.579 In
- Shank Dia: 0.315 In
- Overall length: 12.00 In
- Max Depth: 4x Diameter
- Insert Shape: 55 Degrees Diamond
- Lead Angle: -3 Degrees
- Mounting Style: Screw Mounting
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
