SANDVIK AA3B05-40 38 061 CAT-V TO ARBOR ADAPTOR
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: AA3B05-40 38 061
IMS Product Code: 1928909
Packaging: Sold Individually
Description:
Sandvik AA3B05-40 38 061 CAT-V to Arbor Adaptor
CAT-V to arbor adaptor
Specifications
- Workpiece material(s)(TMC1ISO): P, M
- Chip breaker(CBMD): HR
- Operation type (CTPT): roughing
- Insert mounting style code (metric)(IFS): Cylindrical fixing hole
- Fixing hole diameter(D1): 7.925 mm
- Insert size and shape (CUTINT_SIZESHAPE): CN1906
- Cutting edge count(CEDC): 2
- Inscribed circle diameter(IC): 19.05 mm
- Insert shape code(SC): Rhombic 80
- Cutting edge effective length(LE): 17.7439 mm
- Corner radius (RE): 1.5875 mm
- Hand (HAND): Neutral
- Grade (GRADE): 235
- Substrate(SUBSTRATE): HC
- Coating(COATING): CVD TiCN+TiN
- Insert thickness(S): 6.35 mm
- Clearance angle major(AN): 0 degrees
- Weight of item(WT): 2.88kg
- CP - Coolant Pressure: 8000000Pa
- DFC - Functional Diameter: 44.45mm
- DCON - Connection Diameter: 38.1mm
- KAP - Kappa (z-axis Rot): 0deg
- LF - Functional Length: 60.96mm
- BD - Body Diameter: 95.25mm
- LB - Body Length: 60.96mm
- BHTA - Body Half Taper Angle: 0deg
- TQ - Torque: 220Nm
- RPMX - Rotational Speed Maximum: 180001/min
- OAL - Overall Length: 129.36mm
- OHX - Maximum Overhang: 60.96mm
- CNSC - Coolant Entry Style Code: 7
- CXSC - Coolant Exit Style Code: 4
- DCPS - Data Chip Provision Size: 2
- CRKS - Connection Retention Knob Thread Size: 5/8"-11
- BMC - Body Material Code: 1
- DPC - Damping Property: False
- DCP - Data Chip Provision: True
- BBD - Balanced By Design: True
- NROTF - Non Rotating Functionality: False
- RTOF - Rotating Functionality: True
Used (Special):

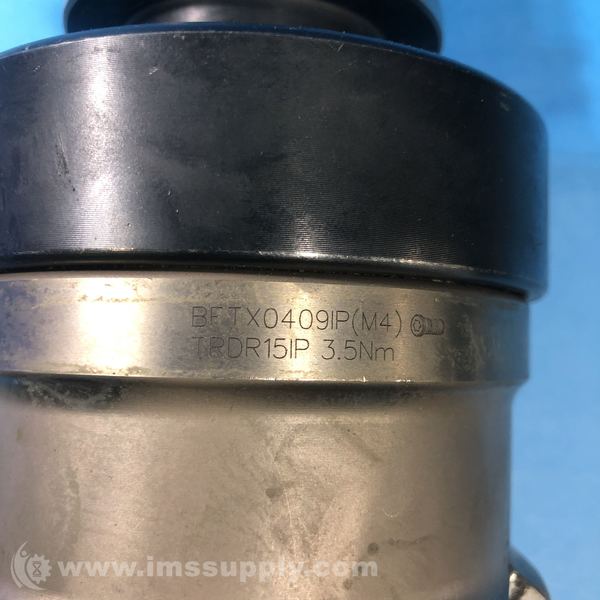

BFTX0409IP(M4) Face Mill attached.
Availability: 1 In Stock
