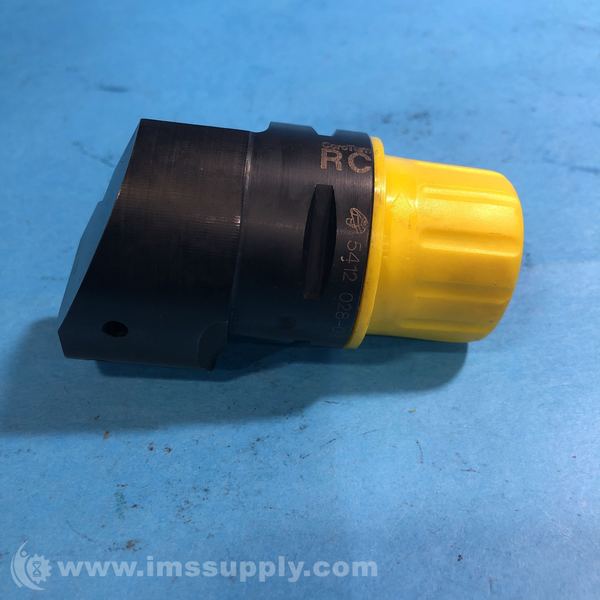

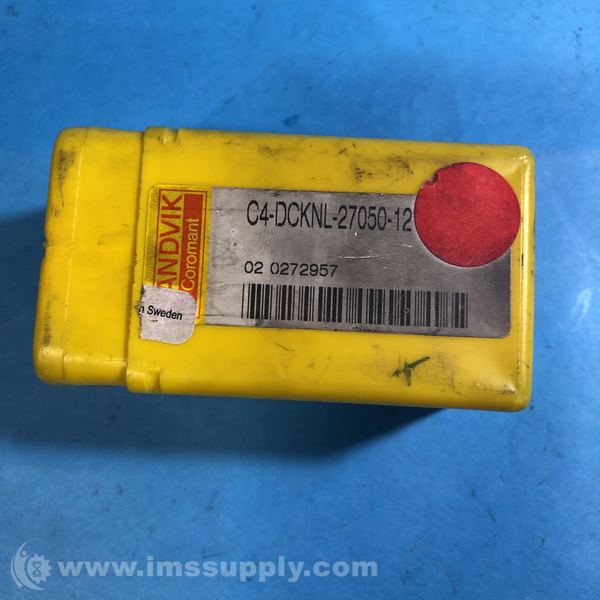

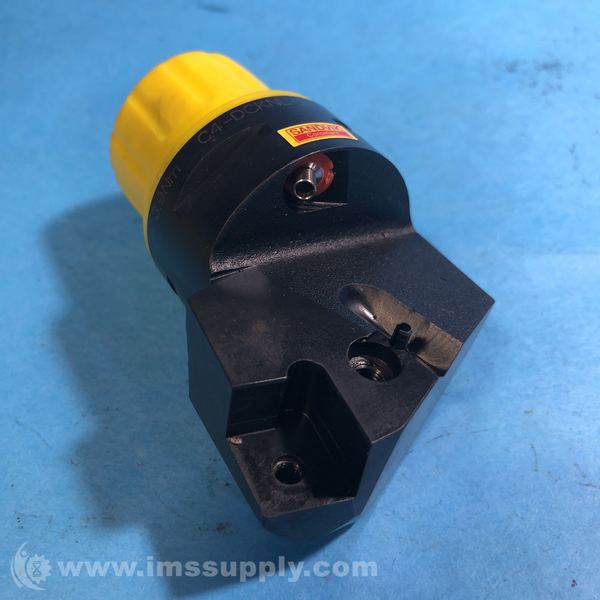

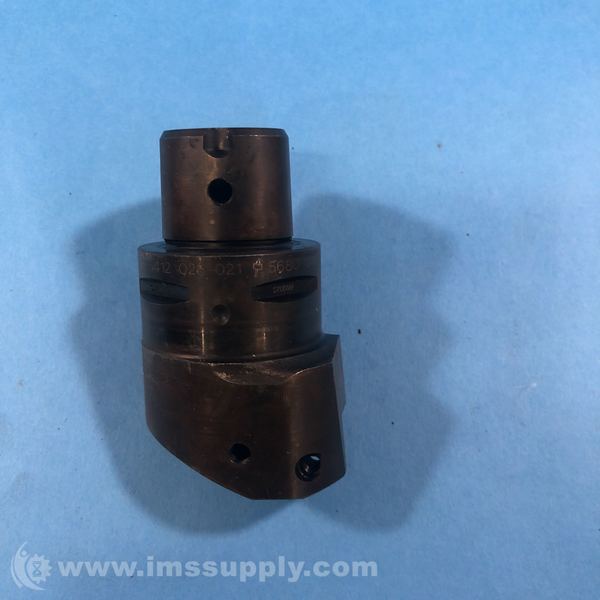

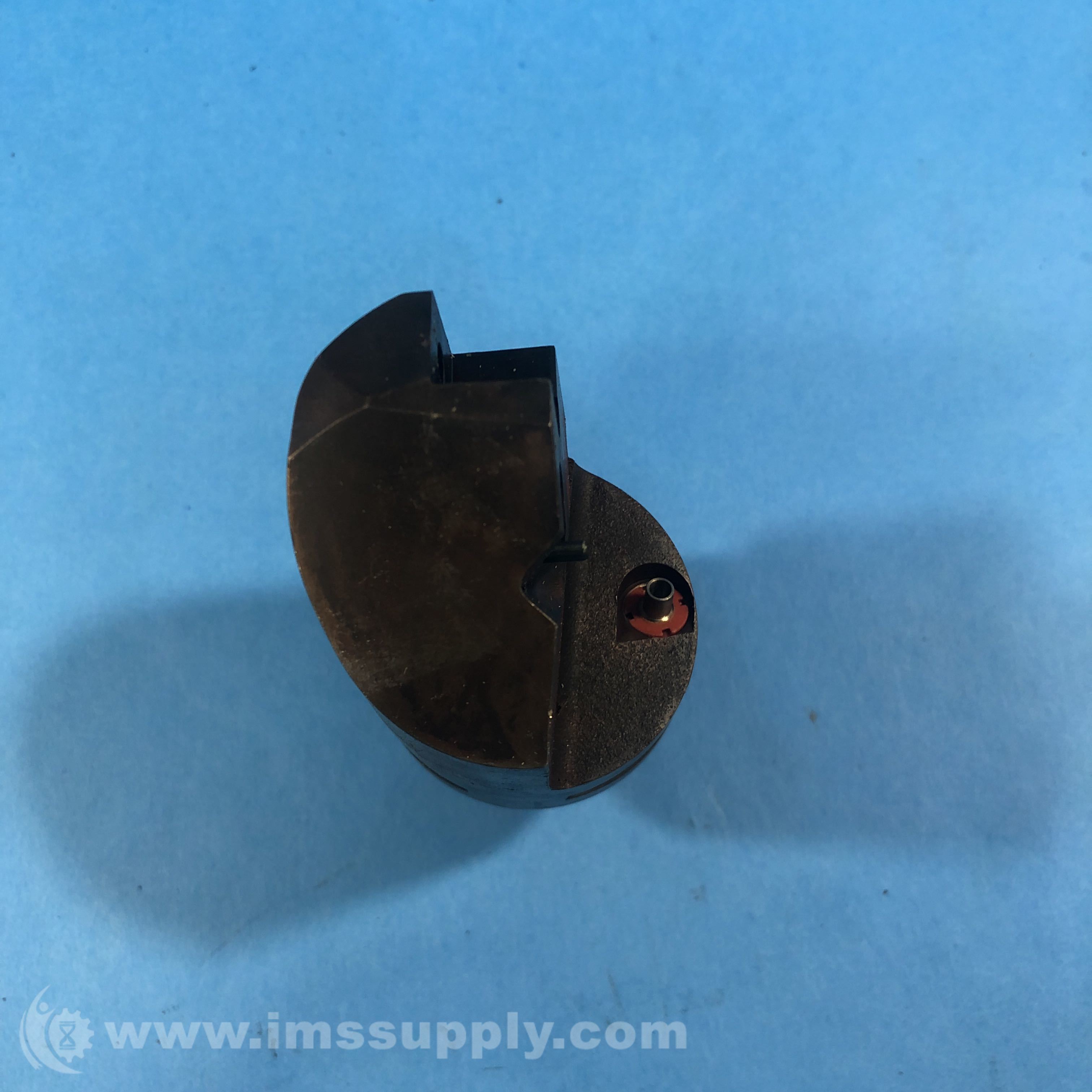

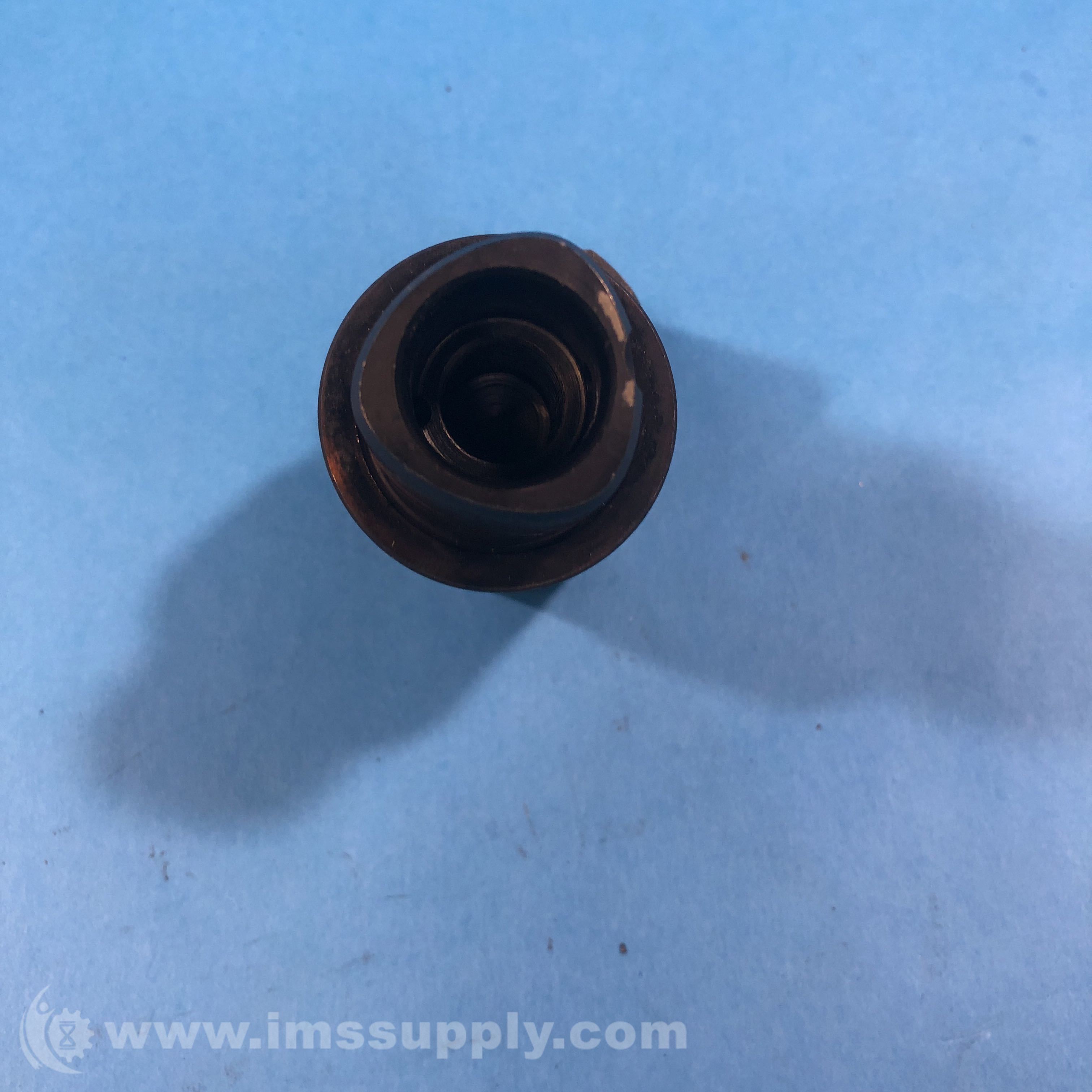

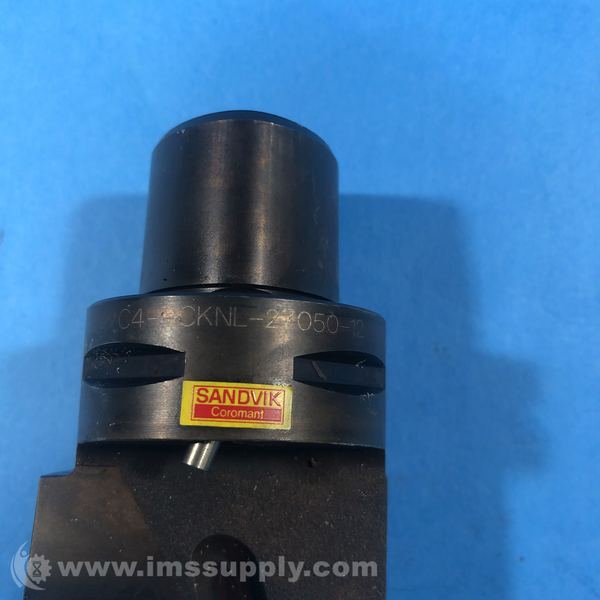

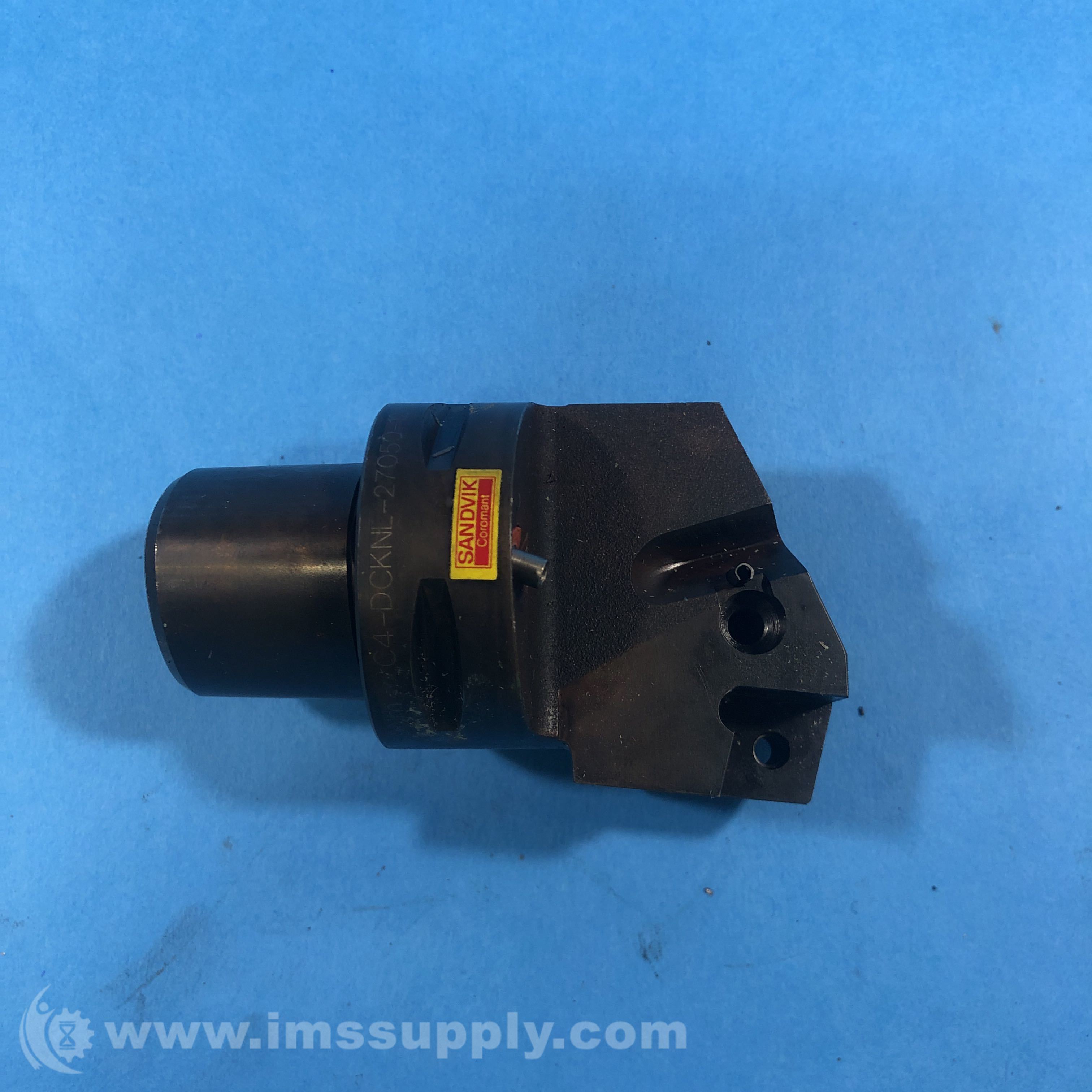

SANDVIK C4-DCKNL-27050-12 TURNING HEAD
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-DCKNL-27050-12
IMS Product Code: 1931999
Packaging: Sold Individually
Description:
Sandvik C4-DCKNL-27050-12 Turning Head
Sandvik Capto C4 110mm Indexable Turning Head C4-DCKNL-27050-12
Specifications
- Modular Connection: Capto C4
- Boring Range: 110mm
- Insert Type: CNMG 12 04 08
- Material: Steel
- Coolant Through: Yes
- Projection Length: 50mm
- Fixing hole diameter: 7.925 mm
- Insert size and shape: CN1906
- Cutting edge count: 2
- Inscribed circle diameter: 19.05 mm
- Insert shape code: Rhombic 80
- Cutting edge effective length: 17.7439 mm
- Corner radius: 1.5875 mm
- Hand: Neutral
- Grade: 235
- Substrate: HC
- Coating: CVD TiCN+TiN
- Insert thickness: 6.35 mm
- Clearance angle major: 0 degrees
- Weight: 0.0262 kg
- Insert seat - metric: 19
- Insert seat size code imperial view: 3/4
- f1: 27
- l1: 50
- D5m: 40
- Tip tightening torque: 3.9
- Cutting Angle: 75
- Gauge tip: CNMG 120408
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 14 minutes.
Used (Special):
Missing yellow end.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 14 minutes.
