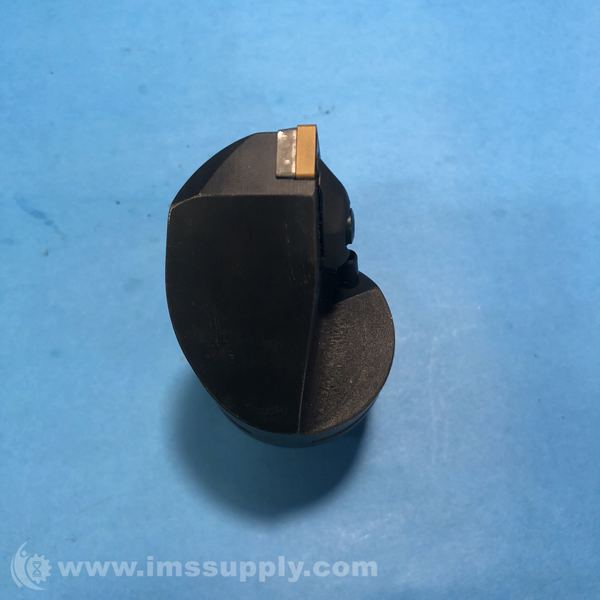

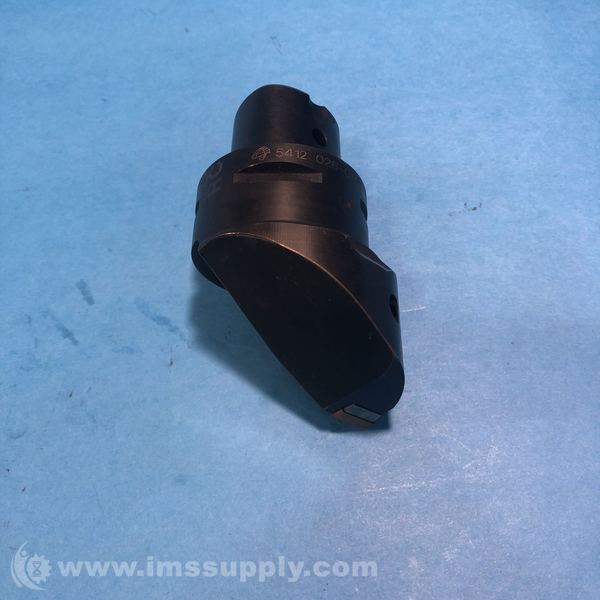

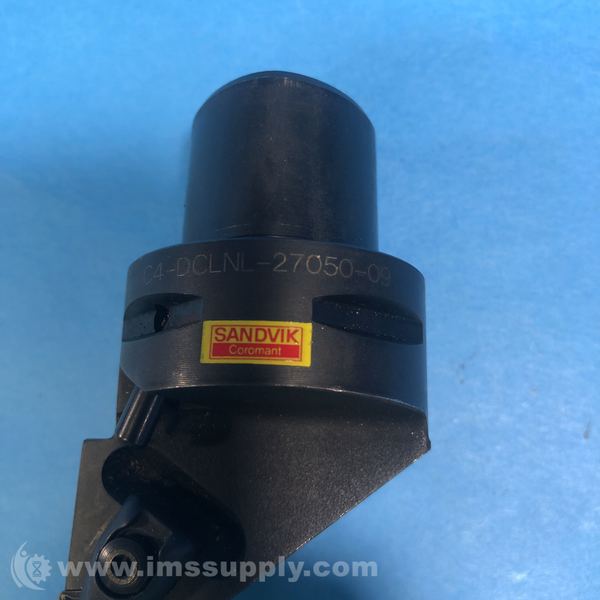

SANDVIK C4-DCLNL-27050-09 INDEXABLE TURNING HEAD
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-DCLNL-27050-09
IMS Product Code: 1937195
Packaging: Sold Individually
Description:
Sandvik C4-DCLNL-27050-09 Indexable Turning Head
Modular Connection: Capto C4. Boring Range: 60-140mm. Indexable turning toolholder for lathe turning supporting internal coolant and negative inserts.
Specifications
- Modular Connection: Capto C4
- Boring Range: 60-140mm
- Material: Steel
- Coolant Through: Yes
- Insert Type: CNMG 090308
- Weight: 0.0577 lb
- Fixing hole diameter: 0.312 inch
- Insert size and shape: CN1906
- Cutting edge count: 2
- Inscribed circle diameter: 0.75 inch
- Insert shape code: Rhombic 80
- Cutting edge effective length: 0.6986 inch
- Corner radius: 0.0625 inch
- Hand: Neutral
- Grade: 235
- Substrate: HC
- Coating: CVD TiCN+TiN
- Insert thickness: 0.25 inch
- Clearance angle major: 0 degrees
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
