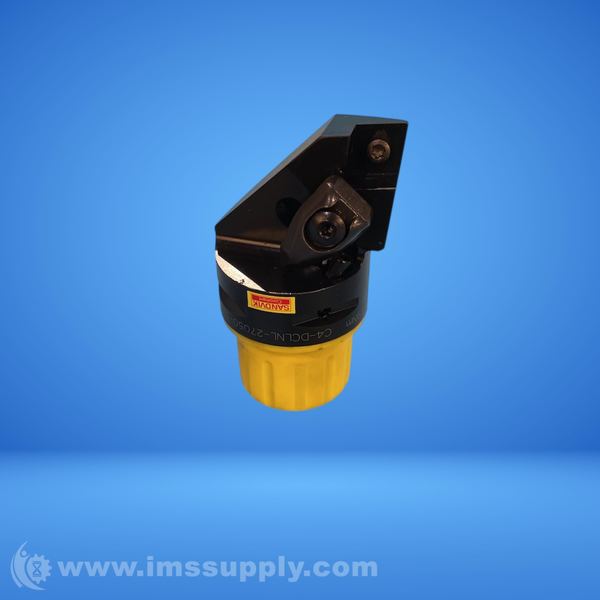

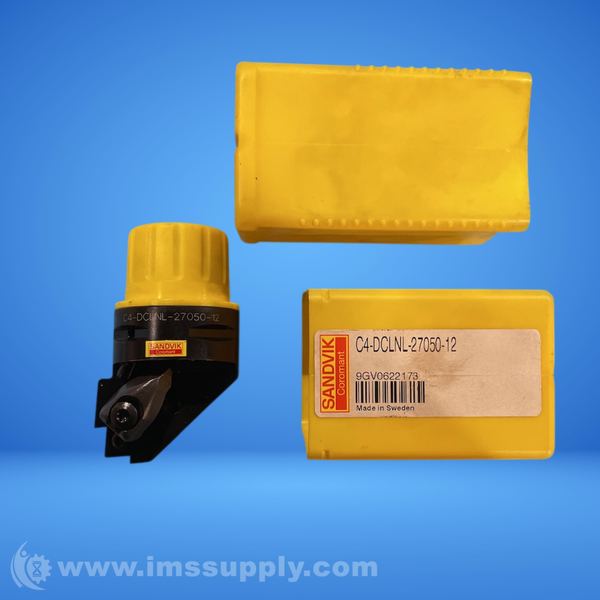

SANDVIK C4-DCLNL-27050-12 TURNING TOOL
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-DCLNL-27050-12
IMS Product Code: 1925790
Packaging: Sold Individually
Description:
Sandvik C4-DCLNL-27050-12 Turning Tool
Coromant Capto turning tool with CNMG 120408 insert compatibility
Specifications
- Tool cutting edge angle: 95 degrees
- Lead angle: -5 degrees
- Clamping type: Clamp on top of insert and into hole
- Insert type: CNMG 120408
- Connection - machine side: Coromant Capto (bolt and segment clamping) - size C4
- Maximum ramping angle: 0 degrees
- Minimum bore diameter: 110 mm
- Workpiece side body angle: 0 degrees
- Machine side body angle: 0 degrees
- Maximum overhang: 50 mm
- Hand: Left
- Coolant exit style: Axial inclined exit
- Coolant entry style: Axial concentric and radial entry
- Coolant pressure: 40 bar
- Connection diameter machine side: 40 mm
- Functional length: 50 mm
- Functional width: 27 mm
- Functional height: 0 mm
- Orthogonal rake angle: -6 degrees
- Inclination angle: -6 degrees
- Torque: 3.9 Nm
- Body material: Steel
- Weight: 0.4024 kg
- Master insert identification: CNMG 12 04 08
- Overall length: 74 mm
- Insert seat - metric: 12
- Insert seat size code imperial view: 1/2
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 13 In Stock
Ships today if ordered in the next 11 hours and 51 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 8 In Stock
Ships today if ordered in the next 11 hours and 51 minutes.
