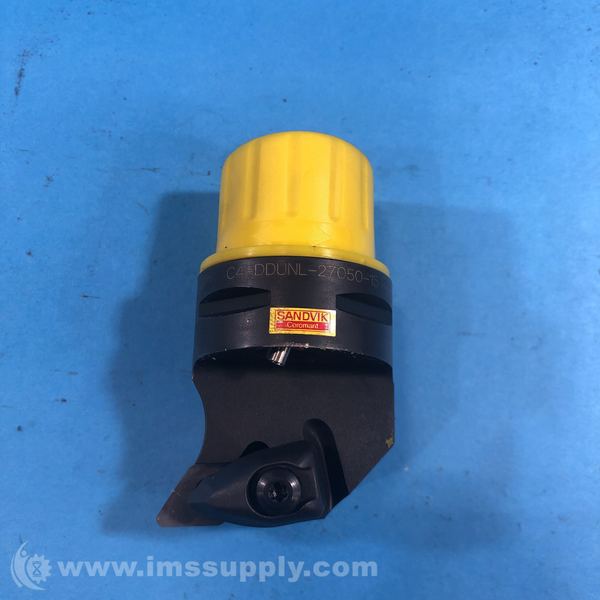

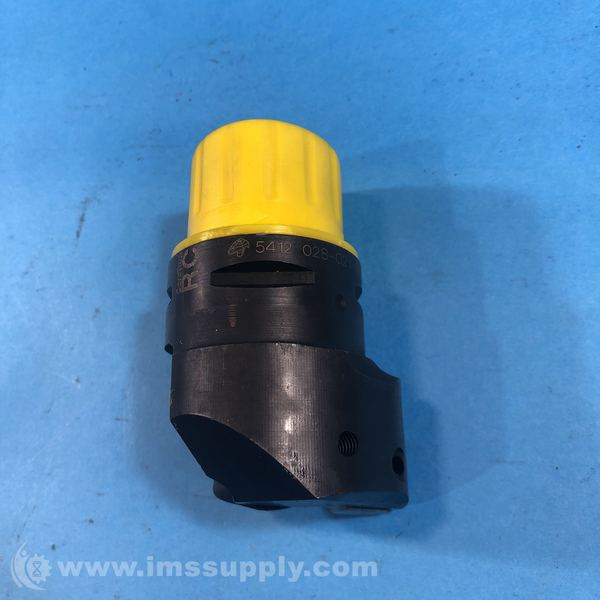

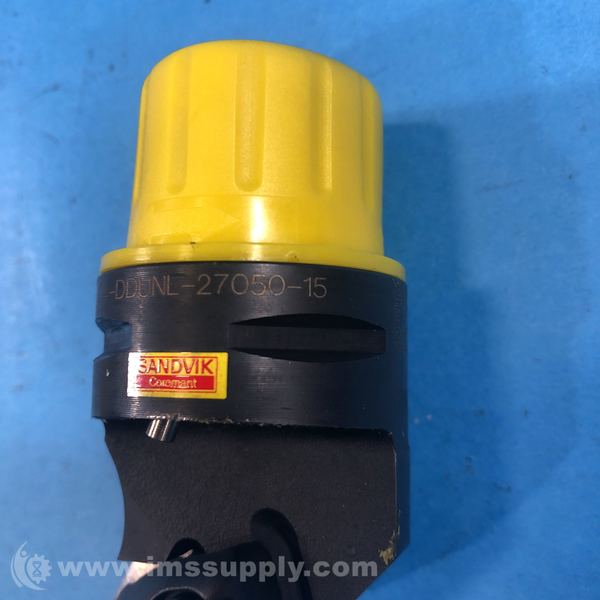

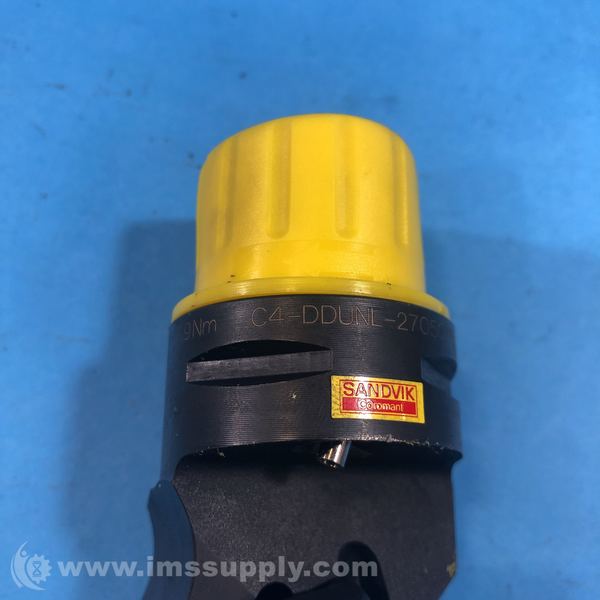

SANDVIK C4-DDUNL-27050-15 TURNING HOLDER
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-DDUNL-27050-15
IMS Product Code: 1933637
Packaging: Sold Individually
Description:
Sandvik C4-DDUNL-27050-15 Turning Holder
T-Max P cutting unit for turning
Specifications
- Tool type: Holder
- Designation: C4-DDUNL-27050-15
- Ansi designation: C4-DDUNL-27050-15
- CP - Coolant Pressure: 4000000Pa
- DFC - Functional Diameter: 28mm
- DCON - Connection Diameter: 40mm
- KAP - Kappa (z-axis Rot): 0deg
- LF - Functional Length: 50mm
- TQ - Torque: 3.9Nm
- WT - Weight Of Item: 0.386kg
- OAL - Overall Length: 74mm
- OHX - Maximum Overhang: 50mm
- KAPR - Tool Cutting Edge Angle: 93deg
- RMPX - Maximum Ramping Angle: 27deg
- DMIN - Minimum Bore Diameter: 140mm
- BAWS - Workpiece Side Body Angle: 0deg
- BAMS - Machine Side Body Angle: 0deg
- WF - Functional Width: 27mm
- HF - Functional Height: 0mm
- GAMO - Orthogonal Rake Angle: -6deg
- LAMS - Inclination Angle: -7deg
- AN - Clearance Angle Major: 0deg
- IC - Inscribed Circle Diameter: 12.7mm
- RE - Corner Radius: 0.79375mm
- Insert Thickness: 6.35mm
- ORDCODE: C4-DDUNL-27050-15
- ADINTMS - Adaptive Interface Machine Direction: M_CCS01_C0400_1
- CNSC - Coolant Entry Style Code: 2
- CXSC - Coolant Exit Style Code: 6
- BMC - Body Material Code: 1
- STDNO - Standard Number: ISO26623-1
- MTP - Clamping Type Code: D
- CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers: WISO_DN1506_1
- Hand: L
- MIID - Master Insert Identification: DNMG 15 06 08
- IFS - Insert Mounting Style Code: 2
- SC - Insert Shape Code: D
- SSC - Insert Seat Size Code: 15
- CICT - Cutting Item Count: 1
- DPC - Damping Property: False
- NROTF - Non Rotating Functionality: True
- RTOF - Rotating Functionality: False
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 4 hours and 55 minutes.
