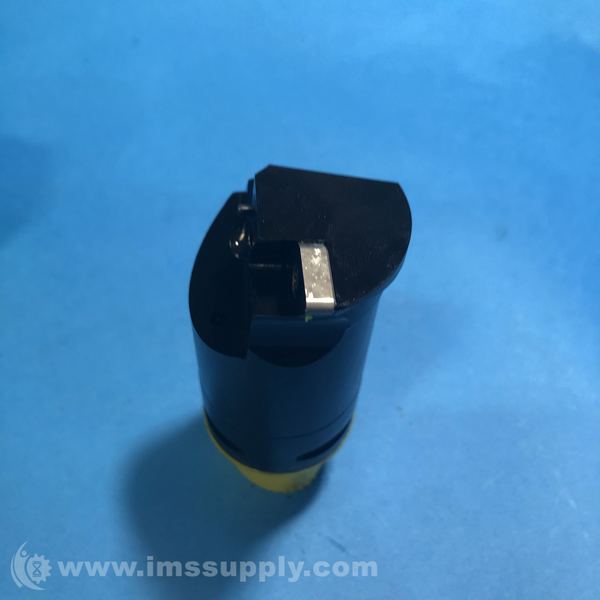

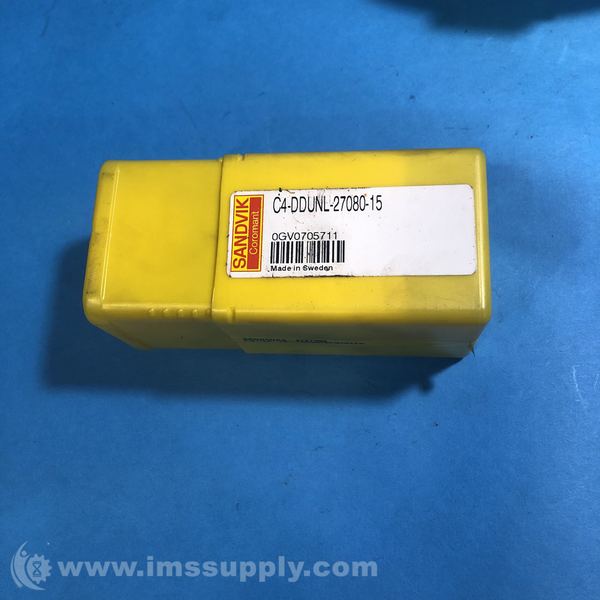

SANDVIK C4-DDUNL-27080-15 T-MAX P CUTTING UNIT
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-DDUNL-27080-15
IMS Product Code: 1932171
Packaging: Sold Individually
Description:
Sandvik C4-DDUNL-27080-15 T-Max P Cutting Unit
T-Max P cutting unit for turning
Specifications
- Adaptive Interface: Coromant Capto (bolt and segment clamping) -size C4
- Diameter (Inch): 1.56299 inch
- Diameter (Metric): 39.7 mm
- Functional Length: 3.14961 inch
- LF Functional Length (Inch): 3.14961 inch
- LF Functional Length (Metric): 80 mm
- Platform: DNMG 150608
- CP - Coolant Pressure: 4000000Pa
- DFC - Functional Diameter: 28mm
- DCON - Connection Diameter: 40mm
- KAP - Kappa (z-axis Rot): 0deg
- LF - Functional Length: 80mm
- BD - Body Diameter: 39.7mm
- TQ - Torque: 3.9Nm
- WT - Weight Of Item: 661g
- OAL - Overall Length: 104mm
- OHX - Maximum Overhang: 80mm
- KAPR - Tool Cutting Edge Angle: 93deg
- RMPX - Maximum Ramping Angle: 27deg
- DMIN - Minimum Bore Diameter: 50mm
- BAWS - Workpiece Side Body Angle: 0deg
- BAMS - Machine Side Body Angle: 0deg
- WF - Functional Width: 27mm
- HF - Functional Height: 0mm
- GAMO - Orthogonal Rake Angle: -6deg
- LAMS - Inclination Angle: -11deg
- AN - Clearance Angle Major: 0deg
- IC - Inscribed Circle Diameter: 12.7mm
- RE - Corner Radius: 0.79375mm
- Insert Thickness: 6.35mm
- LU - Usable Length: 59mm
- Hand: L
- Type: Modular
- Series: T-Max® P
- System Size: C4
- Head Length/Projection: 80 mm
- Overall Length: 104 mm
- Insert Style: DNMG
- Insert Compatibility: DNMG 150608
- Cutting Direction: Left Hand
- Center to Cutting Edge: 27 mm
- Insert Holding Method: Rigid Clamp
- Center to Cutting Height: 59 mm
- Internal or External: Internal
- Material: Steel
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
