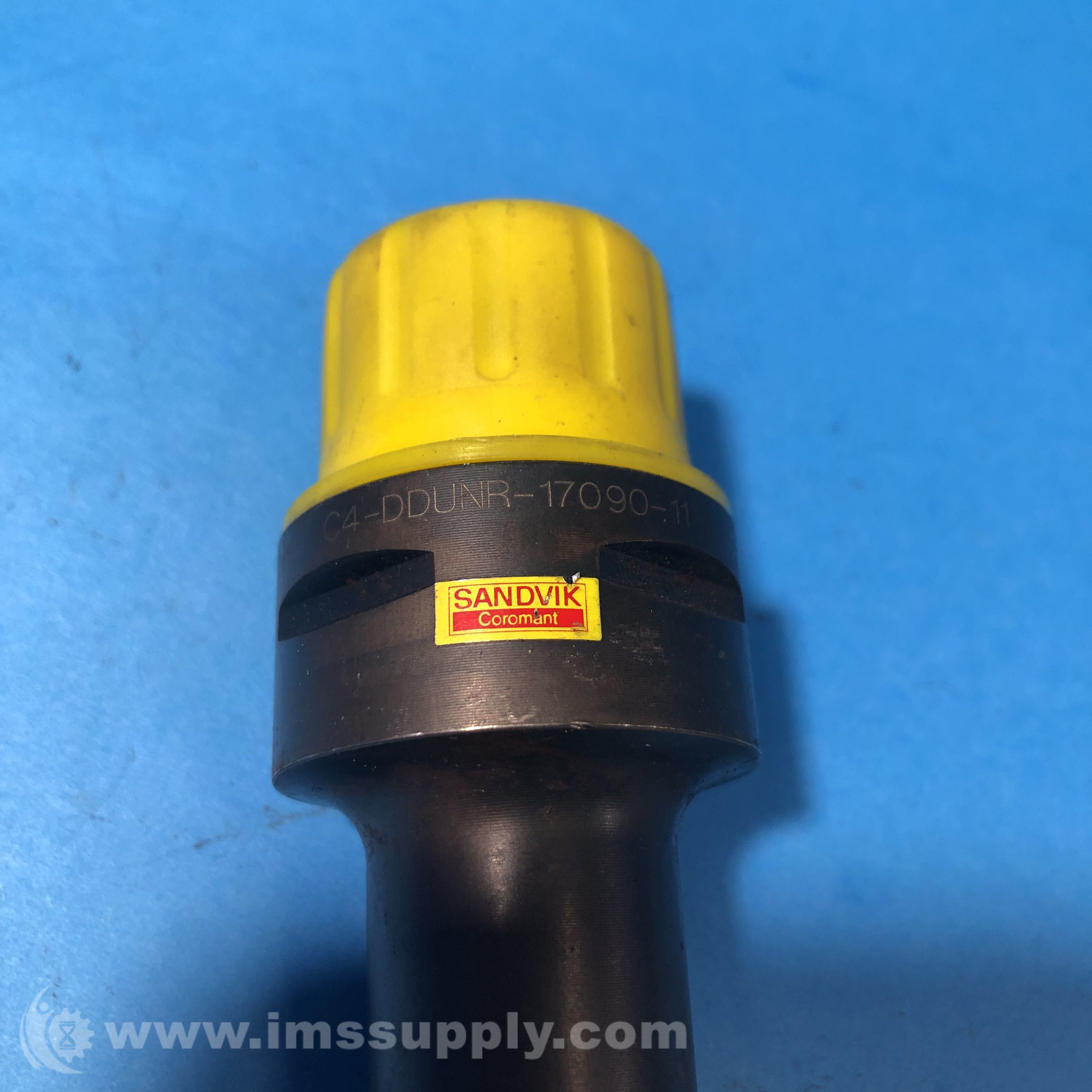

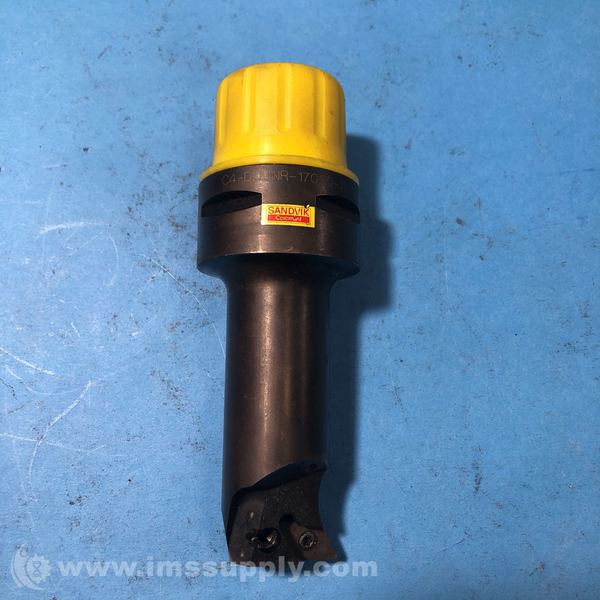

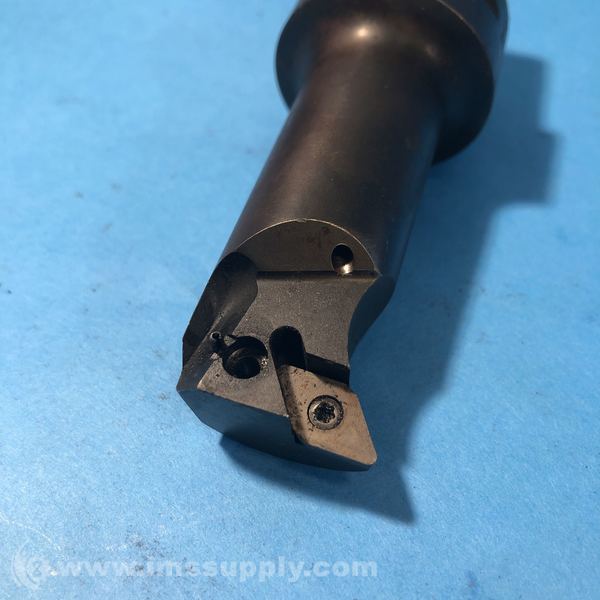

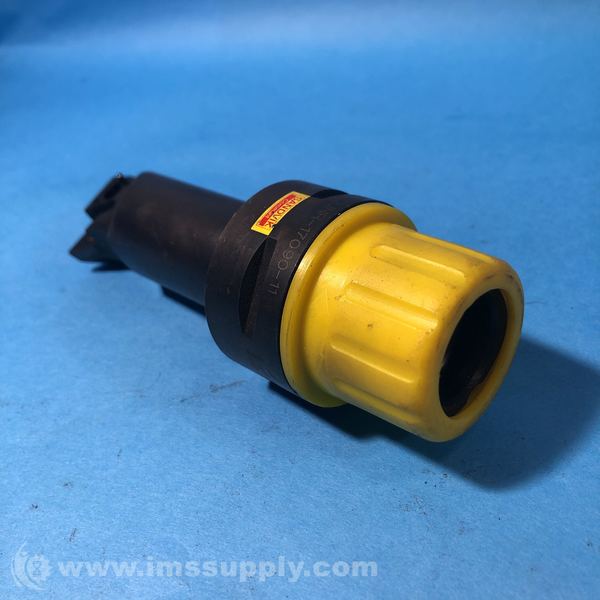

SANDVIK C4-DDUNR-17090-11 T-MAX P CUTTING UNIT
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-DDUNR-17090-11
IMS Product Code: 1936519
Packaging: Sold Individually
Description:
Sandvik C4-DDUNR-17090-11 T-Max P Cutting Unit
T-Max® P cutting unit for turning
Specifications
- product_name: Sandvik Coromant C4-DDUNR-17090-11 T-Max™ P cutting unit for turning
- Materiaaliluokitus, taso 1(TMC1ISO): P, M
- Lastunmurtajan valmistajanimike (CBMD): HR
- Työstämistapa (CTPT): roughing
- Terän kiinnitystavan koodi (metrinen)(IFS): Cylindrical fixing hole
- Kiinnitysreiän halkaisija(D1): 7,925 mm
- Teräkoko ja -muoto(CUTINT_SIZESHAPE): CN1906
- Teräsärmien lukumäärä(CEDC): 2
- Sisään piirretty ympyrä(IC): 19,05 mm
- Terän muotokoodi(SC): Rhombic 80
- Teräsärmän tehollinen pituus(LE): 17,7439 mm
- Nirkonsäde (RE): 1,5875 mm
- Kätisyys (HAND): Neutral
- Laatu (GRADE): 235
- Perusaine(SUBSTRATE): HC
- Pinnoite(COATING): CVD TiCN+TiN
- Terän paksuus(S): 6,35 mm
- Pääsärmän päästökulma(AN): 0 degrees
- Nimikkeen paino(WT): 0,0262 kg
- Teräsja(SSC_M): 19
- Teräsijan koodi, tuuma(SSC_N): 3/4
- CP - Coolant Pressure: 4000000Pa
- DFC - Functional Diameter: 28mm
- DCON - Connection Diameter: 40mm
- KAP - Kappa (z-axis Rot): 0deg
- LF - Functional Length: 90mm
- BD - Body Diameter: 25mm
- TQ - Torque: 1.7Nm
- WT - Weight Of Item: 0.464kg
- OAL - Overall Length: 114mm
- OHX - Maximum Overhang: 90mm
- KAPR - Tool Cutting Edge Angle: 93deg
- RMPX - Maximum Ramping Angle: 27deg
- DMIN - Minimum Bore Diameter: 32mm
- BAWS - Workpiece Side Body Angle: 0deg
- BAMS - Machine Side Body Angle: 0deg
- WF - Functional Width: 17mm
- HF - Functional Height: 0mm
- GAMO - Orthogonal Rake Angle: -6deg
- LAMS - Inclination Angle: -12deg
- AN - Clearance Angle Major: 0deg
- IC - Inscribed Circle Diameter: 9.525mm
- RE - Corner Radius: 0.79375mm
- Insert Thickness: 4.7625mm
- LU - Usable Length: 68mm
- ORDCODE: C4-DDUNR-17090-11
- ADINTMS - Adaptive Interface Machine Direction: M_CCS01_C0400_1
- CNSC - Coolant Entry Style Code: 3
- CXSC - Coolant Exit Style Code: 5
- BMC - Body Material Code: 1
- STDNO - Standard Number: ISO26623-1
- MTP - Clamping Type Code: D
- CUTINT_MASTER - Part 2 Of Cutting Item Interface Identifiers: WISO_DN1104_1
- Hand: R
- MIID - Master Insert Identification: DNMG 11 04 08
- IFS - Insert Mounting Style Code: 2
- SC - Insert Shape Code: D
- SSC - Insert Seat Size Code: 11
- CICT - Cutting Item Count: 1
- DPC - Damping Property: False
- NROTF - Non Rotating Functionality: True
- RTOF - Rotating Functionality: False
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
