SANDVIK C4-DWLNR-27050-06 CAPTO CUT UNIT
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-DWLNR-27050-06
IMS Product Code: 2154174
Packaging: Sold Individually
Description:

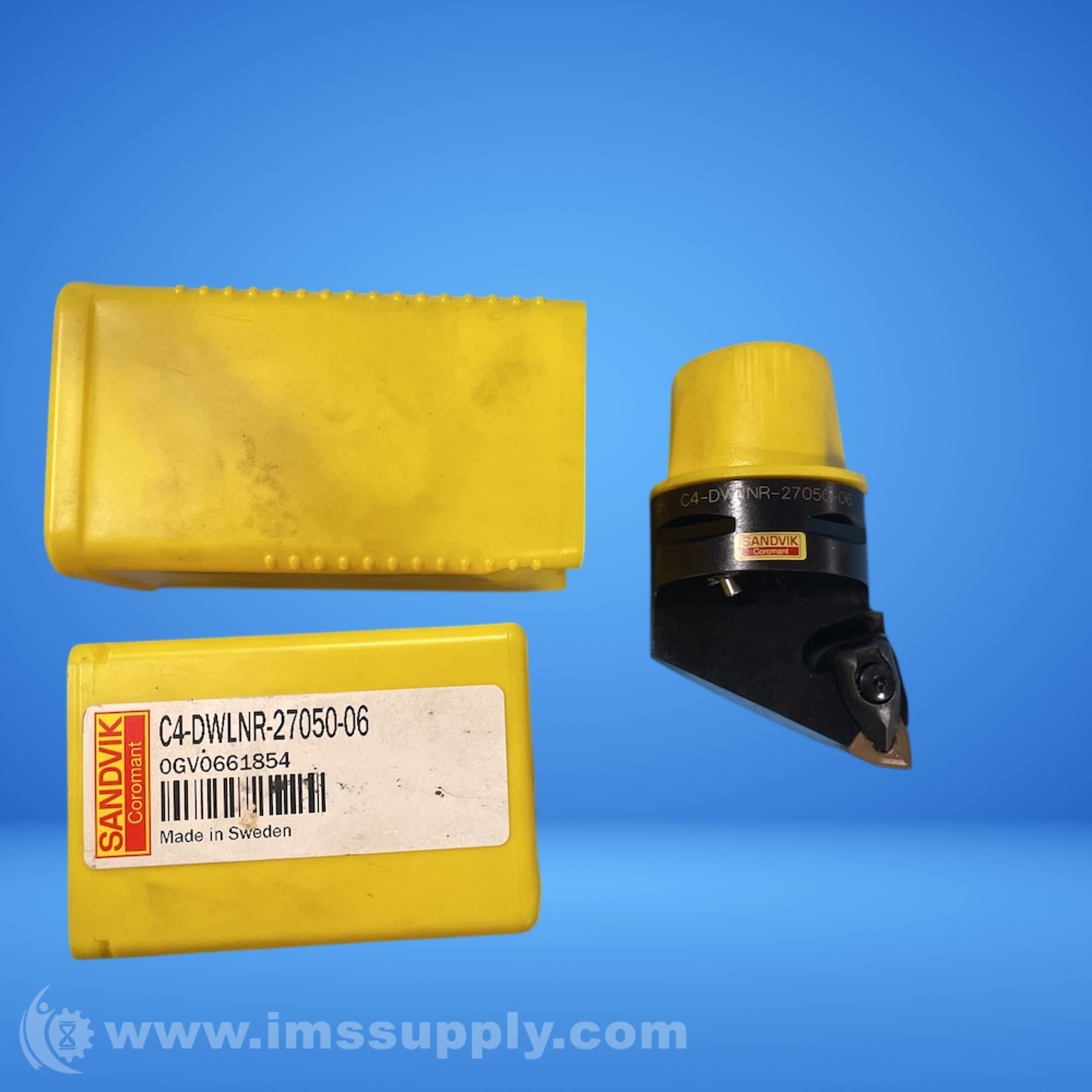

Sandvik C4-DWLNR-27050-06 Capto Cut Unit
Turning toolholder with Capto connection, 74 mm overall length, 50 mm protruding length, right-hand cutting direction, steel body, minimum bore diameter 140 mm.
Specifications
- Workpiece material: P, M
- Chip breaker: HR
- Operation type: roughing
- Fixing hole diameter: 7.925 mm
- Insert size and shape: CN1906
- Cutting edge count: 2
- Insert shape code: Rhombic 80
- Cutting edge effective length: 17.7439 mm
- Corner radius: 1.5875 mm
- Hand: Neutral
- Grade: 235
- Substrate: HC
- Coating: CVD TiCN+TiN
- Weight: 0.0262 kg
- Overall length: 74 mm
- Protruding length: 50 mm
- Master insert identification: WNMG
- Head length: 50 mm
- Shank type: Capto
- Connection diameter machine side: #4
- Body material: Steel
- Minimum bore diameter: 140 mm
- Style: C4-DWLNR-27050-06
- Cutting direction: Right Hand
- Country of origin: Sweden
