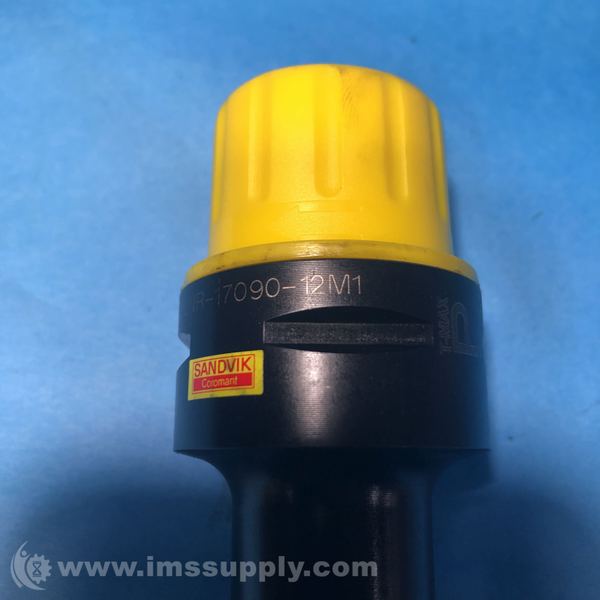

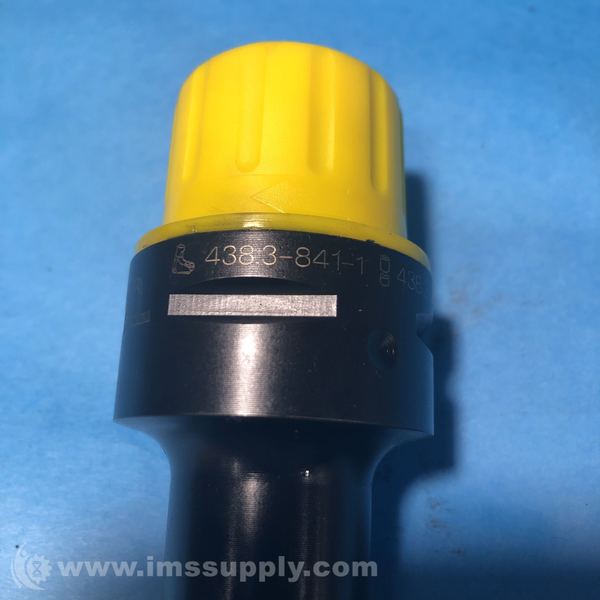

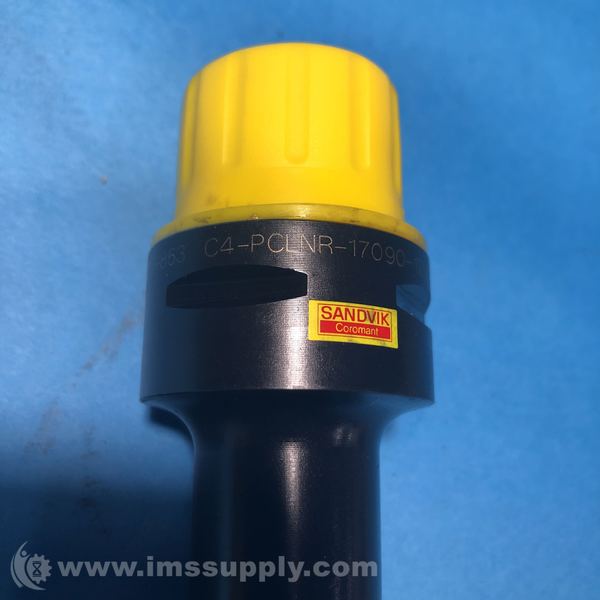

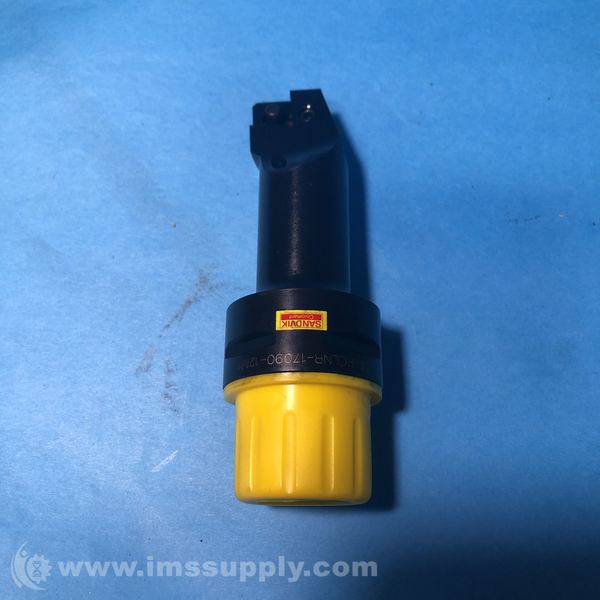

SANDVIK C4-PCLNR-17090-12M1 TURNING TOOL
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-PCLNR-17090-12M1
IMS Product Code: 1932187

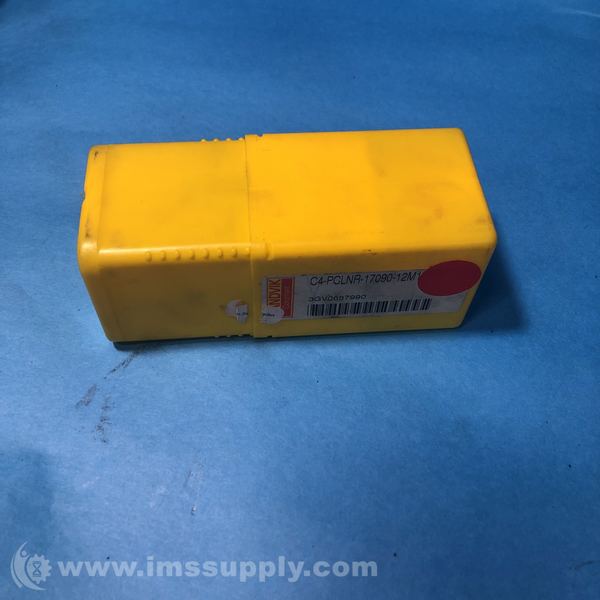

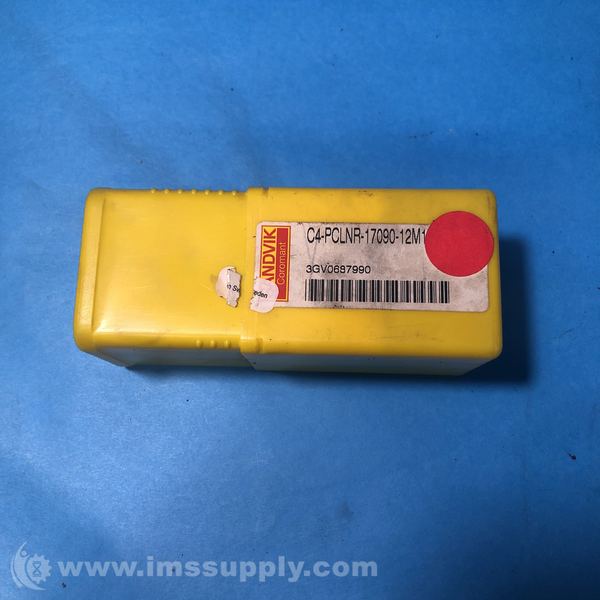

Packaging: Sold Individually
Description:
Sandvik C4-PCLNR-17090-12M1 Turning Tool
T-Max P cutting unit for turning with Coromant Capto C4 connection.
Specifications
- Tool cutting edge angle: 95 degrees
- Lead angle: -5 degrees
- Clamping type: clamp with pin through hole
- Insert type: CNMG 120408
- Connection - machine side: Coromant Capto (bolt and segment clamping) - size C4
- Maximum ramping angle: 0 degrees
- Minimum bore diameter: 32 mm
- Workpiece side body angle: 0 degrees
- Machine side body angle: 0 degrees
- Maximum overhang: 90 mm
- Usable length: 64 mm
- Hand: Right
- Coolant exit style: axial inclined exit
- Coolant entry style: axial concentric and radial entry
- Coolant pressure: 70 bar
- Connection diameter machine side: 40 mm
- Functional length: 90 mm
- Functional width: 17 mm
- Functional height: 0 mm
- Body diameter: 25 mm
- Orthogonal rake angle: -6 degrees
- Inclination angle: -11 degrees
- Torque: 5 Nm
- Body material: Steel
- Weight: 0.461 kg
- Overall length: 114 mm
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 12 hours and 12 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
Ships today if ordered in the next 12 hours and 12 minutes.
