SANDVIK C4-PCLNR-22110-12M1 TURNING TOOL
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-PCLNR-22110-12M1
IMS Product Code: 1932185
Packaging: Sold Individually
Description:

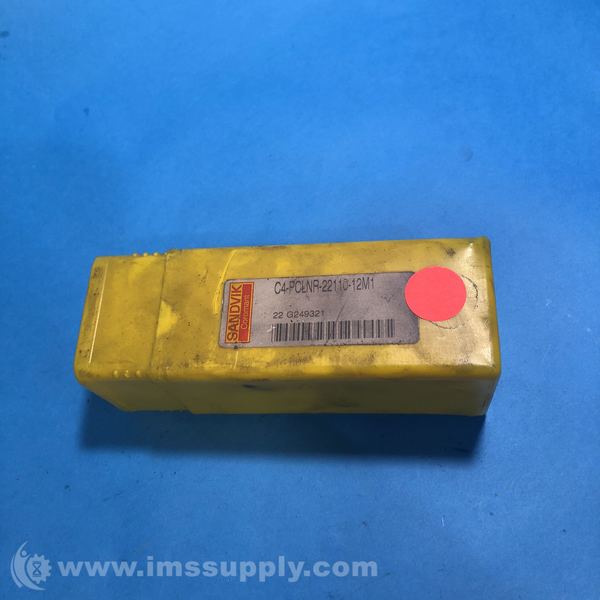

Sandvik C4-PCLNR-22110-12M1 Turning Tool
Turning & Profiling Cutting Tool
Specifications
- Workpiece material(s)(TMC1ISO): P, M
- Chip breaker(CBMD): HR
- Operation type (CTPT): roughing
- Insert mounting style code (metric)(IFS): Cylindrical fixing hole
- Fixing hole diameter(D1): 7.925 mm
- Insert size and shape (CUTINT_SIZESHAPE): CN1906
- Cutting edge count(CEDC): 2
- Inscribed circle diameter(IC): 19.05 mm
- Insert shape code(SC): Rhombic 80
- Cutting edge effective length(LE): 17.7439 mm
- Corner radius (RE): 1.5875 mm
- Hand (HAND): Neutral
- Grade (GRADE): 235
- Substrate(SUBSTRATE): HC
- Coating(COATING): CVD TiCN+TiN
- Insert thickness(S): 6.35 mm
- Clearance angle major(AN): 0 degrees
- Weight of item(WT): 0.0262 kg
- Insert seat - metric(SSC_M): 19
- Insert seat size code imperial view(SSC_N): 3/4
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 14 minutes.
