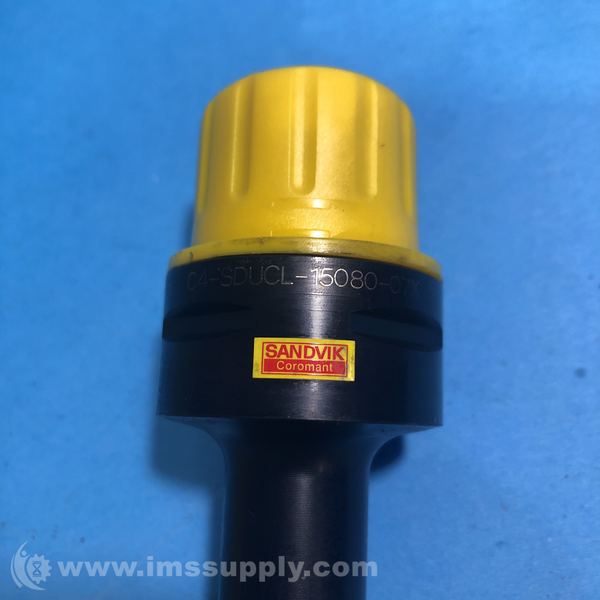

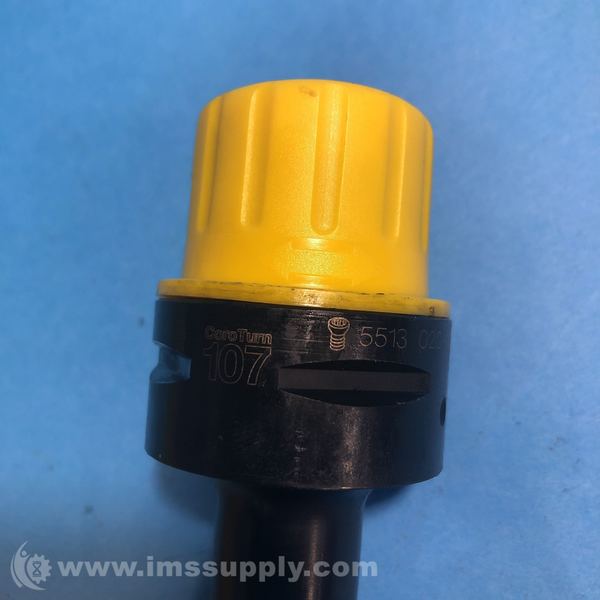

SANDVIK C4-SDUCL-15080-07X COROTURN 107 CUTTING UNIT
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-SDUCL-15080-07X
IMS Product Code: 1932177
Packaging: Sold Individually
Description:
Sandvik C4-SDUCL-15080-07X CoroTurn 107 Cutting Unit
CoroTurn 107 cutting unit for back boring
Specifications
- Product Name: C4-SDUCL-15080-07X
- Product Description: CoroTurn 107, cutting unit for back boring
- Workpiece Material(s) (TMC1ISO): P, M
- Chip Breaker (CBMD): HR
- Operation Type (CTPT): roughing
- Insert Mounting Style Code (Metric) (IFS): Cylindrical fixing hole
- Fixing Hole Diameter (D1): 7.925 mm
- Insert Size and Shape (CUTINT_SIZESHAPE): CN1906
- Cutting Edge Count (CEDC): 2
- Inscribed Circle Diameter (IC): 19.05 mm
- Insert Shape Code (SC): Rhombic 80
- Cutting Edge Effective Length (LE): 17.7439 mm
- Corner Radius (RE): 1.5875 mm
- Hand (HAND): Neutral
- Grade (GRADE): 235
- Substrate (SUBSTRATE): HC
- Coating (COATING): CVD TiCN+TiN
- Insert Thickness (S): 6.35 mm
- Clearance Angle Major (AN): 0 degrees
- Weight of Item (WT): 0.0262 kg
- Insert Seat - Metric (SSC_M): 19
- Insert Seat Size Code Imperial View (SSC_N): 3/4
- Overall Length (OAL): 115.5 mm
- Protruding Length (LPR): 80 mm
- Head Length (LH): 80 mm
- Shank Type: Capto
- Connection Diameter Machine Side (DCONMS): #4
- Body Material: Steel
- Minimum Bore Diameter (DMIN): 27 mm
- Style: C4-SDUCL-15080-07X
- Cutting Direction (HAND): Left Hand
- Coolant Supply Property (CSP): Coolant Thru
- Master Insert Identification (MIID): DCMT
- Country of Origin: SWEDEN
- Brand Name: Sandvik Coromant
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 3 In Stock
