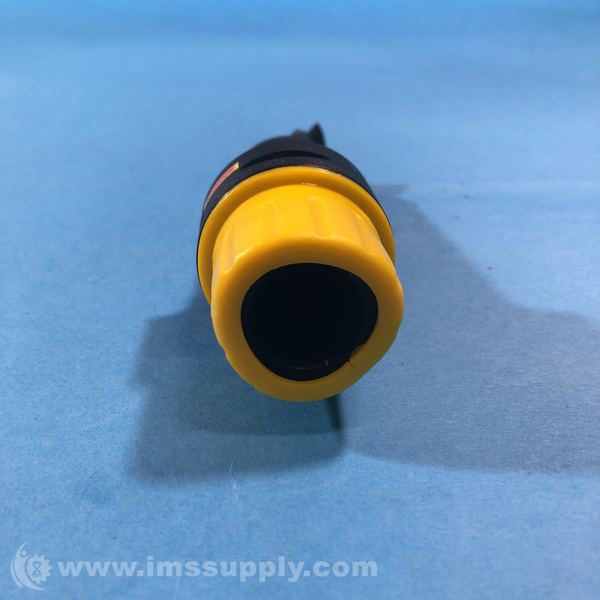

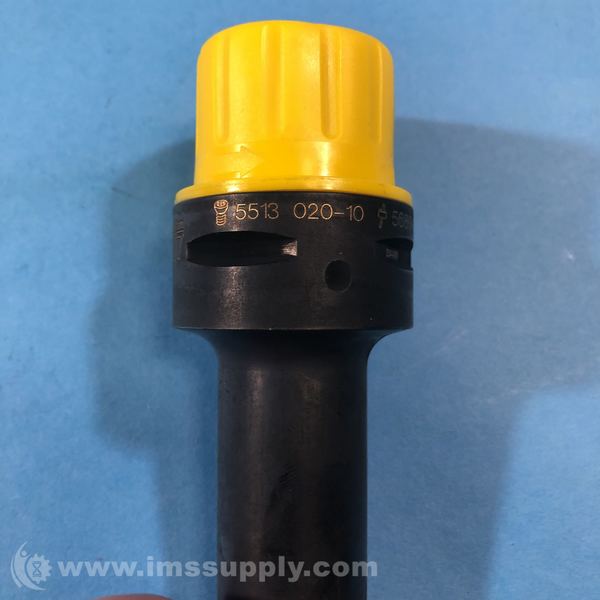

SANDVIK C4-SDUCL-17090-11 COROTURN 107 CUTTING UNIT
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-SDUCL-17090-11
IMS Product Code: 1935937
Packaging: Sold Individually
Description:
Sandvik C4-SDUCL-17090-11 CoroTurn 107 Cutting Unit
Cutting unit for turning operations, featuring a CoroTurn 107 design with a cylindrical fixing hole and CVD TiCN+TiN coated insert.
Specifications
- Workpiece material: P, M
- Chip breaker: HR
- Operation type: Roughing
- Insert mounting style: Cylindrical fixing hole
- Fixing hole diameter: 7.925 mm
- Insert size and shape: CN1906
- Cutting edge count: 2
- Inscribed circle diameter: 19.05 mm
- Insert shape: Rhombic 80
- Cutting edge effective length: 17.7439 mm
- Corner radius: 1.5875 mm
- Hand: Neutral
- Grade: 235
- Substrate: HC
- Coating: CVD TiCN+TiN
- Insert thickness: 6.35 mm
- Clearance angle major: 0 degrees
- Weight: 0.0262 kg
- Insert seat: 19
- Connection diameter machine side: #4
- Coolant supply: Coolant Thru
- Cutting direction: Left Hand
- Head length: 90 mm
- Overall length: 114 mm
- Shank type: Capto
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
Ships today if ordered in the next 2 hours and 22 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 2 hours and 22 minutes.
