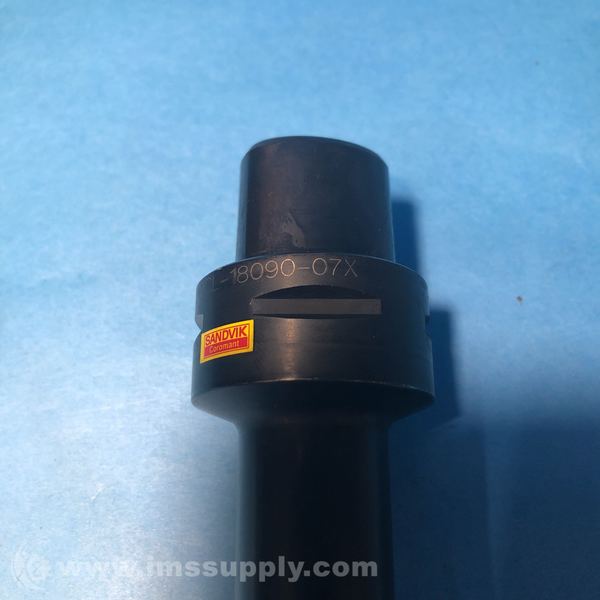

SANDVIK C4-SDUCL-18090-07X COROTURN 107 CUTTING UNIT
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: C4-SDUCL-18090-07X
IMS Product Code: 1930933
Packaging: Sold Individually
Description:
Sandvik C4-SDUCL-18090-07X CoroTurn 107 Cutting Unit
CoroTurn 107 cutting unit for back boring
Specifications
- Workpiece material: P, M
- Chip breaker: HR
- Operation type: roughing
- Insert mounting style: Cylindrical fixing hole
- Fixing hole diameter: 7.925 mm
- Insert size and shape: CN1906
- Cutting edge count: 2
- Inscribed circle diameter: 19.05 mm
- Insert shape: Rhombic 80
- Cutting edge effective length: 17.7439 mm
- Corner radius: 1.5875 mm
- Hand: Neutral
- Grade: 235
- Substrate: HC
- Coating: CVD TiCN+TiN
- Insert thickness: 6.35 mm
- Clearance angle major: 0 degrees
- Weight: 0.0262 kg
- Insert seat - metric: 19
- Insert seat size code imperial: 3/4
- Material: Steel
- Modular Connection: Capto C4
- Coolant Through: Yes
- Projection Length: 90mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 14 minutes.
Used (Special):
yellow cover piece on part broken
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 14 minutes.
