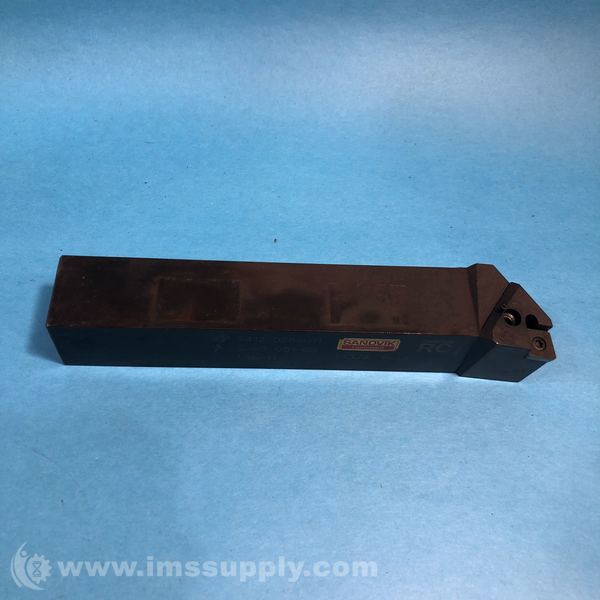

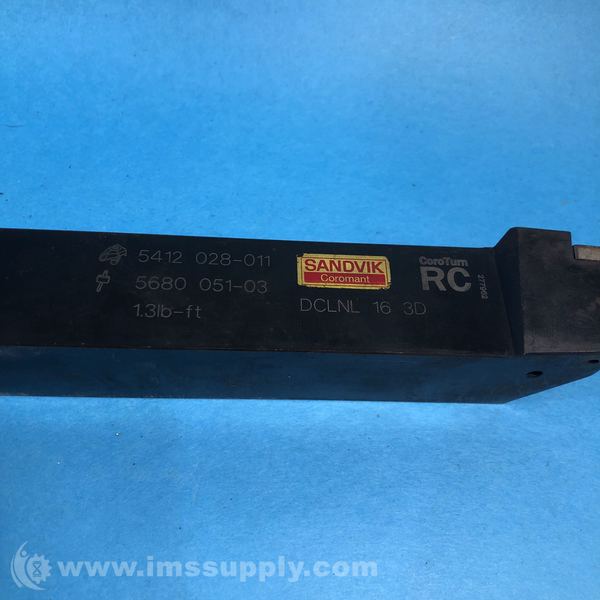

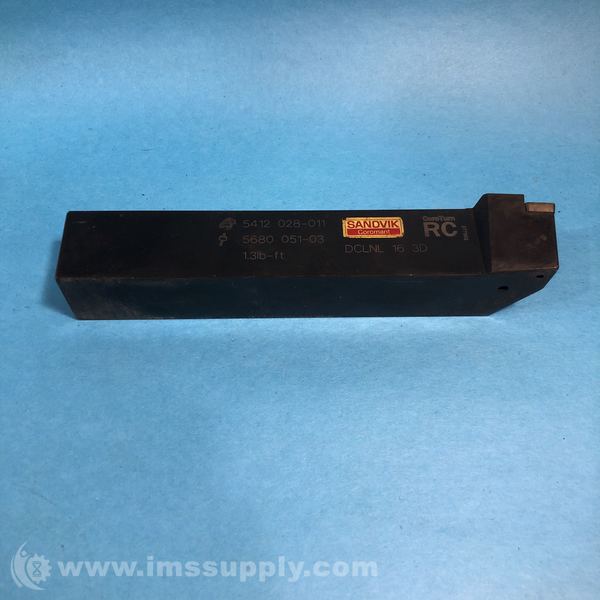

SANDVIK DCLNL 16 3D TURNING TOOLHOLDER
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: DCLNL 16 3D
IMS Product Code: 1932016
Packaging: Sold Individually
Description:
Sandvik DCLNL 16 3D Turning Toolholder
T-Max P shank tool for turning
Specifications
- Workpiece material(s): P, M
- Chip breaker: HR
- Operation type: roughing
- Insert mounting style: Cylindrical fixing hole
- Fixing hole diameter: 7.925 mm
- Insert size and shape: CN1906
- Cutting edge count: 2
- Inscribed circle diameter: 19.05 mm
- Insert shape code: Rhombic 80
- Cutting edge effective length: 17.7439 mm
- Corner radius: 1.5875 mm
- Hand: Neutral
- Grade: 235
- Substrate: HC
- Coating: CVD TiCN+TiN
- Insert thickness: 6.35 mm
- Clearance angle major: 0 degrees
- Weight: 0.0262 kg
- Functional length: 152.4mm
- Torque: 1.7Nm
- Overall length: 152.4mm
- Maximum overhang: 24.892mm
- Clamping length: 127.508mm
- Tool cutting edge angle: 95deg
- Maximum ramping angle: 0deg
- Workpiece side body angle: 0deg
- Machine side body angle: 0deg
- Functional width: 31.75mm
- Functional height: 25.4mm
- Orthogonal rake angle: -6deg
- Inclination angle: -6deg
- Shank height: 25.4mm
- Shank width: 25.4mm
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
