SANDVIK LF123K063-16BM COROCUT TOOL HOLDER
Quick Overview
Manufactured By: SANDVIK
Manufacturer Part Number: LF123K063-16BM
IMS Product Code: 1927575
Packaging: Sold Individually
Description:

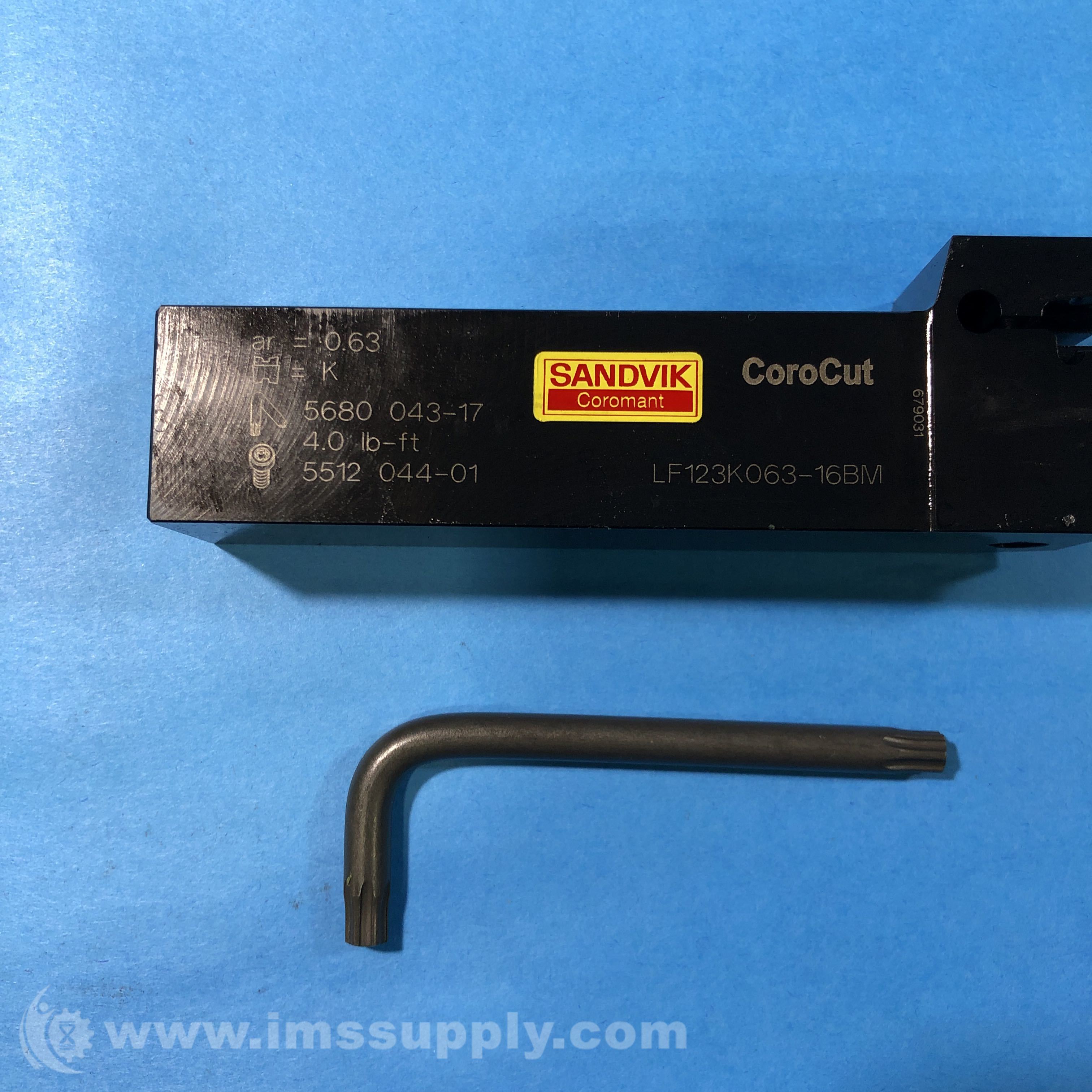

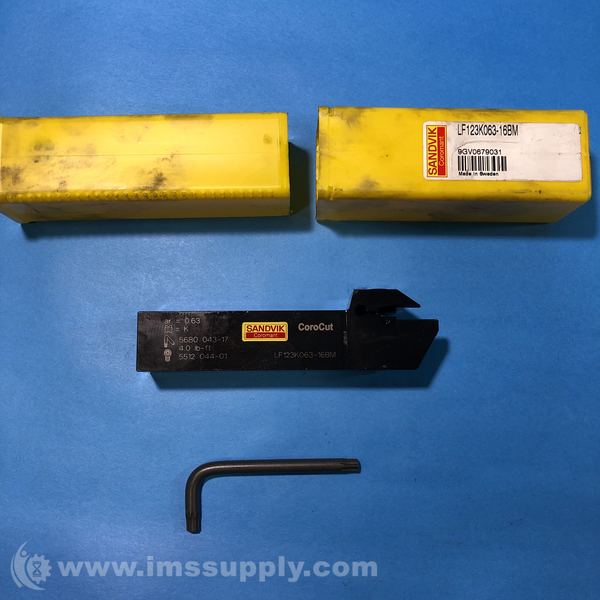

Sandvik LF123K063-16BM CoroCut Tool Holder
CoroCut 1-2 shank tool for parting and grooving
Specifications
- KAP - Kappa (z-axis Rot): 0deg
- LF - Functional Length: 127mm
- TQ - Torque: 5.5Nm
- WT - Weight Of Item: 580g
- OAL - Overall Length: 127mm
- OHX - Maximum Overhang: 38.989mm
- KAPR - Tool Cutting Edge Angle: 90deg
- BAWS - Workpiece Side Body Angle: 0deg
- WF - Functional Width: 26.0096mm
- HF - Functional Height: 25.4mm
- GAMO - Orthogonal Rake Angle: 0deg
- LAMS - Inclination Angle: 0deg
- Insert Thickness: 4.35mm
- H - Shank Height: 25.4mm
- CW - Cutting Width: 6mm
- B - Shank Width: 25.4mm
- CDX - Cutting Depth Maximum: 16.002mm
- MTP - Clamping Type Code: C
- Hand: L
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
