SANYO DENKI 27BM065HXT54 SERVO MOTOR
Quick Overview
Manufactured By: SANYO DENKI
Manufacturer Part Number: 27BM065HXT54
IMS Product Code: 1790899
Packaging: Sold Individually
Description:

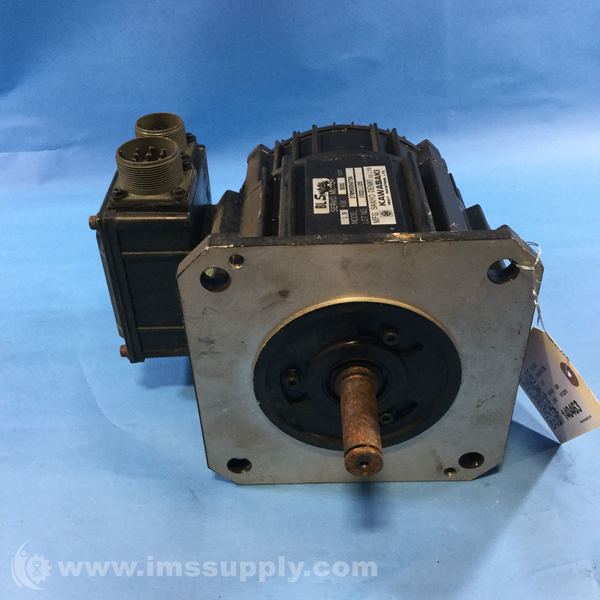

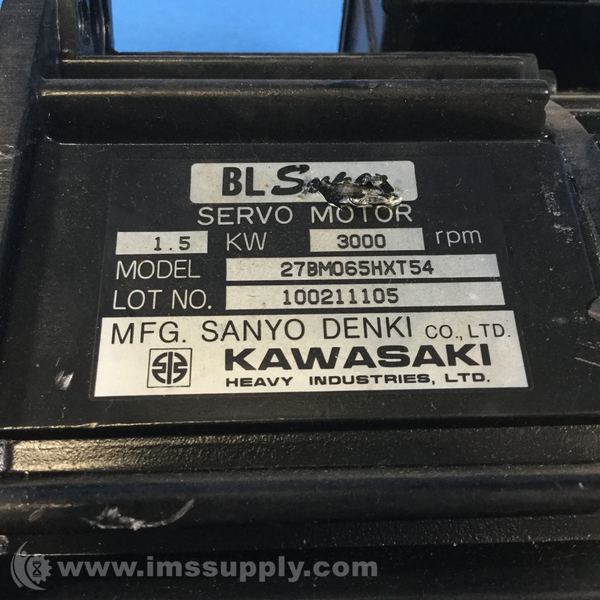

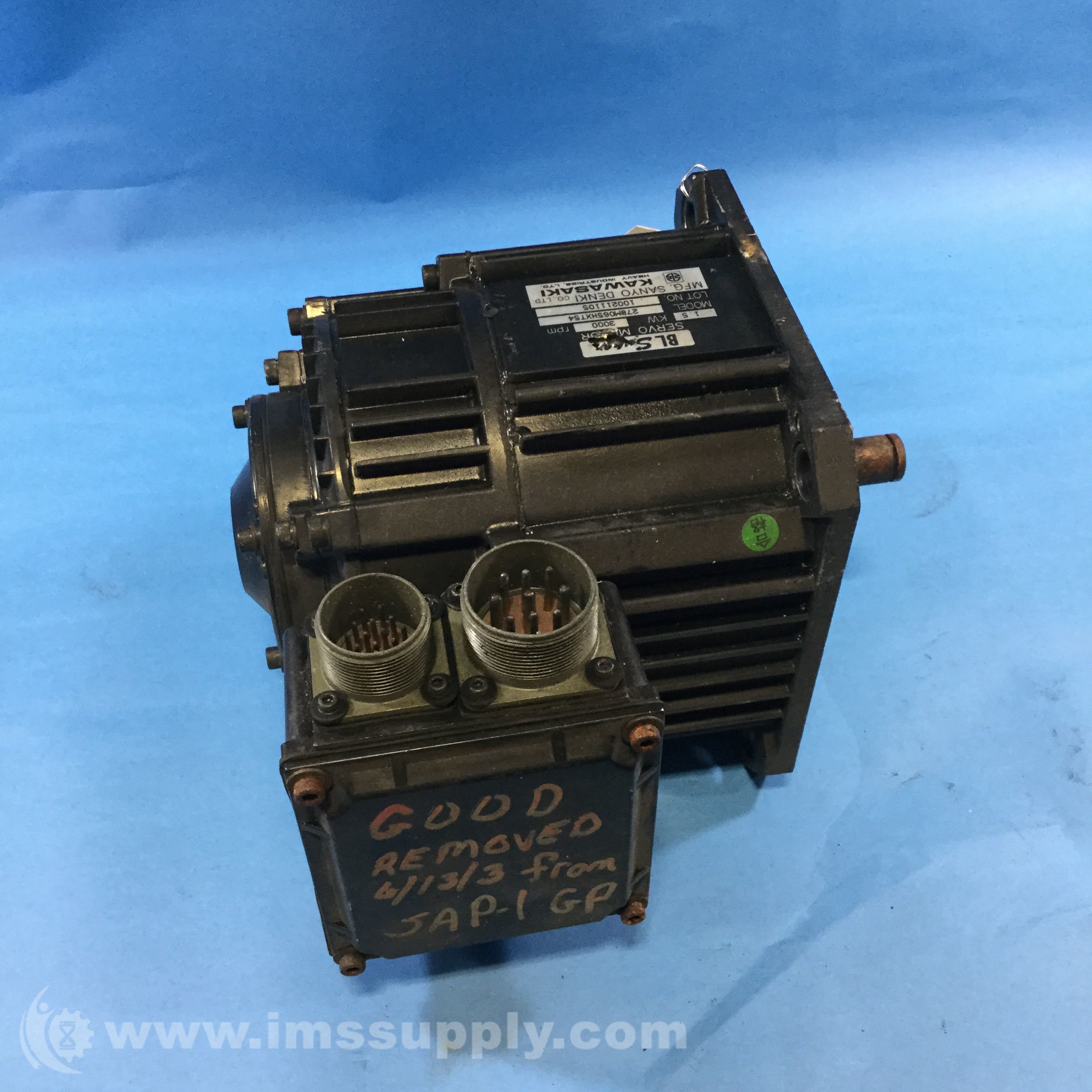

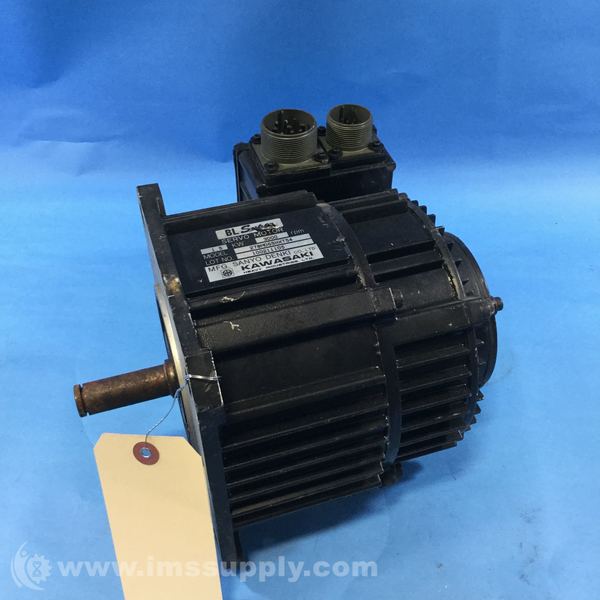

Sanyo Denki 27BM065HXT54 Servo Motor
Compact high-performance servo motor from the BL Super Servo Motors series, rated at 1.5 kW power, with 3000 rpm. Permanent magnets excited, IP55 protection rating, and DIN rail mounting type.
Specifications
- Dimensions: 124 mm x 99 mm x 54 mm
- Efficiency: 0.9
- Excitation: Permanent magnets
- Holding Brake: Absent
- Input Voltage: 24 VDC
- Mounting Type: DIN rail
- Outdoor Operation: Not allowed
- Output Voltage: 5 VDC, 24 VDC
- Peak Ambient Temperature: 45 degrees
- Peak Humidity Level: 0.9
- Peak Installation Height: 1000m
- Power Rating: 1.5 kW
- Protection Rating: IP55
