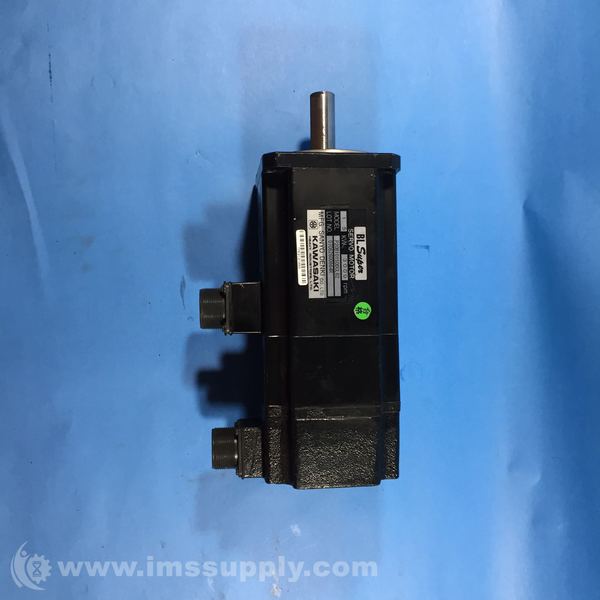

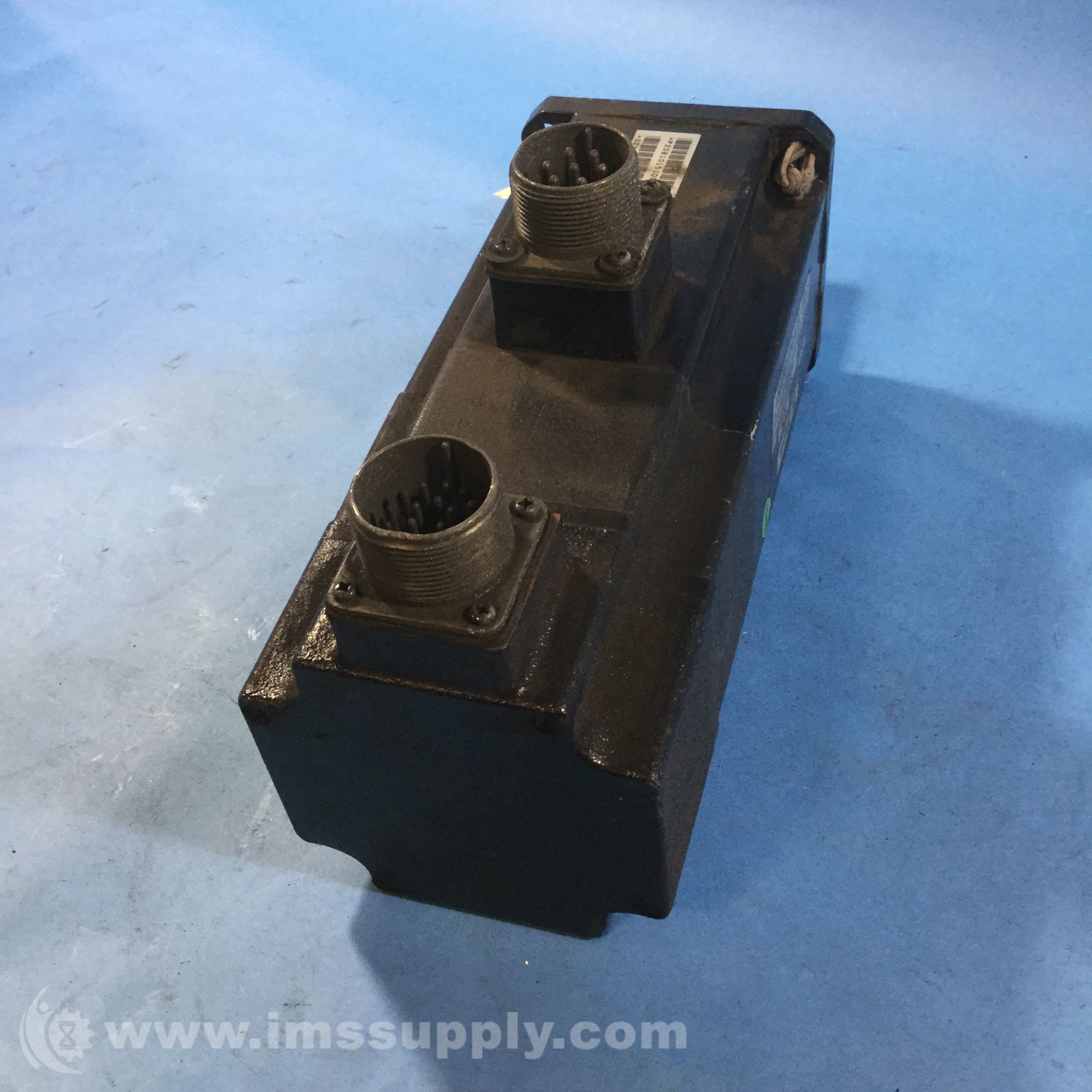

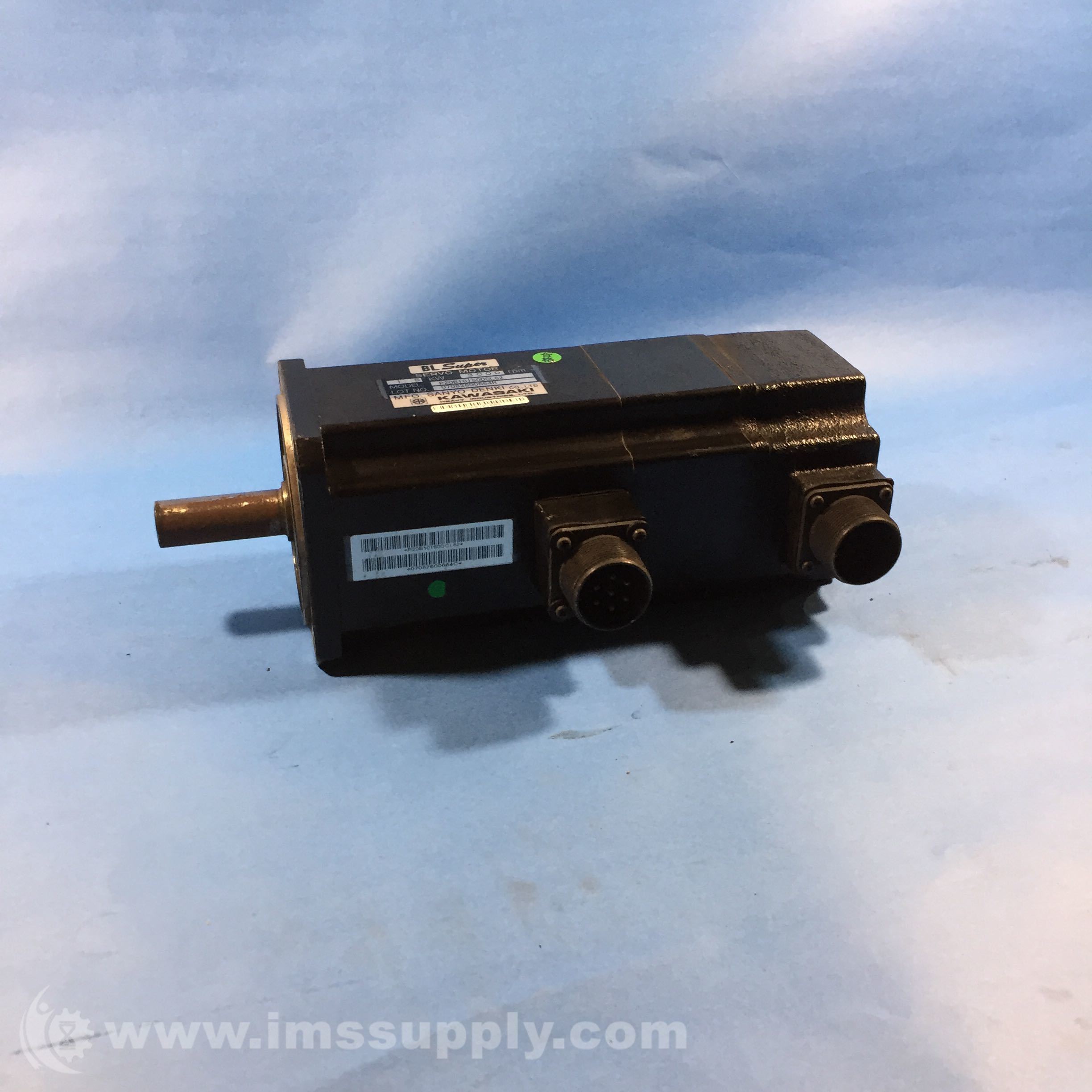

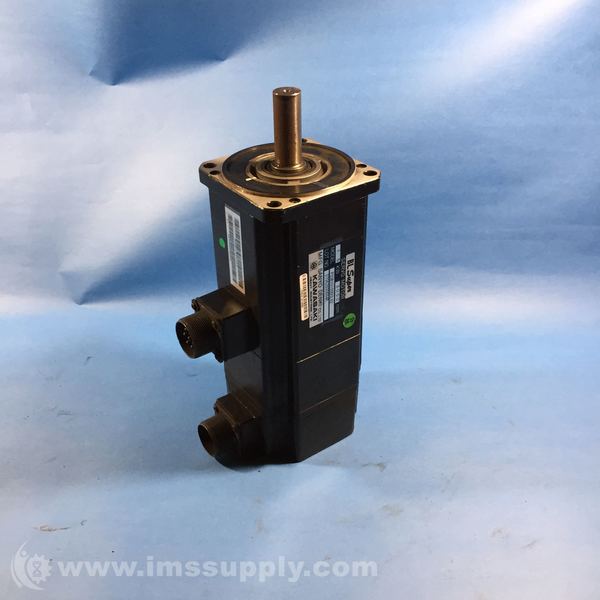

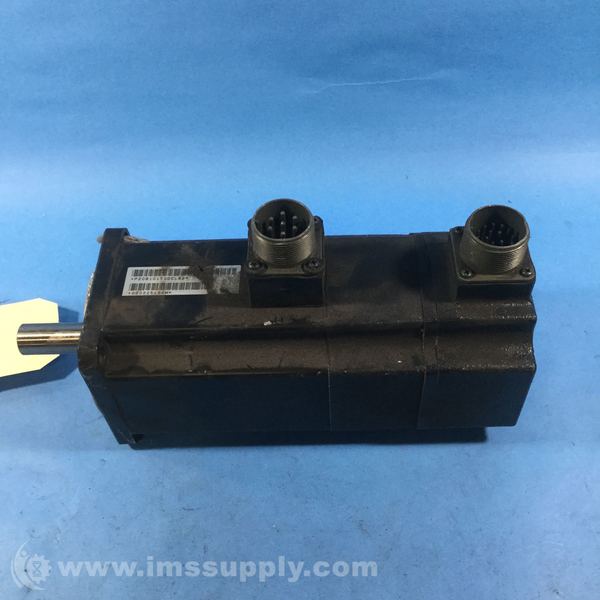

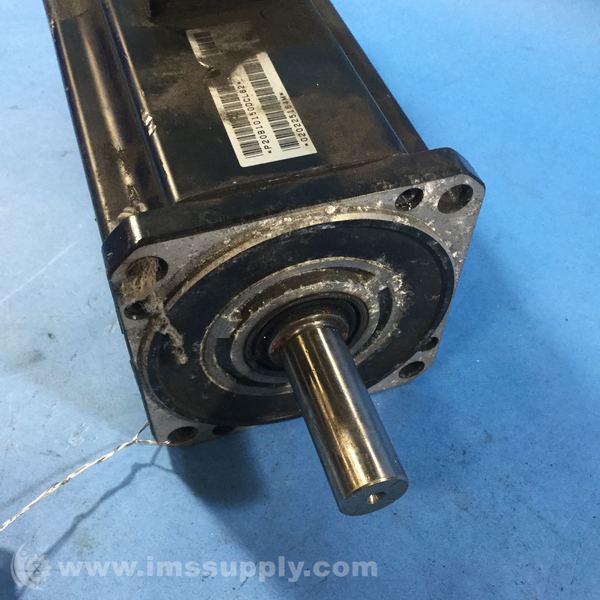

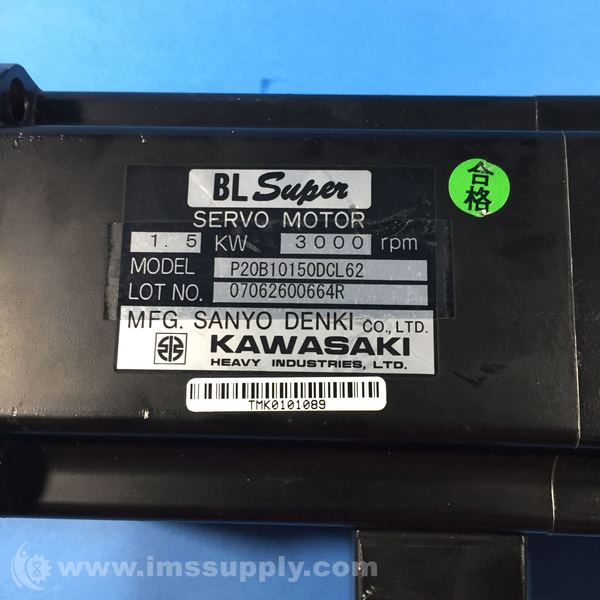

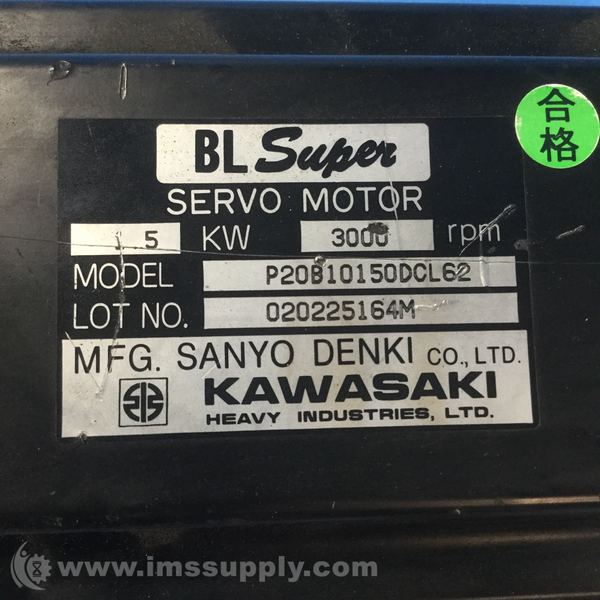

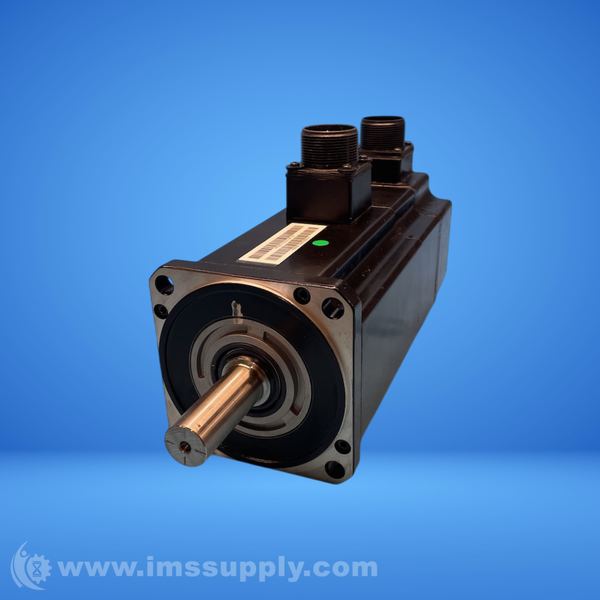

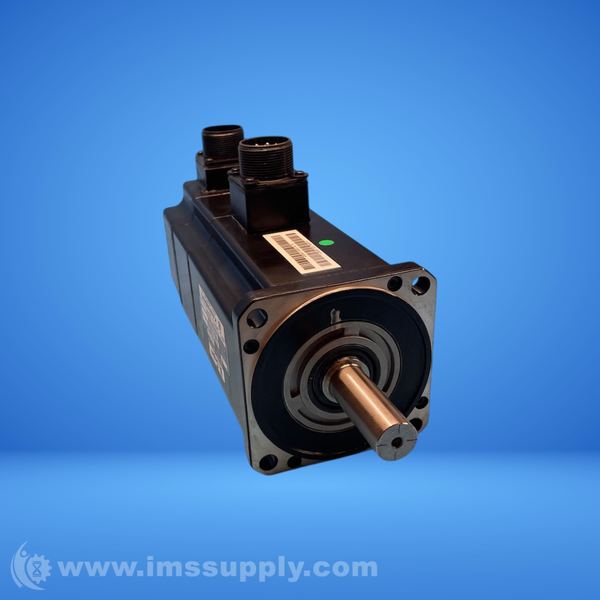

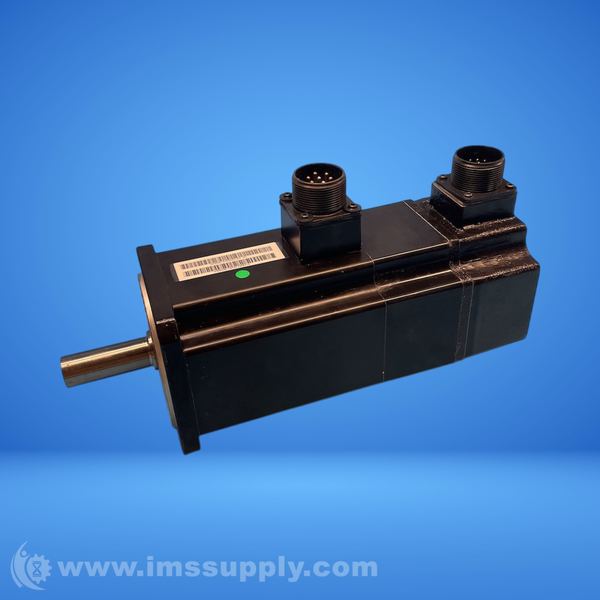

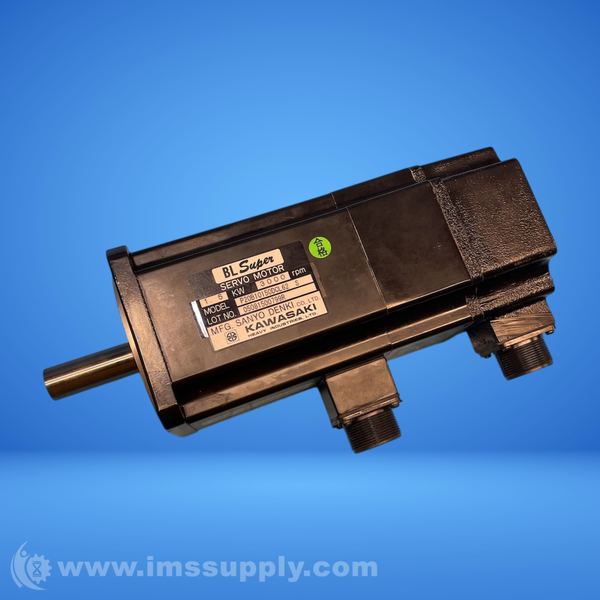

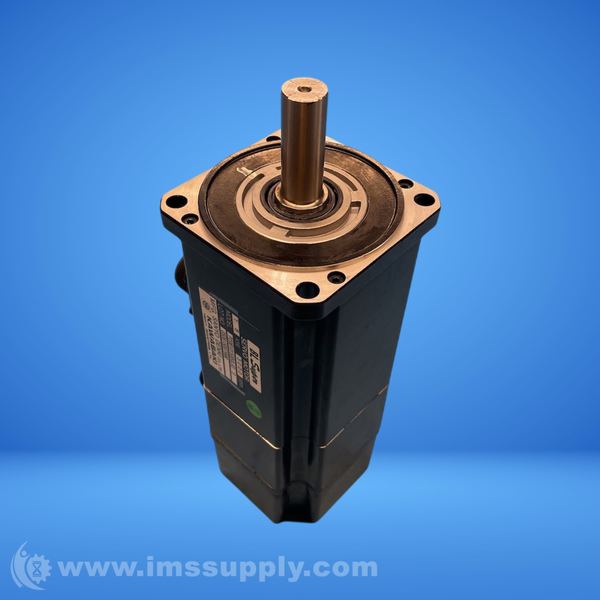

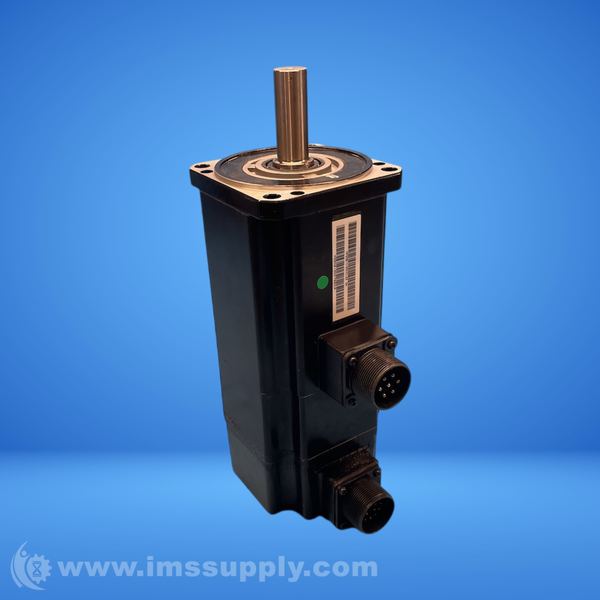

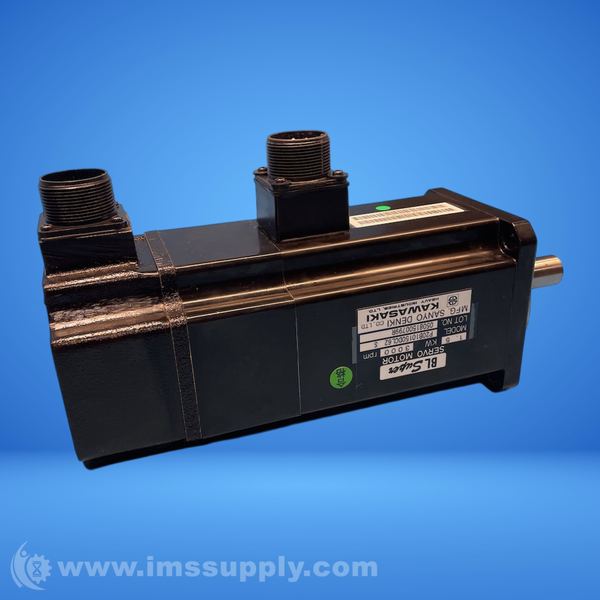

SANYO DENKI P20B10150DCL62 BL SUPER SERVO MOTOR
Quick Overview
Manufactured By: SANYO DENKI
Manufacturer Part Number: P20B10150DCL62
IMS Product Code: 1790302
Packaging: Sold Individually
Description:
Sanyo Denki P20B10150DCL62 BL Super Servo Motor
1.5 kW servo motor with 3000 min-1 rated rotating speed.
Specifications
- Brake Excitation Voltage: 90 V (optional 24 V)
- Brake Holding Torque: 7.84 N·m
- Continuous Stall Torque: 4.90 N·m
- Induced Voltage Constant: 22.6 mV/min-1
- Instantaneous Maximum Stall Torque: 14.7 N·m
- Maximum Rotating Speed: 4,500 min-1
- Motor Operating Conditions: Temperature: 0 to 40°C, Humidity: 90% or less (non-condensing)
- Phase Armature Resistance: 0.42 O
- Rated Armature Current: 8.4 Arms
- Rated Output Power: 1.5 kW
- Rated Power Rate: 117 kW/S
- Rated Rotating Speed: 3,000 min-1
- Rated Torque: 4.79 N·m
- Rotor Inertia (incremental Detector): 2.04×10^-4 kg·m2
- Torque Constant: 0.65 N·m/Arms
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 30 minutes.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 30 minutes.
