SANYO DENKI P60B18350HCAT4 BL SERVO MOTOR
Quick Overview
Manufactured By: SANYO DENKI
Manufacturer Part Number: P60B18350HCAT4
IMS Product Code: 1790250
Packaging: Sold Individually
Description:

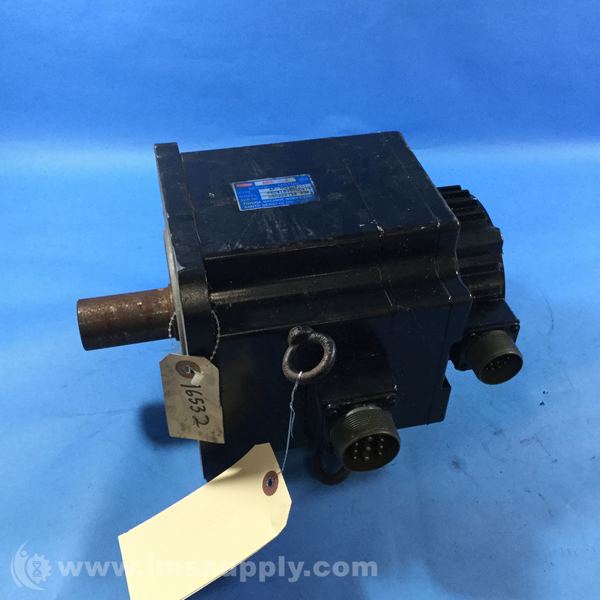

Sanyo Denki P60B18350HCAT4 BL Servo Motor
The P60B18350HCAT4 is a BL servo motor delivering 3.5 kW output and 13.4 Nm continuous stall torque. Manufactured by Sanyo Denki as part of the P6 Super BL Servo Motors series.
Specifications
- Applicable Ambient Temperature: 0 to +40°C, storage -20 to +65°C
- Continuous Stall Armature Current: 17.7 Arms
- Continuous Stall Torque: 13.4 Nm
- Induced Voltage Constant: 34.1 mV/min-1
- Instantaneous Max Armature Current: 31.7 Arms
- Instantaneous Max Stall Torque: 31.7 Nm
- Protection Rating: IP67
- Rated Armature Current: 13.6 Arms
- Rated Output: 3.5 kW
- Rated Speed: 3,000 min-1
- Rated Torque: 11.8 Nm
- Rotor Inertia: 34.1×10-4 kg·m²
- Torque Constant: 0.89 Nm/Arms
- Weight: 17.7 kg (approximate)
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 30 minutes.
